Lincoln Electric ED030695 MIG Wire 0.045" – 500 lb

SKU: ED030695
$3,076.86 $3,680.00

Financing Options

•
Loading Affirm Estimate…
•
Lease-To-Own From $140/mo — 24-Mo Term, No Hard Credit Check
Lincoln Elite Dealer
Free Shipping
Lowest Price
SuperGlide® S6 from Lincoln Electric is a premium bare, mild steel MIG wire best for welding on metals with a medium to high presence of millscale.
AWS / Classification: ER70S-6
Overview

Lincoln's premium bare, mild steel MIG wire, SuperGlide S6 0.045 is an excellent choice for welding on metals with a medium to high presence of millscale.

Features
  • Deoxidizers tolerate light mill scale
  • Microguard® Ultra provides superior feeding and arc stability
  • Bare wire reduces copper fumes
  • Supports short-circuiting, globular, axial spray and pulsed spray transfer
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.18ER70S-6
CWB CSA W48B-G 49A 3 C1 S6 (B-G 49A 3 C G6)
Classification Shielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F)
ER70S-6 Requirement 100% CO2DC+400 (58) min.480 (70) min.22 min.27 (20) min.
Typical Result, As-welded 100% CO2DC+470 (68)530-580 (77-84)2656-112 (42-83)
Classification %C%Cr%Mn%Mo%Ni%P%S%Si%V%Total Cu
ER70S-6 Requirement 0.06 - 0.150.15 max.1.40 - 1.850.15 max.0.15 max.0.025 max.0.035 max.0.80 - 1.150.03 max.0.50 max.
Typical Result 0.07-0.080.021.41-1.490.01 max.0.010.0060.0070.80-0.900.003 max.0.02
Diameter Transfer ModeShielding GasPolarityCTWD, mm (in.)⁽¹⁾Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsMelt-off Rate, kg/hr (lb/hr)
0.035 in (0.9 mm) Short Circuit Transfer ⁽²⁾100% CO2 DC+9-12 (3/8-1/2)2.5 (100)18800.7 (1.6)
0.035 in (0.9 mm) Short Circuit Transfer ⁽²⁾100% CO2 DC+9-12 (3/8-1/2)3.8 (150)191201.1 (2.4)
0.035 in (0.9 mm) Short Circuit Transfer ⁽²⁾100% CO2 DC+9-12 (3/8-1/2)6.4 (250)221751.8 (4.0)
0.035 in (0.9 mm) Spray Transfer90% Ar / 10% CO2DC+12-19 (1/2-3/4)9.5 (375)231952.7 (6.0)
0.035 in (0.9 mm) Spray Transfer90% Ar / 10% CO2DC+12-19 (1/2-3/4)12.7 (500)292303.6 (8.0)
0.035 in (0.9 mm) Spray Transfer90% Ar / 10% CO2DC+12-19 (1/2-3/4)15.2 (600)302754.4 (9.6)
0.045 in (1.1 mm) Short Circuit Transfer ⁽²⁾100% CO2 DC+12-19 (1/2-3/4)3.2 (125)191451.5 (3.4)
0.045 in (1.1 mm) Short Circuit Transfer ⁽²⁾100% CO2 DC+12-19 (1/2-3/4)3.8 (150)201651.8 (4.0)
0.045 in (1.1 mm) Short Circuit Transfer ⁽²⁾100% CO2 DC+12-19 (1/2-3/4)5.1 (200)212002.4 (5.4)
0.045 in (1.1 mm) Spray Transfer90% Ar / 10% CO2DC+12-19 (1/2-3/4)8.9 (350)272854.2 (9.2)
0.045 in (1.1 mm) Spray Transfer90% Ar / 10% CO2DC+12-19 (1/2-3/4)12.1 (475)303355.7 (12.5)
0.045 in (1.1 mm) Spray Transfer90% Ar / 10% CO2DC+12-19 (1/2-3/4)12.7 (500)303406.0 (13.2)
Note
⁽¹⁾ CTWD (Contact Tip to Work Distance). Subtract 1/4 in. (6.4 mm) to calculate Electrical Stickout.
⁽²⁾ Procedures in these areas are procedures for short circuiting mode using 100% CO2. When using 75% Argon, 25% CO2 for short circuit transfer, reduce voltage by 1 to 2 volts.
LECO Diameter 0.045 in (1.1 mm)

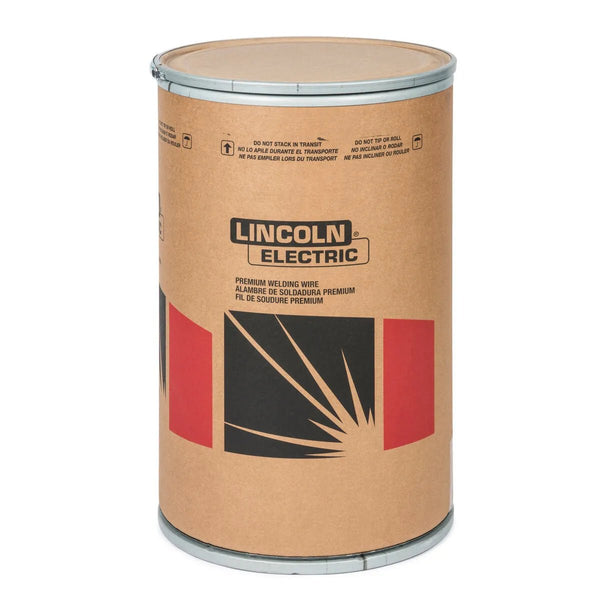

LECO Package 500 lb Accu-Trak® Drum
Diameter (in) 0.045
Includes
  • (1) 500 lb Accu-Trak® Drum
