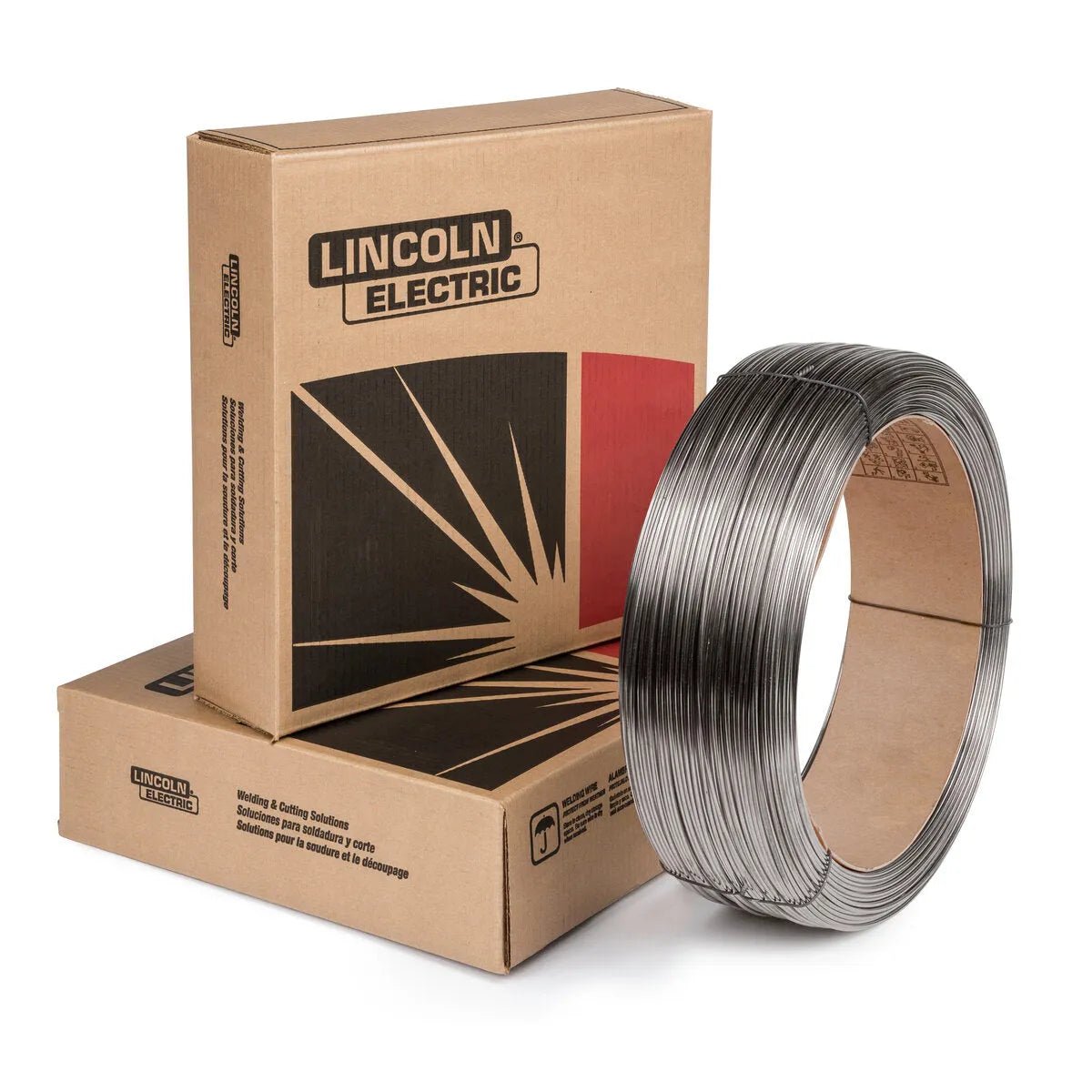

Lincoln Electric — Lincoln ED012186 Innershield NR-152 Flux-Cored (FCAW-S) Welding Wire, 0.068 in, 50 lb Coil
Innershield® NR®-152 from Lincoln Electric is designed for high speed welding of specialty coated steels.
Specifications
- CONFORMANCES: SPECIFICATION, CLASSIFICATION
- AWS: AWS A5.20, E71T-14
- AWS: AWS A5.36, E71T14S
- Classification: Polarity, Transverse Tensile Strength, MPa (ksi), Longitudinal Face Bend
- E71T-14 Requirement: DC-, 480 (70) min., No opening in excess of 1/8 inch
- E71T14S Requirement: DC-, 480 (70) min., No opening in excess of 1/8 inch
- Typical Result, As-welded: DC-, 530-570 (76-83), Passed
- Classification: %Al, %C, %Mn, %P, %S, %Si
- Typical Result: 2.0-3.9, 0.34, 1.13, 0.016, 0.003, 0.27
- Diameter: Polarity, CTWD, mm (in.), Wire Feed Speed, m/min (in/min), Voltage, volts, Approx. Current, amps, Melt-off Rate, kg/hr (lb/hr), Deposition Rate, kg/hr (lb/hr), Efficiency, %
- 1/16 in (1.6 mm): DC-, 16 (5/8), 0.8 (30), 13-14, 90, 0.5 (1.3), 0.5 (1.2), 92
- 1/16 in (1.6 mm): DC-, 16 (5/8), 1.0 (40), 14-15, 115, 0.8 (1.8), 0.7 (1.6), 88
- 1/16 in (1.6 mm): DC-, 16 (5/8), 1.3 (50), 15-16, 140, 0.9 (2.2), 0.9 (2.0), 90
- 1/16 in (1.6 mm): DC-, 16 (5/8), 1.8 (70), 16-17, 185, 1.4 (3.1), 1.3 (2.8), 90
- 1/16 in (1.6 mm): DC-, 16 (5/8), 2.8 (110), 19-20, 265, 2.1 (4.8), 2.0 (4.4), 91
- 0.068 in (1.7 mm): DC-, 19 (3/4), 0.8 (30), 13-14, 68, 0.7 (1.6), 0.6 (1.4), 87
- 0.068 in (1.7 mm): DC-, 19 (3/4), 1.0 (40), 13-14, 95, 0.9 (2.2), 0.9 (1.9), 86
- 0.068 in (1.7 mm): DC-, 19 (3/4), 1.3 (50), 14-15, 120, 1.2 (2.7), 1.1 (2.4), 88
- 0.068 in (1.7 mm): DC-, 19 (3/4), 1.5 (60), 15-16, 145, 1.4 (3.3), 1.3 (2.9), 87
- 0.068 in (1.7 mm): DC-, 19 (3/4), 2.0 (80), 16-17, 190, 1.9 (4.4), 1.8 (3.9), 88
- 0.068 in (1.7 mm): DC-, 19 (3/4), 2.8 (110), 20-21, 240, 2.7 (6.0), 2.4 (5.4), 90
- LECO Diameter: 0.068 in (1.7 mm)
- LECO Package: 50 lb Coil
- Diameter (in): 0.068
- Part number: ED012186
- UPC/EAN: 0015082026213
What's in the box
- (1) 50 lb Coil
Compatibility & sizing
- Lincoln category: Filler Metals - Self-Shielded Flux-Cored
- Compatible families: Innershield
- Electrode type: Flux-Core Self-Shielded
- Available diameters: 0.068
Why pros choose this
Solid MIG (GMAW) wire feeds continuously through the gun, which keeps the arc stable and lets the operator focus on travel and angle. Wire chemistry must match the base metal, and shielding gas must match the wire type, per AWS A5 classifications.
From the manufacturer
Innershield NR-152 0.068 inch welding wire is designed for high speed welding of specialty coated steels. Recommended for single pass welding on material thicknesses from 0.8 to 4.8 mm (0.030 to 3/16 in).
Features
- Designed for high speed welding of specially coated steels
- Soft, consistent arc
- Porosity resistant
- Excellent overlapping capabilities
- Ideal for robotic applications
- Warning: NR-5 is NOT recommended for welding multiple passes
- Notes: The preferred drag angle is 15°, however, NR-152 is capable of welding at zero drag angle, facilitating easy fixturing in automatic applications
Typical Applications
- Single pass welding on thicknesses from 0.8 mm - 4.8 mm (0.030 - 3/16 in)
- Spot or short intermittent welds
- Continuous welding on galvanized or zinc coated carbon steel
- Automotive
- Transportation
Welding Positions
- All
