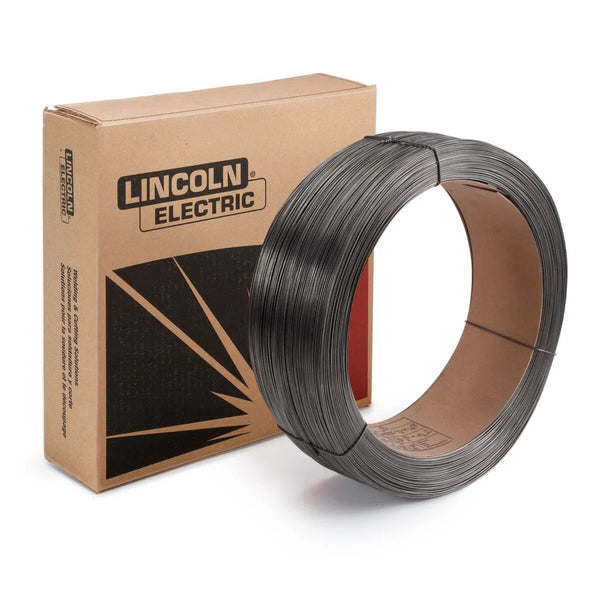

Lincoln Electric — Lincoln ED015266 Lincore 4130 Metal-Cored Submerged Arc (SAW) Welding Wire, 1/8 in, 50 lb Coil
Lincore® 4130 Metal-Cored Submerged Arc Wire for general build-up, Used on mining components such as cable drums, sheaves, gears and shafts (Roll Rebuilding, Build Up).
Specifications
- Flux: Classification, Hardness Rockwell C
- Lincolnweld® 801®: Typical Result, 17-21
- Flux: Classification, %C, %Cr, %Mn, %Mo, %Si
- Lincolnweld® 801®: Typical Result, 0.12, 0.8, 1.1, 0.2, 0.3
- Diameter: Polarity, Wire Feed Speed, m/min (in/min), Voltage, volts, Approx. Current, amps
- 3/32 in (2.4 mm): DC+, 1.7 (65), 24, 300
- 3/32 in (2.4 mm): DC+, 3.0 (120), 28, 410
- 3/32 in (2.4 mm): DC+, 4.4 (175), 31, 520
- 1/8 in (3.2 mm): DC+, 1.5 (60), 26, 350
- 1/8 in (3.2 mm): DC+, 2.5 (100), 28, 465
- 1/8 in (3.2 mm): DC+, 3.6 (140), 30, 590
- LECO Diameter: 1/8 in (3.2 mm)
- LECO Package: 50 lb Coil
- Diameter (in): 1/8
- Part number: ED015266
- UPC/EAN: 0015082033594
What's in the box
- (1) 50 lb Coil
Compatibility & sizing
- Compatible families: Lincore
- Available diameters: 1/8
Why pros choose this
Solid MIG (GMAW) wire feeds continuously through the gun, which keeps the arc stable and lets the operator focus on travel and angle. Wire chemistry must match the base metal, and shielding gas must match the wire type, per AWS A5 classifications.
Warranty
1 Year
From the manufacturer
LINCORE® 4130 1/8 inch welding wire is ideal for rebuilding worn parts to near final dimensions before applying final hardfacing layer with recommended Lincoln weld® 801, 802 and Lincoln weld 880 standard flux for semiautomatic operations.
Features
- Metal-cored wire for general build-up
- Can be flame hardened to 38 Rockwell C (RC)
- Used on mining components such as cable drums, sheaves, gears and shafts
Typical Applications
- Steel Industry
- Rolls
Welding Positions
- Flat/Horizontal
