What is the AWS classification of the Lincoln SA606125726 Techalloy 606 Submerged Arc (SAW) Wire, 1/8 in, 55 lb Coil?

The Lincoln SA606125726 Techalloy 606 Submerged Arc (SAW) Wire, 1/8 in, 55 lb Coil carries AWS ERNiCr-3 classification. In SAW, the wire/flux combination determines the weld deposit chemistry and mechanical properties — the wire class and flux class are always specified together. Always verify the flux is approved for use with this wire in your Welding Procedure Specification (WPS).

Lincoln SA606125726 Techalloy 606 Submerged Arc (SAW) Wire, 1/8 in, 55 lb Coil

Q: What spool or coil size is the Lincoln SA606125726 Techalloy 606 Submerged Arc (SAW) Wire, 1/8 in, 55 lb Coil available in?

SAW wire is supplied in various coil weights from 25 lb coils to 600 lb reels, depending on the wire diameter and supplier. Heavy production SAW systems use large coils (300–600 lb) to minimize wire change-over time. Ensure your SAW wire feeder head is configured for the specific coil diameter and weight of the product ordered.

Q: How should I store the Lincoln SA606125726 Techalloy 606 Submerged Arc (SAW) Wire, 1/8 in, 55 lb Coil to maintain weld quality?

Store SAW wire in a clean, dry environment. Surface rust on SAW wire can introduce hydrogen into the weld deposit, increasing the risk of porosity and cold cracking in susceptible base materials. Lightly rusted wire can sometimes be cleaned with a dry cloth, but wire with heavy surface oxidation should be discarded. Keep wire coils sealed in their original packaging until ready for use and store at controlled room temperature with low humidity.

SKU: SA606125726

$21,397.16

Financing Options

•

or as low as …/mo with.

•

Loading Affirm Estimate…

Lincoln Elite Dealer

Free Shipping

Lowest Price

Used for dissimilar welding applications between various nickel alloys and stainless or carbon steels, as well as for overlay

AWS / Classification: AWS ERNiCr-3

Overview

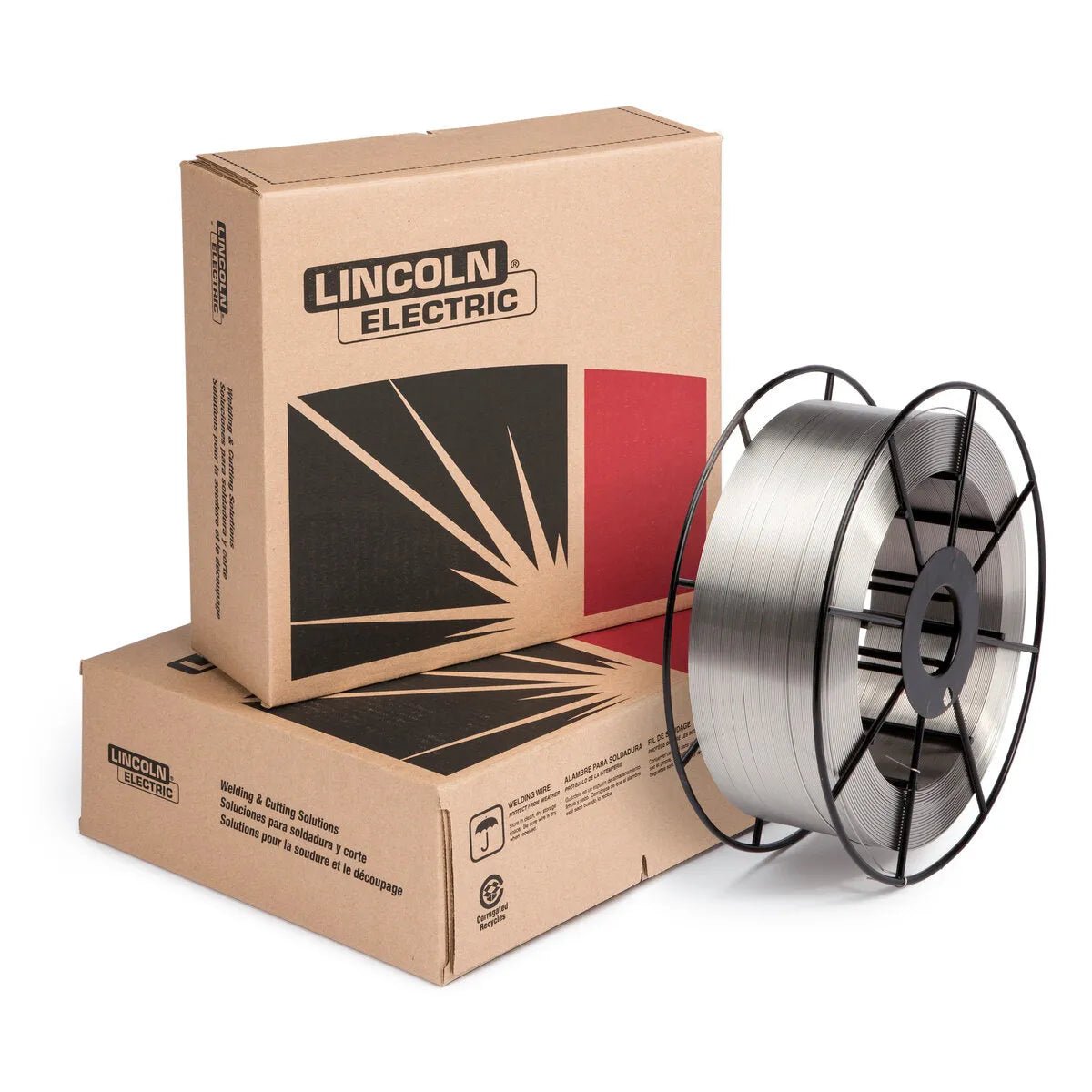

Lincoln SA606125726 Techalloy 606 Submerged Arc (SAW) Wire, 1/8 in, 55 lb Coil

TECHALLOY 606 is ideal for applications ranging from cryogenic to high temperatures making this alloy on of the most used in the nickel family, this filler metal can also be used for dissimilar welding applications between various nickel alloys and stainless or carbon steels, as well as for overlay.

Features

• Used for MIG, TIG and SAW welding of base materials such as ASTM B163, B166, B167 and B168 alloys which have UNS Number N06608
• Suitable for applications ranging from cryogenic to high temperatures making this alloy on of the most used in the nickel family
• Q2 Lot Certificate showing actual wire composition available online
•

Specifications

Feature	Value
CONFORMANCES	SPECIFICATIONCLASSIFICATION
AWS	AWS A5.14ERNiCr-3
CWB	CWB AWS A5.14ERNiCr-3
MIL	MIL-E-21562EEN82
Classification	%C%Cr%Cu%Fe%Mn%P%S%Si%Ti%Nb+Ta%Ni+Co
ERNiCr-3 Requirement	0.10 max.18.0 - 22.00.50 max.3.0 max.2.5 - 3.50.03 max.0.015 max.0.50 max.0.75 max.2.0 - 3.067.0 min.
Typical Result	0.0419.90.021.22.90.003 max.0.003 max.0.100.352.473.2
Diameter	PolarityVoltage, voltsApprox. Current, amps
3/32" (2.4 mm)	DC+28-30275-350
1/8" (3.2 mm)	DC+29-31350-450
Lincolnweld® P2000™
Lincolnweld® P2000™
LECO Diameter	1/8 in (3.2 mm)
LECO Package	55 lb Coil
Diameter (in)	1/8

Includes

(1) 55 lb Coil
