What consumables (tips, nozzles) fit the Lincoln K126 Classic Innershield FCAW-S Welding Gun, 350 A, 0.062-3/32 in, 10 ft K126-1?

For the Lincoln K126 Classic Innershield FCAW-S Welding Gun, 350 A, 0.062-3/32 in, 10 ft K126-1, use replacement contact tips matched to your wire diameter (e.g., .035 in tips for .035 in wire). Lincoln Magnum series guns use Magnum PRO-compatible consumables. MK Products guns use MK-specific consumables. Contact tip thread pitch (M6, M8, etc.) must match the diffuser — do not mix brands unless confirmed cross-compatible.

When and how should I replace the liner in the Lincoln K126 Classic Innershield FCAW-S Welding Gun, 350 A, 0.062-3/32 in, 10 ft K126-1?

Liner replacement is one of the most impactful preventive maintenance actions for MIG guns. Liners should be replaced when wire feeding becomes erratic, when you see birdnesting at the drive rolls, or approximately every 3–6 months in production environments. Always replace the liner when switching wire diameters. Cut the liner to the gun manufacturer's specified length — a liner that is too long or too short causes feed problems.

How do I reduce spatter buildup and extend nozzle life on the Lincoln K126 Classic Innershield FCAW-S Welding Gun, 350 A, 0.062-3/32 in, 10 ft K126-1?

Anti-spatter compound (spray or dip) applied to the nozzle interior before welding significantly extends nozzle life and reduces downtime for cleaning. Replace the nozzle when spatter buildup causes turbulent shielding gas flow — visible porosity or rough bead surface is a sign the nozzle is restricting gas coverage. For flush nozzles vs. recessed nozzles: flush nozzles provide better gas coverage for open joints; recessed nozzles resist spatter buildup on the contact tip in spray transfer.

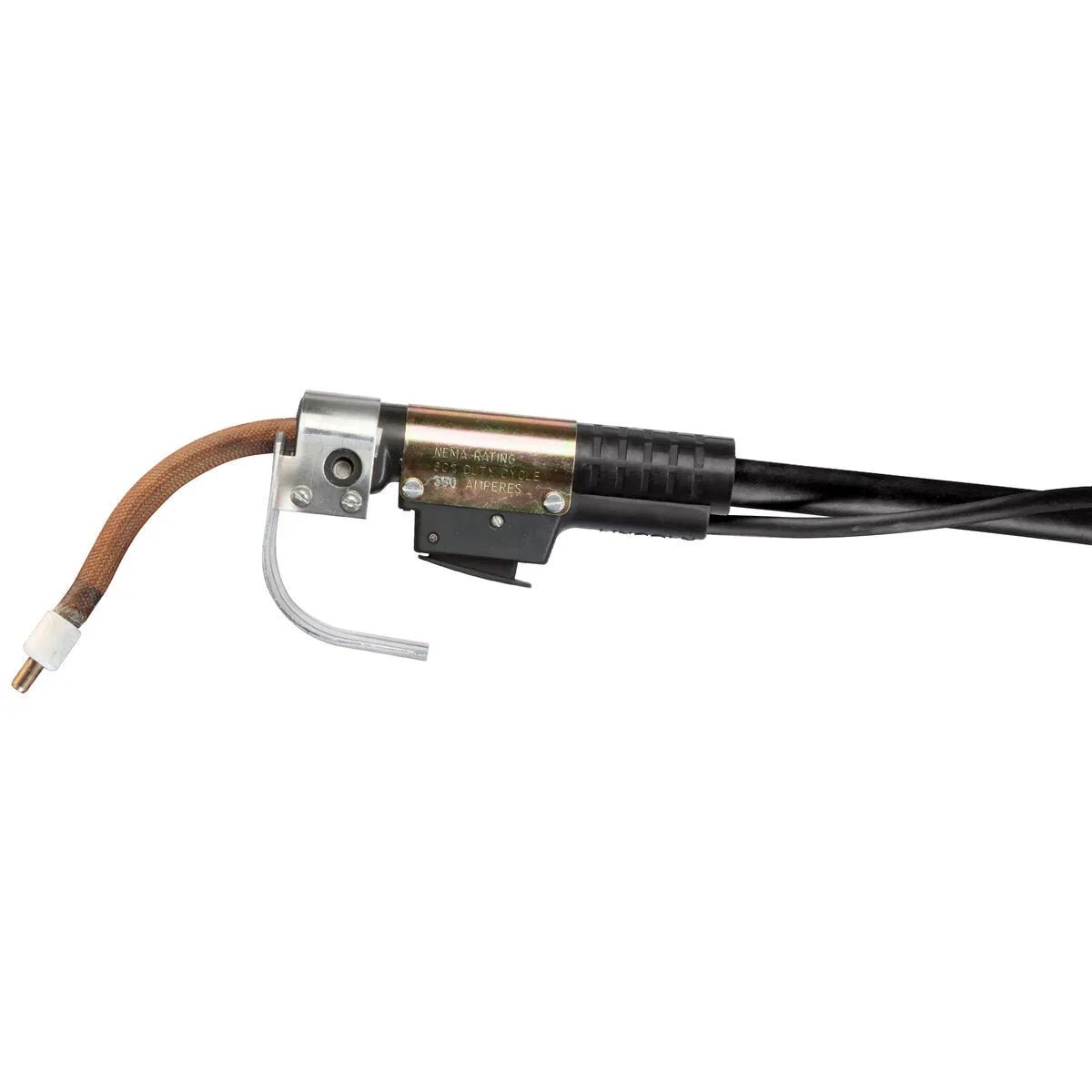

Lincoln K126 Classic Innershield FCAW-S Welding Gun, 350 A, 0.062-3/32 in, 10 ft K126-1

Q: What amperage rating does the Lincoln K126 Classic Innershield FCAW-S Welding Gun, 350 A, 0.062-3/32 in, 10 ft K126-1 support?

MIG gun amperage ratings indicate the maximum continuous welding amperage the gun can handle without overheating. Match the gun's rating to your power source's output — using a gun rated below your welding amperage will cause premature cable and liner failure. Always select a gun rated at or above your maximum operating amperage.

Q: What warranty does the Lincoln K126 Classic Innershield FCAW-S Welding Gun, 350 A, 0.062-3/32 in, 10 ft K126-1 carry?

The Lincoln K126 Classic Innershield FCAW-S Welding Gun, 350 A, 0.062-3/32 in, 10 ft K126-1 is backed by a 90 Days warranty from Lincoln Electric covering manufacturing defects. Consumables (contact tips, nozzles, liners) are wear items and are not covered under warranty. Retain proof of purchase for all warranty service requests.

SKU: K126-1

$884.51 ~~$1,003.56~~

Lincoln Elite Dealer

Free Shipping

Lowest Price

K126 Classic Innershield Welding Gun with a 350A 60% duty cycle for use with 0.062-3/32 in. (1.6-2.4 mm) wire diameters with a 62⁰ gun tube and 10 ft cable length.

Overview

Lincoln K126 Classic Innershield FCAW-S Welding Gun, 350 A, 0.062-3/32 in, 10 ft K126-1

Magnum Classic Self-Shielded Semiautomatic Guns Magnum self-shielded flux-cored welding (FCAW-S) guns are rugged and reliable, while remaining lightweight, flexible and maneuverable. A number of models are offered for amperage ratings from 350 to 600 amps. Lincoln Magnum guns for Innershield welding are a great choice.

Features

Heavy-duty gun trigger switch For positive electrical contact and long life.
Reinforced rubber jacket Adds strength and long life to cable.
Alternate gun tubes Available for select guns to reach welds with limited accessibility.
All guns are rated at 60% duty cycle Meet NEMA specification EW3.
Compatible with LN-7, LN-8, LN-9, and LN-25.

Specifications

Feature	Value
Typical Applications	Construction Construction & Field Erection Structural Fabrication Structural Welding
Processes	Flux-Cored (FCAW) Flux-Cored Self-Shielded (FCAW-S)

Includes

(1) Self-Shielded Semiautomatic Gun
