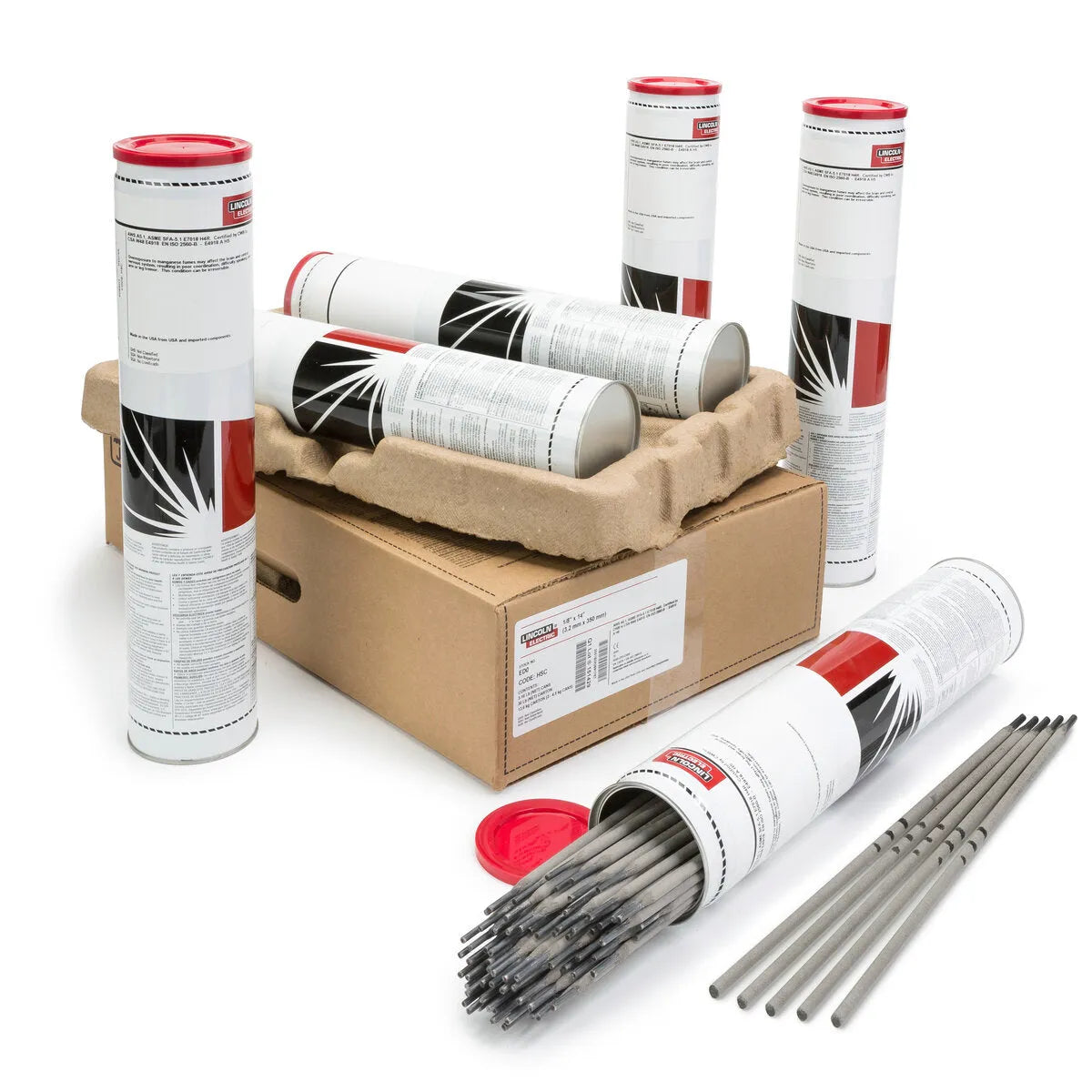

Lincoln Pipeliner LH-D100 Stick Electrode - 1/8 x 14 in - 30 lb Carton (3 x 10 lb Easy Open Cans) - ED032632

SKU: ED032632
$465.30
Lincoln Elite Dealer
Free Shipping
Lowest Price
Low Alloy, Low Hydrogen, Pipe • AWS E10045-P2 H4R
AWS / Classification: E10045-P2 H4R
Overview
Lincoln ED032632 Pipeliner LH-D100 Stick (SMAW) Electrode, 1/8x14 in, (3) 10 lb Easy Open Can
Low alloy stick electrode designed for fill and cap pass welding of up to X90 grade pipe

Features

• Q2 Lot- Control and Tested Lot certificate available online
• Durable coating
• 80% higher productivity over traditional vertical-up pipe welding
•
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.5E10045-P2 H4R
CWB CWB AWS A5.5E6945-P2-H4R (E10045-P2-H4R)
Classification Yield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F)Charpy V-Notch, J (ft-lbs) @ -40°C (-40°F)Hardness Rockwell B
E10045-P2 H4R Requirement 600 (87) min.690 (100) min.16 min.27 (20) min.
Typical Result, As-welded 650-700 (94-102)710-750 (103-108)23-2677-114 (57-84)42-85 (31-62)96-99
Classification %B%C%Cr%Mn%Mo%Ni%P%S%Si%VDiffusible Hydrogen, mL/100g Weld Metal1800F H2O - As received1800F H2O - After 9 hrs at 80F/80%RH
E10045-P2 H4R Requirement 0.12 max.0.20 max.0.90 - 1.700.50 max.1.00 max.0.03 max.0.03 max.0.80 max.0.05 max.4 max.0.15 max.0.4 max.
Typical Result 0.004-0.00510.05-0.060.04-0.061.44-1.670.40-0.460.78-0.890.010.010.42-0.560.012-40.03-0.130.2-0.4
Diameter PolarityCurrent, Amps
3.2 mm (1/8 in) DC+120-170
4.0 mm (5/32 in) DC+170-250
4.5 mm (11/64 in) DC+200-300
Note
NOTE: This product contains micro-alloying elements. Additional information available on request.
LECO Diameter 3.2 x 350 mm (1/8 x 14 in)
LECO Package (3) 10 lb Easy Open Can
Diameter (in) 1/8
Length (in) 14
Includes
  • (3) 10 lb Easy Open Can
