Lincoln Electric Outershield ED030360 Flux-Core Wire 3/32" – 500 lb

SKU: ED030360
$3,061.96 $3,415.00

Financing Options

•
or as low as …/mo with.
•
Loading Affirm Estimate…
Lincoln Elite Dealer
Free Shipping
Lowest Price
Outershield® XLH-70 has low diffusible hydrogen levels and the best temperature impact properties of any Lincoln Electric E70T-1 electrodes.
AWS / Classification: E70T-9C-H8, E70T1-C1A2-CS1-H8
Overview

Provides best in class wire feeding performance with controlled H8 diffusible hydrogen levels. It is an excellent choice for structural fabrication and heavy equipment applications in the flat and horizontal positions.

Features

• Meets AWS D1.8 seismic lot waiver requirements for critical welds H8 diffusible hydrogen levels controlled for high resistance to hydrogen induced

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.20 E70T-1C-H8, E70T-9C-H8
AWS AWS A5.36 E70T1-C1A2-CS1-H8
ABS ABS - Part 2 3YSA H5
Classification Shielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -20°C (0°F)Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F)
E70T-1C-H8 Requirement 100% CO2DC+400 (58) min.480-660 (70-95)22 min.27 (20) min.
E70T-9C-H8 Requirement 100% CO2DC+400 (58) min.480-660 (70-95)22 min.27 (20) min.
E70T1-C1A2-CS1-H8 Requirement 100% CO2DC+400 (58) min.480-660 (70-95)22 min.27 (20) min.
Typical Result, As-welded 100% CO2DC+500 (72)580-630 (84-91)2465-126 (48-93)49-156 (36-115)
Classification Shielding GasPolarity%C%Mn%P%S%SiDiffusible Hydrogen, mL/100g Weld Metal
E70T-1C-H8 Requirement 100% CO2DC+0.12 max.1.75 max.0.03 max.0.03 max.0.90 max.8.0 max.
E70T-9C-H8 Requirement 100% CO2DC+0.12 max.1.75 max.0.03 max.0.03 max.0.90 max.8.0 max.
E70T1-C1A2-CS1-H8 Requirement 100% CO2DC+0.12 max.1.75 max.0.030 max.0.030 max.0.90 max.8 max.
Typical Result 100% CO2DC+0.06-0.081.43-1.690.014 max.0.014 max.0.53-0.643.8-7.5
Diameter Shielding GasPolarityCTWD, mm (in.)⁽¹⁾Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsMelt-off Rate, kg/hr (lb/hr)Deposition Rate, kg/hr (lb/hr)Efficiency, %
3/32 in (2.4 mm) 100% CO2DC+32 (1-1/4)3.8 (150)23-263456.5 (14.4)5.6 (12.4)86
3/32 in (2.4 mm) 100% CO2DC+32 (1-1/4)5.1 (200)27-304458.7 (19.2)7.6 (16.8)87
3/32 in (2.4 mm) 100% CO2DC+32 (1-1/4)6.4 (250)28-3151010.9 (24.0)9.5 (21.0)87
3/32 in (2.4 mm) 100% CO2DC+32 (1-1/4)7.6 (300)30-3257013.1 (28.8)11.4 (25.2)87
3/32 in (2.4 mm) 100% CO2DC+32 (1-1/4)8.3 (325)31-3360014.2 (31.2)12.4 (27.3)87
Note
⁽¹⁾ To estimate ESO, subtract 1/4 in. (6.0 mm) from CTWD.
LECO Diameter 3/32 in (2.4 mm)

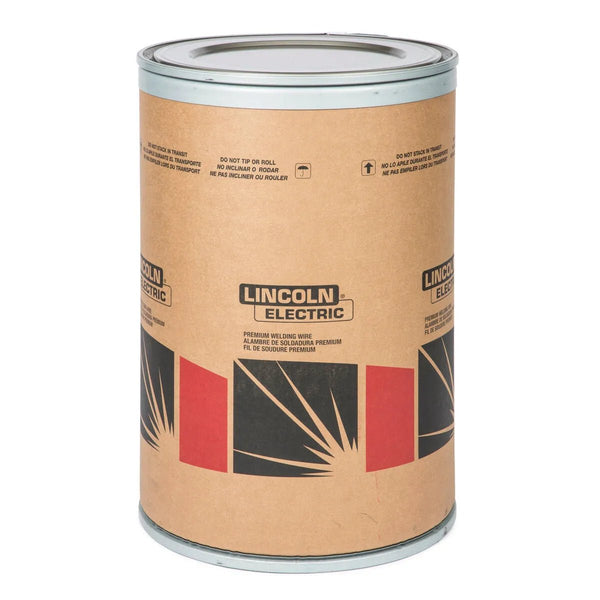

LECO Package 500 lb Speed Feed® Drum
Diameter (in) 3/32
Includes
  • (1) 500 lb Speed Feed® Drum
