What is the AWS classification of the Lincoln SA418093726 Techalloy 418 Submerged Arc (SAW) Wire, 3/32 in, 55 lb Coil?

The Lincoln SA418093726 Techalloy 418 Submerged Arc (SAW) Wire, 3/32 in, 55 lb Coil carries AWS ERNiCu-7 classification. In SAW, the wire/flux combination determines the weld deposit chemistry and mechanical properties — the wire class and flux class are always specified together. Always verify the flux is approved for use with this wire in your Welding Procedure Specification (WPS).

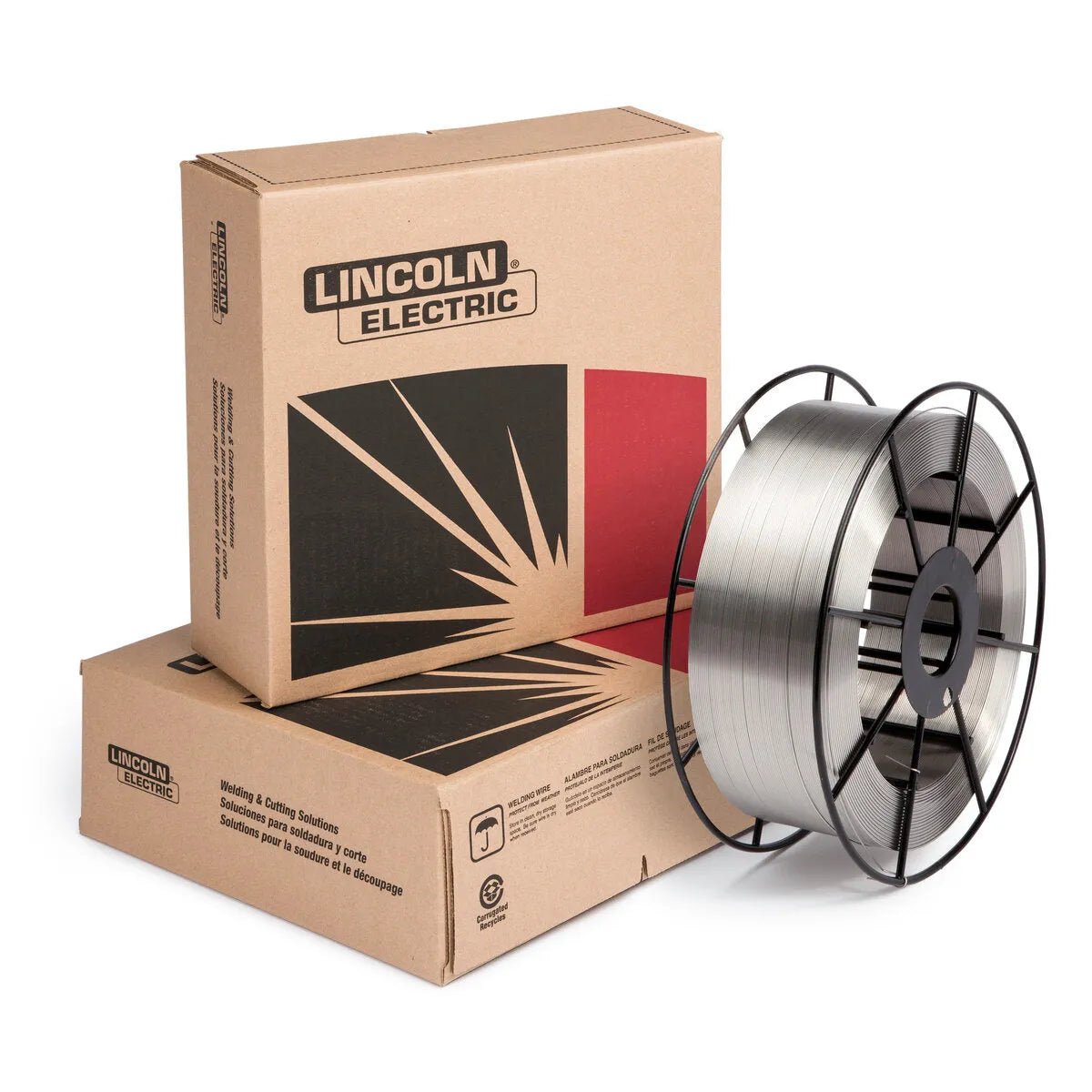

Lincoln SA418093726 Techalloy 418 Submerged Arc (SAW) Wire, 3/32 in, 55 lb Coil

Q: What spool or coil size is the Lincoln SA418093726 Techalloy 418 Submerged Arc (SAW) Wire, 3/32 in, 55 lb Coil available in?

SAW wire is supplied in various coil weights from 25 lb coils to 600 lb reels, depending on the wire diameter and supplier. Heavy production SAW systems use large coils (300–600 lb) to minimize wire change-over time. Ensure your SAW wire feeder head is configured for the specific coil diameter and weight of the product ordered.

Q: How should I store the Lincoln SA418093726 Techalloy 418 Submerged Arc (SAW) Wire, 3/32 in, 55 lb Coil to maintain weld quality?

Store SAW wire in a clean, dry environment. Surface rust on SAW wire can introduce hydrogen into the weld deposit, increasing the risk of porosity and cold cracking in susceptible base materials. Lightly rusted wire can sometimes be cleaned with a dry cloth, but wire with heavy surface oxidation should be discarded. Keep wire coils sealed in their original packaging until ready for use and store at controlled room temperature with low humidity.

SKU: SA418093726

$2,196.48 ~~$2,437.60~~

Financing Options

•

or as low as …/mo with.

•

Loading Affirm Estimate…

Lincoln Elite Dealer

Free Shipping

Lowest Price

Dissimilar welding applications include joining Nickel 200 to copper-nickel alloys

AWS / Classification: AWS ERNiCu-7

Overview

Lincoln SA418093726 Techalloy 418 Submerged Arc (SAW) Wire, 3/32 in, 55 lb Coil

TECHALLOY 418 is ideal for welding applications include joining Nickel 200 to copper nickel alloys and dissimilar metal. Dissimilar welding applications include joining Nickel 200 to coppernickel alloys.

Features

• Used for MIG, TIG and SAW welding of copper alloys
• Dissimilar welding applications include joining Nickel 200 to copper nickel alloys
• Q2 Lot -Certificate showing actual wire composition available online
•

Specifications

Feature	Value
CONFORMANCES	SPECIFICATIONCLASSIFICATION
AWS	AWS A5.14ERNiCu-7
CWB	CWB AWS A5.14ERNiCu-7
MIL	MIL-E-21562EEN60
Classification	%Al%C%Fe%Mn%P%S%Si%Ti%Cu%Ni+Co
ERNiCu-7 Requirement	1.25 max.0.15 max.2.5 max.4.0 max.0.02 max.0.015 max.1.25 max.1.5 - 3.0Remainder62.0 - 69.0
Typical Result	0.180.0527.90.13.50.003 max.0.003 max.0.322.365.8
Flux	DiameterPolarityVoltage, voltsApprox. Current, amps
Lincolnweld® P2000™	3/32" (2.4 mm)DC+28-30275-350
Lincolnweld® P2000™	3/32" (2.4 mm)DC+29-31350-450
LECO Diameter	3/32 in (2.4 mm)
LECO Package	55 lb Coil
Diameter (in)	3/32

Includes

(1) 55 lb Coil
