What is the AWS classification of the Lincoln SA622093726 Techalloy 622 Submerged Arc (SAW) Wire, 3/32 in, 55 lb Basket?

The Lincoln SA622093726 Techalloy 622 Submerged Arc (SAW) Wire, 3/32 in, 55 lb Basket carries AWS ERNiCrMo-10 classification. In SAW, the wire/flux combination determines the weld deposit chemistry and mechanical properties — the wire class and flux class are always specified together. Always verify the flux is approved for use with this wire in your Welding Procedure Specification (WPS).

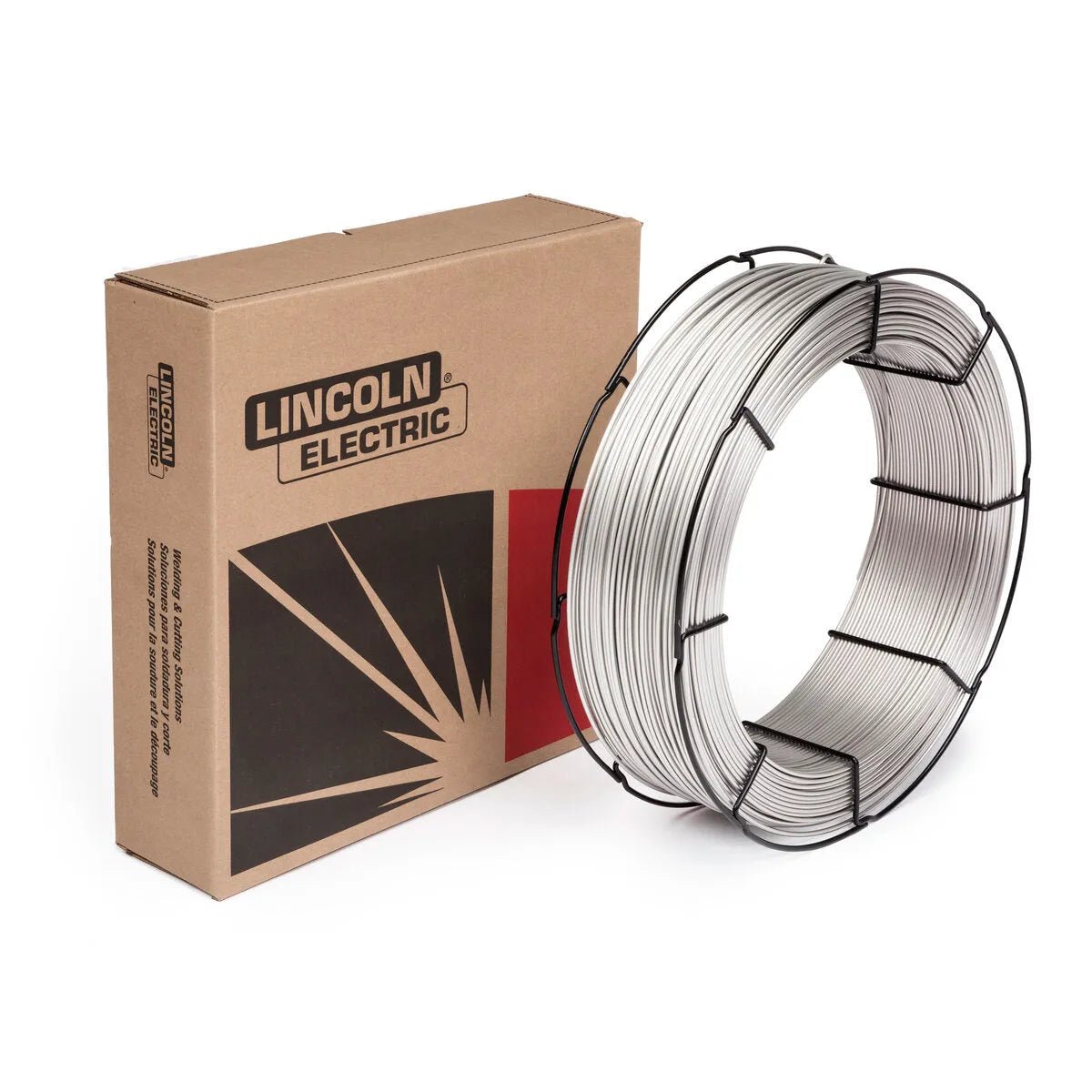

Lincoln SA622093726 Techalloy 622 Submerged Arc (SAW) Wire, 3/32 in, 55 lb Basket

Q: What spool or coil size is the Lincoln SA622093726 Techalloy 622 Submerged Arc (SAW) Wire, 3/32 in, 55 lb Basket available in?

SAW wire is supplied in various coil weights from 25 lb coils to 600 lb reels, depending on the wire diameter and supplier. Heavy production SAW systems use large coils (300–600 lb) to minimize wire change-over time. Ensure your SAW wire feeder head is configured for the specific coil diameter and weight of the product ordered.

Q: How should I store the Lincoln SA622093726 Techalloy 622 Submerged Arc (SAW) Wire, 3/32 in, 55 lb Basket to maintain weld quality?

Store SAW wire in a clean, dry environment. Surface rust on SAW wire can introduce hydrogen into the weld deposit, increasing the risk of porosity and cold cracking in susceptible base materials. Lightly rusted wire can sometimes be cleaned with a dry cloth, but wire with heavy surface oxidation should be discarded. Keep wire coils sealed in their original packaging until ready for use and store at controlled room temperature with low humidity.

SKU: SA622093726

$2,692.07 ~~$3,163.60~~

Financing Options

•

As low as …/mo with.

•

Loading Affirm Estimate…

Lincoln Elite Dealer

Free Shipping

Lowest Price

Excellent corrosion resistance in oxidizing as well as reducing media in a wide variety of chemical process environments

AWS / Classification: AWS ERNiCrMo-10

Overview

Lincoln SA622093726 Techalloy 622 Submerged Arc (SAW) Wire, 3/32 in, 55 lb Basket

TECHALLOY 622 is ideal for excellent corrosion resistance in oxidizing as well as reducing media in a wide variety of chemical process environments, outstanding resistance to stress corrosion cracking, pitting and crevice corrosion.

Features

• Excellent corrosion resistance in oxidizing as well as reducing media in a wide variety of chemical process environments
• Outstanding resistance to stress corrosion cracking, pitting and crevice corrosion
• Q2 Lot Certificate showing actual wire composition available online
•

Specifications

Feature	Value
CONFORMANCES	SPECIFICATIONCLASSIFICATION
AWS	AWS A5.14ERNiCrMo-10
CWB	CWB AWS A5.14ERNiCrMo-10
Classification	%C%Co%Cr%Cu%Fe%Mn%Mo%Ni%P%S%Si%V%W
ERNiCrMo-10 Requirement	0.015 max.2.5 max.20.0 - 22.50.50 max.2.0 - 6.00.50 max.12.5 - 14.5Remainder0.02 max.0.010 max.0.08 max.0.35 max.2.5 - 3.5
Typical Result	0.0060.122.10.074.40.2013.9560.003 max.0.003 max.0.030.013.0
Diameter	PolarityVoltage, voltsApprox. Current, ampsFlux
3/32" (2.4 mm)	DC+28-30275-350Lincolnweld® P2000™
LECO Diameter	3/32 in (2.4 mm)
LECO Package	55 lb Basket
Diameter (in)	3/32

Includes

(1) 55 lb Basket
