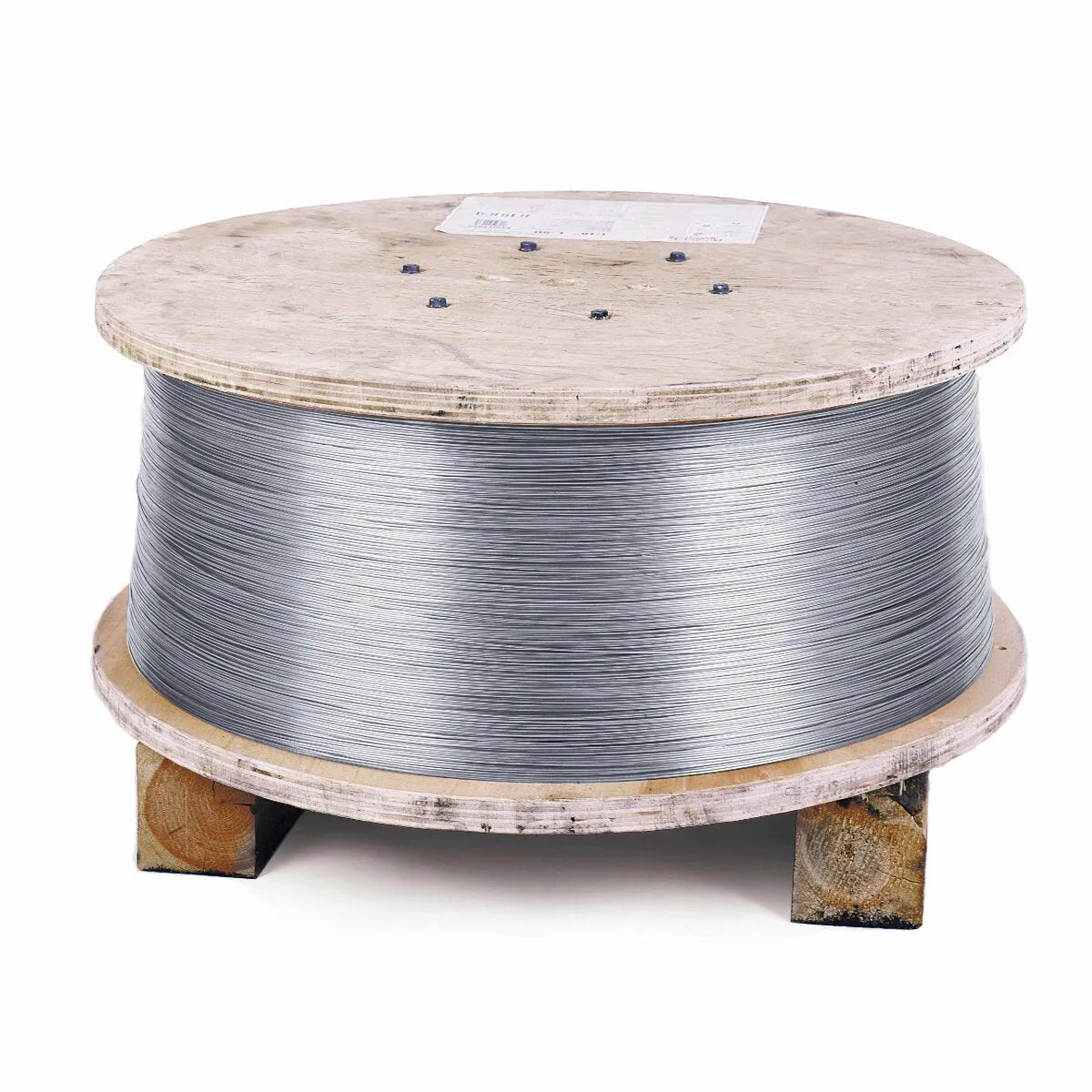

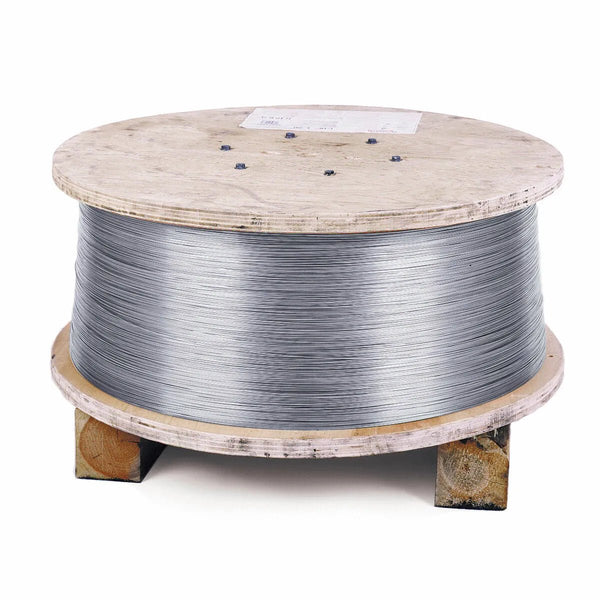

Lincoln Electric Lincolnweld 347 ED035184 3/32" – 500 lb

Q: What process is the Lincoln ED035184 Lincolnweld 347 Submerged Arc (SAW) Wire, 3/32 in, 500 lb Speed Feed Reel designed for?

The Lincoln ED035184 Lincolnweld 347 Submerged Arc (SAW) Wire, 3/32 in, 500 lb Speed Feed Reel is used in Submerged Arc Welding (SAW), a high-deposition welding process where the arc is shielded by a blanket of granular flux rather than shielding gas. SAW is used primarily in the flat and horizontal positions for welding structural plate, pressure vessels, pipelines, ship hulls, and heavy fabrication. It produces deep penetration, high deposition rates, and excellent weld quality with minimal spatter.

Q: What is the AWS classification of the Lincoln ED035184 Lincolnweld 347 Submerged Arc (SAW) Wire, 3/32 in, 500 lb Speed Feed Reel?

The Lincoln ED035184 Lincolnweld 347 Submerged Arc (SAW) Wire, 3/32 in, 500 lb Speed Feed Reel carries AWS ER347 classification. In SAW, the wire/flux combination determines the weld deposit chemistry and mechanical properties — the wire class and flux class are always specified together. Always verify the flux is approved for use with this wire in your Welding Procedure Specification (WPS).

Q: What diameter is the Lincoln ED035184 Lincolnweld 347 Submerged Arc (SAW) Wire, 3/32 in, 500 lb Speed Feed Reel available in?

The Lincoln ED035184 Lincolnweld 347 Submerged Arc (SAW) Wire, 3/32 in, 500 lb Speed Feed Reel is available in 3/32 diameter. SAW wire diameters range from 3/32 in (for narrow-groove and single-pass applications) to 1/4 in or larger (for heavy plate, multi-pass). Larger diameter wire allows higher amperage and deposition rates; smaller diameter wire permits more precise control of heat input for tighter bead geometry or narrower grooves.

Q: What spool or coil size is the Lincoln ED035184 Lincolnweld 347 Submerged Arc (SAW) Wire, 3/32 in, 500 lb Speed Feed Reel available in?

The Lincoln ED035184 Lincolnweld 347 Submerged Arc (SAW) Wire, 3/32 in, 500 lb Speed Feed Reel is available in 500 lb coil/spool sizes. SAW wire is commonly supplied as coils or on large spools (300–600 lb) for automated welding systems. Smaller coils (25–50 lb) suit semi-automatic and lower-volume applications. Use of the correct spool hub adapter for your SAW head is required for large-coil operation.

Q: How should I store the Lincoln ED035184 Lincolnweld 347 Submerged Arc (SAW) Wire, 3/32 in, 500 lb Speed Feed Reel to maintain weld quality?

Store SAW wire in a clean, dry environment. Surface rust on SAW wire can introduce hydrogen into the weld deposit, increasing the risk of porosity and cold cracking in susceptible base materials. Lightly rusted wire can sometimes be cleaned with a dry cloth, but wire with heavy surface oxidation should be discarded. Keep wire coils sealed in their original packaging until ready for use and store at controlled room temperature with low humidity.

SKU: ED035184

$8,456.13

Financing Options

•

Loading Affirm Estimate…

•

Lease-To-Own From $384/mo — 24-Mo Term, No Hard Credit Check

Lincoln Elite Dealer

Free Shipping

Lowest Price

Welding of types 347 and 321 stainless and stainless clad steels

AWS / Classification: AWS A5.9: ER347

Overview

Lincoln ED035184 Lincolnweld 347 Submerged Arc (SAW) Wire, 3/32 in, 500 lb Speed Feed Reel

Lincoln's combination of submerged arc wire and flux is designed to produce sizeable weld deposits with exceptional quality and bead appearance

Features

• The addition of niobium reduces intergranular corrosion in severe operating conditions
• Niobium stabilized stainless steel electrodes used for the welding of types 347 and 321 stainless and stainless clad steels
• Q2 Lot Certificate showing actual wire composition available online
•

Specifications

Feature	Value
CONFORMANCES	SPECIFICATIONCLASSIFICATION
AWS	AWS A5.9ER347
ABS	AWS A5.9ER347
CWB	CSA W48ER347
MIL	MIL-E-19933E AMD1MIL-347
Classification	%C%Cr%Cu%Mn%Mo%N%Nb%Ni%P%S%SiFerrite Number (Delong ©)Ferrite Number (WRC-1992 ©)
ER347 Requirement	0.08 max.19.0 - 21.50.75 max.1.0 - 2.50.75 max.Info. Only10xC - 1.09.0 - 11.00.03 max.0.03 max.0.30 - 0.65Info. OnlyInfo. Only
Typical Result	0.0519.6-20.00.02-0.111.7-1.80.05-0.210.03-0.050.6-0.79.0-10.70.020.01 max.0.43-0.506-135-13
Diameter	Voltage, voltsApprox. Current, amps
3/32" (2.4 mm)	28-33275-350
1/8" (3.2 mm)	29-32350-450
Lincolnweld® P2000™
Lincolnweld® P2000™
LECO Diameter	3/32 in (2.4 mm)
LECO Package	500 lb Speed Feed® Reel
Diameter (in)	3/32

Includes

(1) 500 lb Speed Feed® Reel

Reviews

Q&A

Product Overview

Lincoln ED035184 Lincolnweld 347 Submerged Arc (SAW) Wire, 3/32 in, 500 lb Speed Feed Reel

Lincoln's combination of submerged arc wire and flux is designed to produce sizeable weld deposits with exceptional quality and bead appearance

Features

Specifications

Feature	Value
CONFORMANCES	SPECIFICATIONCLASSIFICATION
AWS	AWS A5.9ER347
ABS	AWS A5.9ER347
CWB	CSA W48ER347
MIL	MIL-E-19933E AMD1MIL-347
Classification	%C%Cr%Cu%Mn%Mo%N%Nb%Ni%P%S%SiFerrite Number (Delong ©)Ferrite Number (WRC-1992 ©)
ER347 Requirement	0.08 max.19.0 - 21.50.75 max.1.0 - 2.50.75 max.Info. Only10xC - 1.09.0 - 11.00.03 max.0.03 max.0.30 - 0.65Info. OnlyInfo. Only
Typical Result	0.0519.6-20.00.02-0.111.7-1.80.05-0.210.03-0.050.6-0.79.0-10.70.020.01 max.0.43-0.506-135-13
Diameter	Voltage, voltsApprox. Current, amps
3/32" (2.4 mm)	28-33275-350
1/8" (3.2 mm)	29-32350-450
Lincolnweld® P2000™
Lincolnweld® P2000™
LECO Diameter	3/32 in (2.4 mm)
LECO Package	500 lb Speed Feed® Reel
Diameter (in)	3/32
