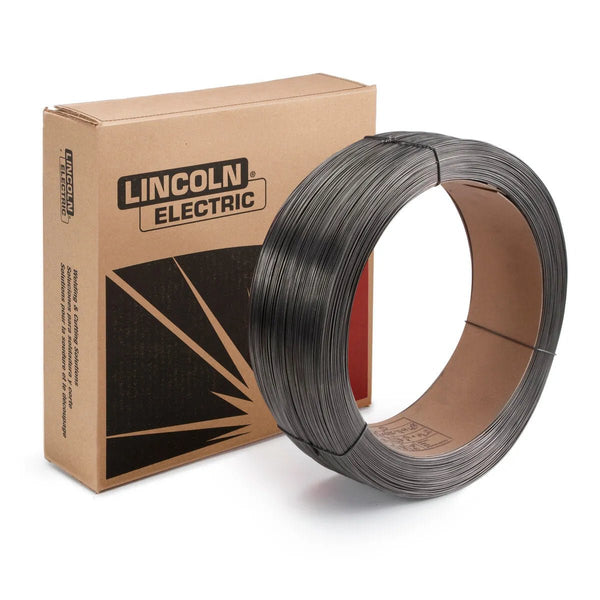

Lincoln Electric Lincore ED022064 Flux-Core Wire 5/64" – 50 lb

SKU: ED022064
$457.65 $508.50
Lincoln Elite Dealer
Free Shipping
Lowest Price
Lincore® BU Flux-Cored Wire ideal for rebuilding worn parts to near final dimensions before applying final hardfacing layers which are more wear resistant. Can also be used as the final hardfacing layer for typical aplications applications on Cable sheaves, Crane wheels, Drums and pulleys (Build-Up)
Overview

LINCORE® BU 5/64 inch welding wire provides a tough machinable deposit for build-up or final overlay ideal for rebuilding worn parts to near final dimensions before applying final hardfacing layers which are more wear resistant, can also be used as the final hardfacing layer for non-severe metal-to-metal wear applications with unlimited deposit layers.

Features
  • Provides a tough machinable deposit for build-up or final overlay
  • Delivers non-severe metal-to-metal wear with outstanding crack resistance
  • Ideal for rebuilding worn parts to near final dimensions before applying final hardfacing layers which are more wear resistant.
  • Can also be used as the final hardfacing layer for non-severe metal-to-metal wear applications

Typical Applications

  • Cable sheaves
  • Crane wheels
  • Drums and pulleys

Welding Positions

  • Flat/Horizontal
Specifications
FeatureValue
Classification Hardness Rockwell B
Typical Result 78-90
Typical Result, Work-hardened 86-98
Classification %Al%C%Mn%Si
Typical Result 1.500.240.500.25
Diameter PolarityESO, mm (in.)Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsDeposition Rate, kg/hr (lb/hr)
5/64 in (2.0 mm) DC+50 (2)5.1 (200)292804.6 (10.1)
5/64 in (2.0 mm) DC+50 (2)6.1 (240)303155.5 (12.1)
5/64 in (2.0 mm) DC+50 (2)6.6 (260)303306.1 (13.2)
5/64 in (2.0 mm) DC+50 (2)7.6 (300)313506.9 (15.2)
7/64 in (2.8 mm) DC+64 (2 1/2)3.4 (135)263605.7 (12.6)
7/64 in (2.8 mm) DC+64 (2 1/2)3.8 (150)273856.3 (13.9)
7/64 in (2.8 mm) DC+64 (2 1/2)4.4 (175)284207.3 (16.0)
7/64 in (2.8 mm) DC+64 (2 1/2)5.1 (200)294508.2 (18.1)
7/64 in (2.8 mm) DC+64 (2 1/2)5.9 (235)304709.6 (21.1)
LECO Diameter 5/64 in (2.0 mm)
LECO Package 50 lb Coil
Diameter (in) 5/64
Downloads
Includes
  • (1) 50 lb Coil
