Lincoln Electric Lincore 33 ED011237 Flux-Core Wire 5/64" – 14 lb

SKU: ED011237
$422.00 $577.36
Lincoln Elite Dealer
Free Shipping
Lowest Price
LINCORE® 33 Flux-Cored Wire is ideal for rebuilding worn parts to near final dimensions before applying final hardfacing layers which are more wear resistant, Use for build-up of steel mill parts such as rougher couplings and Build-up deposit on carbon steel and low alloy steel base metals (Build-Up)
AWS / Classification: EN/ISO: T Fe1
Overview

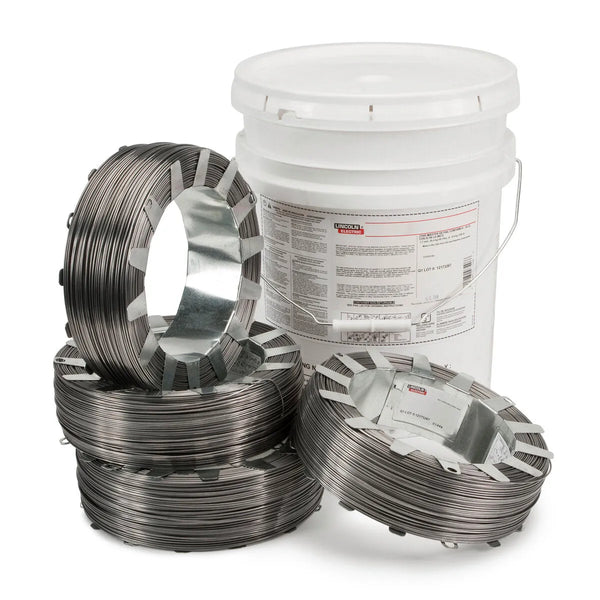

Lincoln Electric — Lincoln ED011237 Lincore 33 Flux-Cored (FCAW-S) Welding Wire, 5/64 in, (4) 14 lb Coil

LINCORE® 33 Flux-Cored Wire is ideal for rebuilding worn parts to near final dimensions before applying final hardfacing layers which are more wear resistant, Use for build-up of steel mill parts such as rougher couplings and Build-up deposit on carbon steel and low alloy steel base metals (Build-Up).

Specifications
  • Classification: Number of layer, Hardness Rockwell C
  • Typical Result: 1 Layer, 14-30
  • Typical Result: 2 Layers, 26-32
  • Typical Result: 3 Layers, 25-34
  • Typical Result, Work-hardened: 1 Layer, 28-34
  • Typical Result, Work-hardened: 2 Layers, 32-36
  • Typical Result, Work-hardened: 3 Layers, 35-38
  • Typical Result, Flame-hardened: 2 Layers, 38-42
  • Classification: Product Size, %Al, %C, %Cr, %Mn, %P, %S, %Si
  • Typical Result: .045" (1.1 mm), 1.6-1.9, 0.11-0.18, 1.2-1.4, 1.8-2.1, 0.004-0.012, 0.002-0.005, 0.50-0.75
  • Typical Result: 1/16" (1.6 mm), 1.6-1.9, 0.11-0.18, 1.2-1.4, 1.8-2.1, 0.004-0.012, 0.002-0.005, 0.50-0.75
  • Typical Result: 5/64" (2.0 mm), 1.4-1.7, 0.13-0.15, 1.1-1.4, 2.1-2.3, 0.004-0.008, 0.002-0.005, 0.45-0.60
  • Typical Result: 7/64" (2.8 mm), 1.4-1.7, 0.13-0.15, 1.1-1.4, 2.1-2.3, 0.004-0.008, 0.002-0.005, 0.45-0.60
  • Diameter: Polarity, ESO, mm (in.), Wire Feed Speed, m/min (in/min), Voltage, volts, Approx. Current, amps, Deposition Rate, kg/hr (lb/hr)
  • 0.045 in (1.1 mm): DC+, 45 (1 3/4), 5.1 (200), 25, 80, 1.5 (3.3)
  • 0.045 in (1.1 mm): DC+, 45 (1 3/4), 8.9 (350), 28, 130, 2.7 (6.0)
  • 0.045 in (1.1 mm): DC+, 45 (1 3/4), 12.7 (500), 31, 150, 3.9 (8.7)
  • 1/16 in (1.6 mm): DC+, 45 (1 3/4), 3.8 (150), 26, 125, 2.1 (4.6)
  • 1/16 in (1.6 mm): DC+, 45 (1 3/4), 6.4 (250), 29, 180, 3.5 (7.8)
  • 1/16 in (1.6 mm): DC+, 45 (1 3/4), 8.9 (350), 32, 225, 5.0 (11.1)
  • 5/64 in (2.0 mm): DC+, 50 (2), 3.2 (125), 23, 200, 3.1 (6.9)
  • 5/64 in (2.0 mm): DC+, 50 (2), 5.1 (200), 27, 290, 4.9 (10.8)
  • 5/64 in (2.0 mm): DC+, 50 (2), 6.4 (250), 29, 325, 6.1 (21.1)
  • 7/64 in (2.8 mm): DC+, 64 (2 1/2), 3.4 (135), 26, 360, 5.7 (12.6)
  • 7/64 in (2.8 mm): DC+, 64 (2 1/2), 4.4 (175), 28, 420, 7.3 (16.0)
  • 7/64 in (2.8 mm): DC+, 64 (2 1/2), 6.0 (235), 30, 470, 9.6 (21.1)
  • LECO Diameter: 5/64 in (2.0 mm)
  • LECO Package: (4) 14 lb Coil
  • Diameter (in): 5/64
  • Part number: ED011237
  • UPC/EAN: 0015082024035
What's in the box
  • (4) 14 lb Coil
Compatibility & sizing
  • Lincoln category: Filler Metals - Self-Shielded Flux-Cored;Filler Metals - Hardfacing
  • Compatible families: Lincore
  • Available diameters: 5/64
Why pros choose this

Solid MIG (GMAW) wire feeds continuously through the gun, which keeps the arc stable and lets the operator focus on travel and angle. Wire chemistry must match the base metal, and shielding gas must match the wire type, per AWS A5 classifications.

Warranty

1 Year

From the manufacturer

LINCORE 33 5/64 inch welding wire is ideal for rebuilding worn parts to near final dimensions before applying final hardfacing layers which are more wear resistant on tractor rolls and idlers, shovel parts, mine car wheels, mill and crusher hammers and dredge pumps applications offers unlimited layers with proper preheat and interpass temperatures and procedures.

Features
  • Delivers tough machinable deposits for build-up or final overlay intended for metal-to-metal wear
  • Use for build-up of steel mill parts such as rougher couplings
  • Build-up deposit on carbon steel and low alloy steel base metals
  • It is ideal for rebuilding worn parts to near final dimensions before applying final hardfacing layers which are more wear resistant

Typical Applications

  • Tractor rolls and idlers
  • Shovel parts
  • Mine car wheels
  • Mill and crusher hammers
  • Dredge pumps

Welding Positions

  • Flat/Horizontal
Specifications
FeatureValue
Classification Number of layerHardness Rockwell C
Typical Result 1 Layer14-30
Typical Result 2 Layers26-32
Typical Result 3 Layers25-34
Typical Result, Work-hardened 1 Layer28-34
Typical Result, Work-hardened 2 Layers32-36
Typical Result, Work-hardened 3 Layers35-38
Typical Result, Flame-hardened 2 Layers38-42
Classification Product Size%Al%C%Cr%Mn%P%S%Si
Typical Result .045" (1.1 mm)1.6-1.90.11-0.181.2-1.41.8-2.10.004-0.0120.002-0.0050.50-0.75
Typical Result 1/16" (1.6 mm)1.6-1.90.11-0.181.2-1.41.8-2.10.004-0.0120.002-0.0050.50-0.75
Typical Result 5/64" (2.0 mm)1.4-1.70.13-0.151.1-1.42.1-2.30.004-0.0080.002-0.0050.45-0.60
Typical Result 7/64" (2.8 mm)1.4-1.70.13-0.151.1-1.42.1-2.30.004-0.0080.002-0.0050.45-0.60
Diameter PolarityESO, mm (in.)Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsDeposition Rate, kg/hr (lb/hr)
0.045 in (1.1 mm) DC+45 (1 3/4)5.1 (200)25801.5 (3.3)
0.045 in (1.1 mm) DC+45 (1 3/4)8.9 (350)281302.7 (6.0)
0.045 in (1.1 mm) DC+45 (1 3/4)12.7 (500)311503.9 (8.7)
1/16 in (1.6 mm) DC+45 (1 3/4)3.8 (150)261252.1 (4.6)
1/16 in (1.6 mm) DC+45 (1 3/4)6.4 (250)291803.5 (7.8)
1/16 in (1.6 mm) DC+45 (1 3/4)8.9 (350)322255.0 (11.1)
5/64 in (2.0 mm) DC+50 (2)3.2 (125)232003.1 (6.9)
5/64 in (2.0 mm) DC+50 (2)5.1 (200)272904.9 (10.8)
5/64 in (2.0 mm) DC+50 (2)6.4 (250)293256.1 (21.1)
7/64 in (2.8 mm) DC+64 (2 1/2)3.4 (135)263605.7 (12.6)
7/64 in (2.8 mm) DC+64 (2 1/2)4.4 (175)284207.3 (16.0)
7/64 in (2.8 mm) DC+64 (2 1/2)6.0 (235)304709.6 (21.1)
LECO Diameter 5/64 in (2.0 mm)
LECO Package (4) 14 lb Coil
Diameter (in) 5/64
Downloads
Includes
  • (4) 14 lb Coil
