Lincoln Electric  |  SKU: ED014464

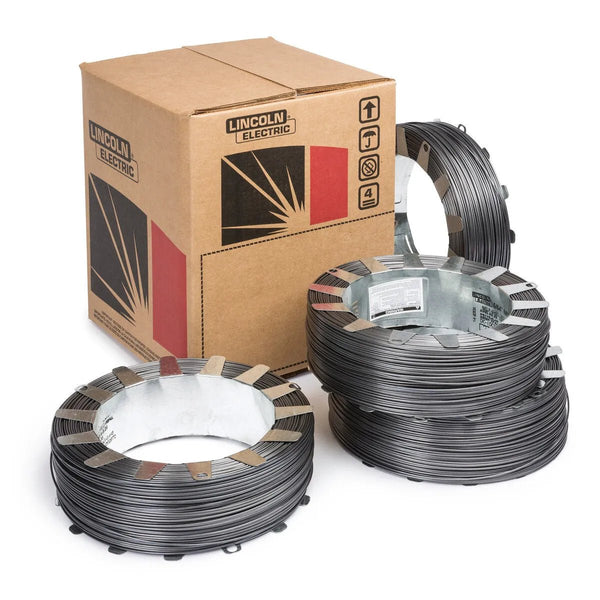

Lincoln ED014464 Innershield NR-311 Flux-Cored (FCAW-S) Wire, 5/64 in, (4) 14 lb Coil

$426.16
Innershield® NR®-311 from Lincoln Electric is designed for high deposition rates and fast travel speeds.
AWS / Classification: E70T-7, E70T7-AZ-CS3

Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.




More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.

DETAILS

Lincoln ED014464 Innershield NR-311 Flux-Cored (FCAW-S) Wire, 5/64 in, (4) 14 lb Coil

Designed for high deposition rates and fast travel speeds. Recommended for fillet, lap and butt welds on 3.2 mm (1/8 in) and thicker steel, including some low alloy steels in applications without impact strength requirements.

Features

• High deposition rates and fast travel speeds
• Easy slag removal
• Optimal toe wash-in
• Deep penetration
• High resistance to cracking

Lincoln ED014464 Innershield NR-311 Flux-Cored (FCAW-S) Wire, 5/64 in, (4) 14 lb Coil

Designed for high deposition rates and fast travel speeds. Recommended for fillet, lap and butt welds on 3.2 mm (1/8 in) and thicker steel, including some low alloy steels in applications without impact strength requirements.

Features

• High deposition rates and fast travel speeds
• Easy slag removal
• Optimal toe wash-in
• Deep penetration
• High resistance to cracking

Includes

What's Included
  • (4) 14 lb Coil

Specifications

CONFORMANCE
CONFORMANCES SPECIFICATION CLASSIFICATION
AWS AWS A5.20 E70T-7
AWS AWS A5.36 E70T7-AZ-CS3
ABS AWS A5.20 E70T-7
CWB CSA W48 E490T7-AZ-CS3 (E492T-7)
MECHANICAL PROPERTIES
Classification Polarity Yield Strength @ 0.2% Offset, MPa (ksi) Tensile Strength, MPa (ksi) Elongation, %
E70T7-AZ-CS3 Requirement DC- 400 (58) min. 480-660 (70-95) 22 min.
Typical Result, As-welded DC- 410 (59) 570-650 (83-94) 23
DEPOSIT COMPOSITION
Classification Polarity %Al %C %Mn %P %S %Si
E70T7-AZ-CS3 Requirement DC- 0.30 max. 1.75 max. 0.030 max. 0.030 max. 0.60 max.
Typical Result DC- 1.2-1.6 0.21-0.30 0.42-0.49 0.014 0.005 0.08-0.13
TYPICAL OPERATING PROCEDURES
Diameter Polarity CTWD, mm (in.) Wire Feed Speed, m/min (in/min) Voltage, volts Approx. Current, amps Melt-off Rate, kg/hr (lb/hr) Deposition Rate, kg/hr (lb/hr) Efficiency, %
5/64 in (2.0 mm) DC- 38 (1 1/2) 2.5 (100) 20-23 190 2.9 (6.4) 2.3 (5.0) 78
5/64 in (2.0 mm) DC- 38 (1 1/2) 4.1 (160) 24-28 275 4.7 (10.3) 3.6 (8.0) 78
5/64 in (2.0 mm) DC- 38 (1 1/2) 6.1 (240) 25-29 355 7.0 (15.4) 5.6 (12.4) 80
5/64 in (2.0 mm) DC- 38 (1 1/2) 7.6 (300) 27-31 410 8.8 (19.3) 7.2 (15.8) 82
3/32 in (2.4 mm) DC- 45 (1 3/4) 1.9 (75) 20-23 200 3.2 (7.0) 2.5 (5.4) 77
3/32 in (2.4 mm) DC- 45 (1 3/4) 3.4 (135) 23-26 300 5.9 (13.1) 4.6 (10.2) 78
3/32 in (2.4 mm) DC- 45 (1 3/4) 3.8 (150) 24-27 325 6.6 (14.6) 5.2 (11.4) 78
3/32 in (2.4 mm) DC- 45 (1 3/4) 5.3 (210) 26-28 400 9.3 (20.4) 7.5 (16.5) 81
3/32 in (2.4 mm) DC- 45 (1 3/4) 6.9 (270) 28-30 450 11.9 (26.2) 10.0 (22.0) 84
7/64 in (2.8 mm) DC- 45 (1 3/4) 2.5 (100) 23-26 325 5.4 (12.0) 4.5 (10.0) 83
7/64 in (2.8 mm) DC- 45 (1 3/4) 3.7 (145) 25-27 400 8.1 (17.8) 6.6 (14.5) 82
7/64 in (2.8 mm) DC- 45 (1 3/4) 4.4 (175) 26-28 450 9.8 (21.5) 8.2 (18.0) 83
7/64 in (2.8 mm) DC- 45 (1 3/4) 6.1 (240) 30-32 550 13.4 (29.5) 11.6 (25.5) 86
7/64 in (2.8 mm) DC- 45 (1 3/4) 7.6 (300) 32-34 625 16.7 (36.9) 15.0 (33.0) 89
LECO Diameter 5/64 in (2.0 mm)
LECO Package (4) 14 lb Coil
Diameter (in) 5/64

Lincoln ED014464 Innershield NR-311 Flux-Cored (FCAW-S) Wire, 5/64 in, (4) 14 lb Coil

Designed for high deposition rates and fast travel speeds. Recommended for fillet, lap and butt welds on 3.2 mm (1/8 in) and thicker steel, including some low alloy steels in applications without impact strength requirements.

Features

• High deposition rates and fast travel speeds
• Easy slag removal
• Optimal toe wash-in
• Deep penetration
• High resistance to cracking

Lincoln ED014464 Innershield NR-311 Flux-Cored (FCAW-S) Wire, 5/64 in, (4) 14 lb Coil

Designed for high deposition rates and fast travel speeds. Recommended for fillet, lap and butt welds on 3.2 mm (1/8 in) and thicker steel, including some low alloy steels in applications without impact strength requirements.

Features

• High deposition rates and fast travel speeds
• Easy slag removal
• Optimal toe wash-in
• Deep penetration
• High resistance to cracking
