Old B&B Part Number
3513

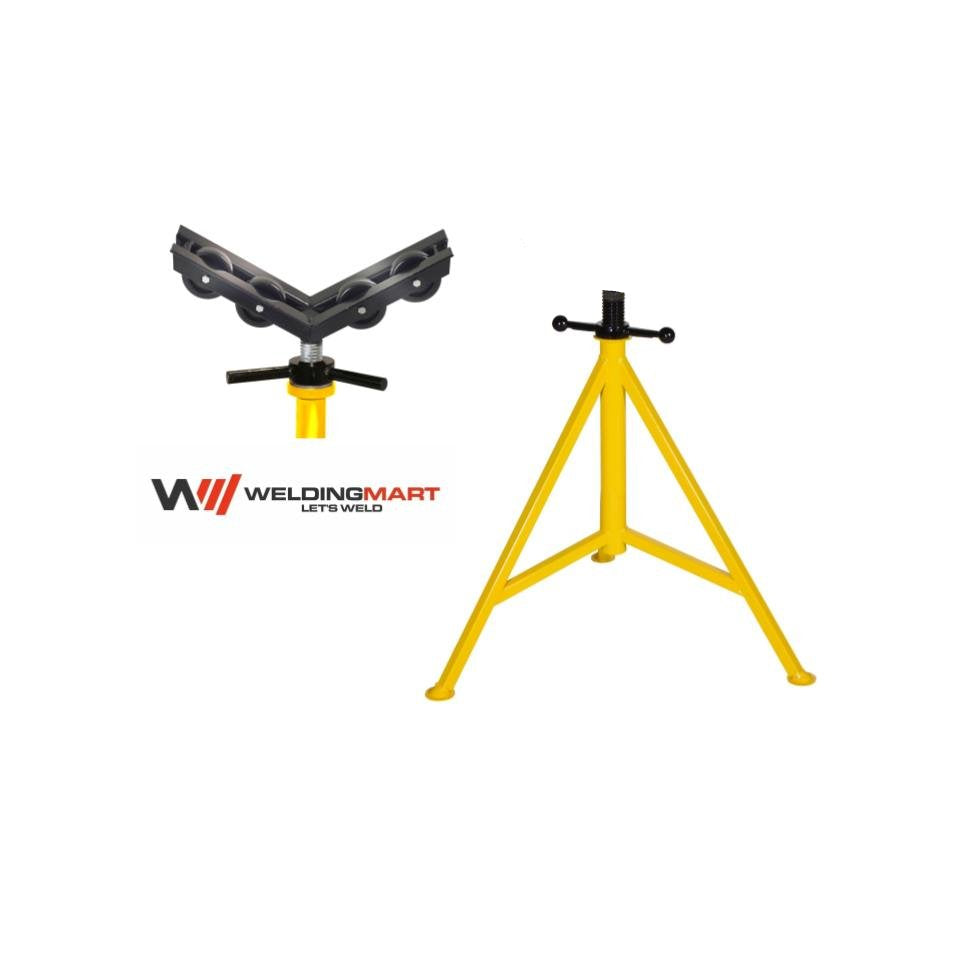

The B&B SUMNER Big Vee Jax™ with Phenolic Wheels in V-Head is tailored for rotating coated or stainless pipe while helping protect critical surfaces. Phenolic wheels reduce metal-to-metal contact and minimize the risk of marring, making this stand ideal for high-spec process piping. While the Big Vee frame remains heavy-duty, this configuration carries a 1,000 lb (450 kg) load capacity to balance smooth rolling with surface protection for 4"–36" (101.6–914.4 mm) pipe.
Key Features
- V-head with phenolic wheels helps protect coatings and sensitive pipe finishes.
- Suitable for pipe diameters from 4" to 36" (101.6–914.4 mm).
- 1,000 lb (450 kg) load capacity for lighter, high-spec piping applications.
- 12" (305 mm) V-head width supports stable, low-friction rolling.
- Gear-driven ACME screw for quick, accurate height adjustments.
- Three-legged steel frame with increased leg thickness for stability.
- 32" (812.8 mm) base width improves balance during rolling and alignment.
- Ideal for stainless, coated, or lined pipe where surface protection is critical.
- Built from durable 1" square tubing for long service life in industrial settings.
- Load Capacity: 1,000 lbs (450 kg) – Pipe Capacity: 4"–36" (101.6–914.4 mm)
