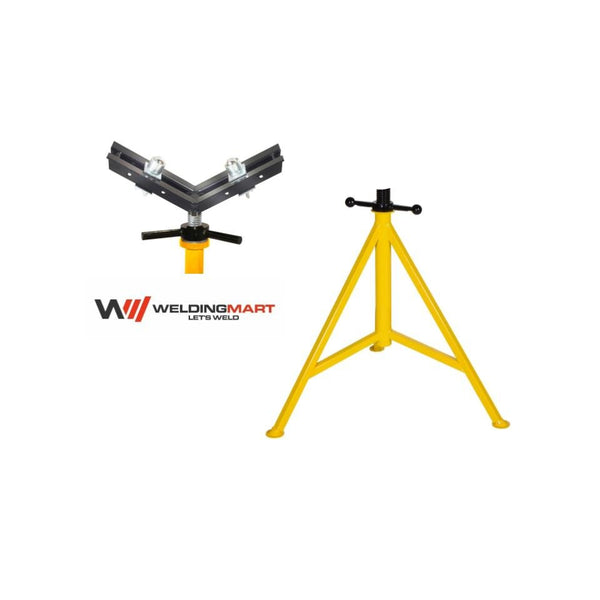

The B&B SUMNER Big Vee Jax™ with Stainless Steel Ball Transfer V-Head is designed for multidirectional movement and precise alignment of large-diameter pipe. Stainless steel ball transfers built into the V-head let pipe glide and rotate smoothly in multiple directions while the jack’s three-legged, wide-base frame maintains secure support. With a 5,000 lb (2,265 kg) load rating and 4"–36" (101.6–914.4 mm) pipe capacity, it is ideal for complex fit-ups, spool assembly, and high-precision alignment work.
Key Features
- Stainless steel ball transfer V-head enables multidirectional pipe movement.
- Supports pipe from 4" to 36" (101.6–914.4 mm) for large-diameter projects.
- 5,000 lb (2,265 kg) load capacity for demanding industrial applications.
- 12" (305 mm) V-head width provides broad support with low friction.
- Gear-driven ACME screw allows accurate, repeatable height adjustment.
- Three-legged steel frame with increased leg thickness for superior stability.
- 32" (812.8 mm) base width enhances balance as pipe is moved and aligned.
- Ideal for spool fabrication, complex fit-ups, and high-precision alignment tasks.
- Durable 1" square-tube construction for long-term use in tough environments.
- Load Capacity: 5,000 lbs (2,265 kg) – Pipe Capacity: 4"–36" (101.6–914.4 mm)
