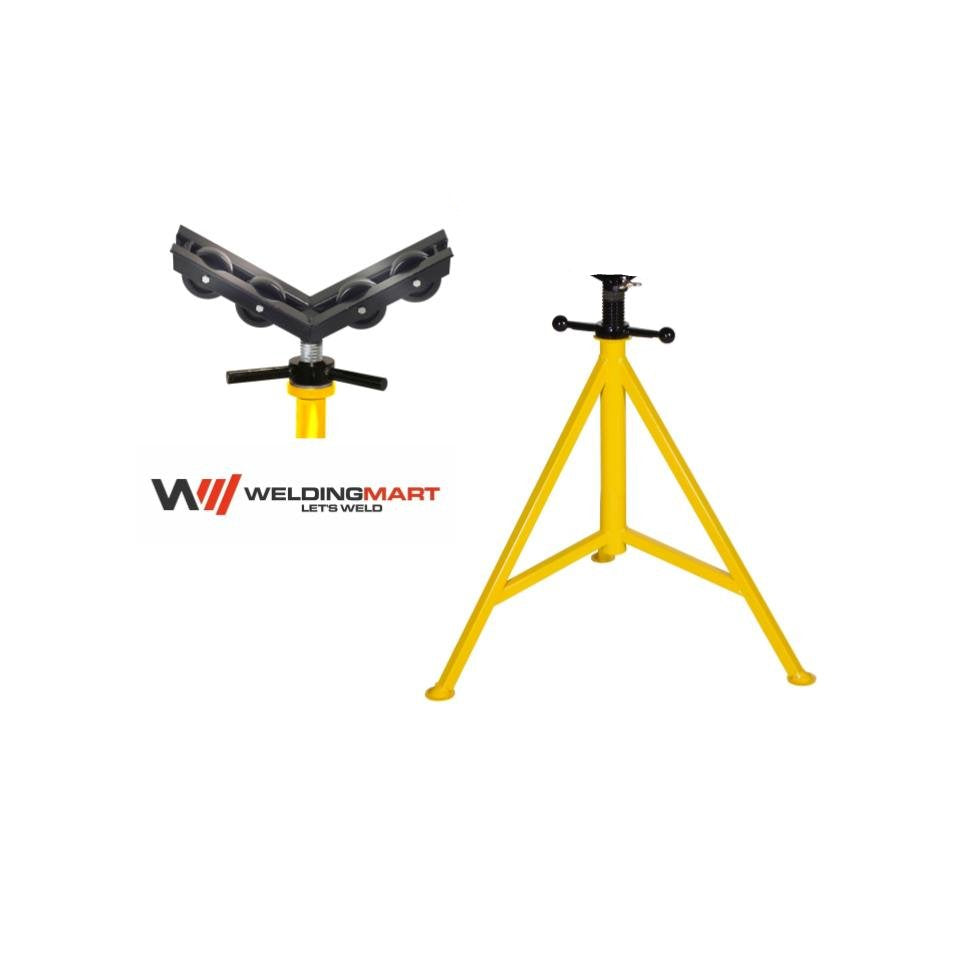

The B&B SUMNER Big Vee Jax™ with Stainless Steel Wheels in V-Head delivers corrosion-resistant rolling support for large-diameter pipe in harsh or sanitary environments. Stainless steel wheels provide smooth motion while resisting rust and contamination, making this configuration a strong choice for chemical plants, food facilities, and outdoor work. It supports 4"–36" (101.6–914.4 mm) pipe with a 1,000 lb (450 kg) load rating on the robust Big Vee frame.
Key Features
- V-head with stainless steel wheels for smooth, corrosion-resistant pipe rolling.
- Pipe capacity from 4" to 36" (101.6–914.4 mm) for large process and utility lines.
- 1,000 lb (450 kg) load capacity for controlled handling of critical piping.
- 12" (305 mm) wide V-head for stable support and guidance.
- Gear-driven ACME screw allows fast, precise height changes.
- Three-legged, wide-base steel frame built from 1" square tubing.
- Increased leg thickness and tube dimensions provide added strength.
- 32" (812.8 mm) base width enhances stability on shop floors and job sites.
- Ideal for corrosive, washdown, or sanitary environments requiring stainless contact surfaces.
- Load Capacity: 1,000 lbs (450 kg) – Pipe Capacity: 4"–36" (101.6–914.4 mm)
