Old Sumner Part Number
783320
Old B&B Part Number
2031-4F

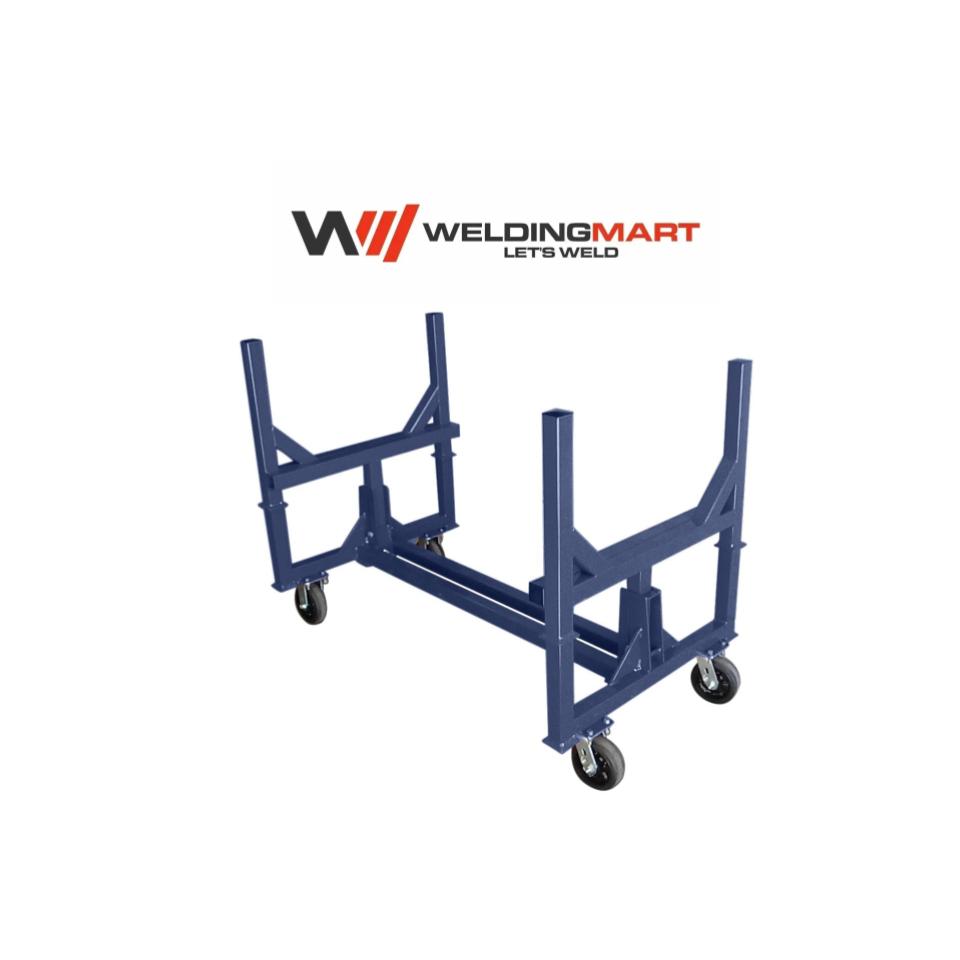

The B&B SUMNER Bundle Stacker Cart 1, model BSC1, is a heavy-duty bundle cart for organizing and transporting multiple smaller-diameter lengths of pipe, tube, and conduit. Similar to the B&B SUMNER Pipe Cart but optimized for bundled material, it uses folding U‑brackets and a compact wheeled base so crews can secure bundles and move them efficiently between fabrication, storage, and installation areas.
Key Features
- Bundle stacker cart 1 for general bundled pipe, tubing, and conduit applications.
- Heavy-gauge solid steel frame with replaceable wheels for long service life.
- U‑bracket folds down to lower the cart profile for storage, stacking, and transport, then locks upright for bundle storage.
- Modular design works alongside other B&B SUMNER stacker carts as part of a unified cart fleet.
- Standard 6" casters provide smooth rolling performance under load.
- Rated 1,000 lbs (450 kg) load capacity.
- Dimensions (L x W x H): 57" x 34" x 39" (1,447.8 x 863.6 x 990.6 mm).
- Shipping weight: 226 lbs (102.3 kg).
- Folds flat to improve stacking density and reduce storage footprint when not in use.
- Ideal for trades that routinely handle large quantities of small-diameter pipe and conduit.
