Old Sumner Part Number
783299
Old B&B Part Number
2033-4F

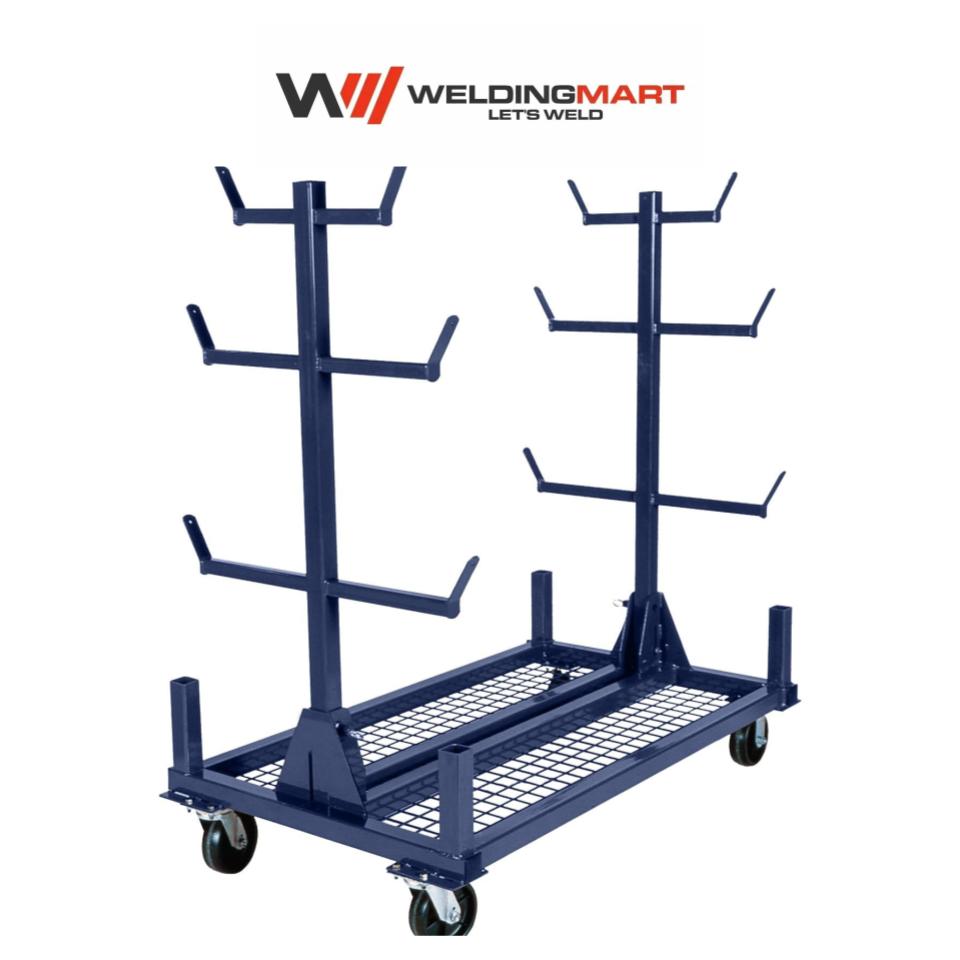

The B&B Sumner Conduit Stacker Cart 2 with Mesh Floor, model CSC2, adds a reinforced mesh deck to the conduit stacker design for carrying loose materials in addition to conduit and pipe. It offers the same upright holding sections and folding design as CSC1, with increased base support and flooring that help contain fittings, boxes, and other components during transport and storage.
Key Features
- Conduit stacker cart 2 with mesh floor for conduit, pipe, and general material handling.
- Mesh floor provides added support and helps keep small items from falling through the base.
- Eight holding sections keep rounds separated and neatly stacked.
- Gravity-lock hinge mechanism secures uprights in the working position; a simple pull of the pin unlocks them for folding.
- Uprights fold down for compact stacking, storage, and transport when carts are not in use.
- Two 6" static wheels and two 6" swivel wheels allow easy movement through tight jobsite environments.
- Rated 1,000 lbs (450 kg) load capacity.
- Dimensions (L x W x H): 57" x 34" x 62" (1,447.8 x 863.6 x 1,574.8 mm).
- Folded height approximately 20" (508 mm) for efficient storage and stacking.
- Shipping weight: 218 lbs (98.9 kg).
