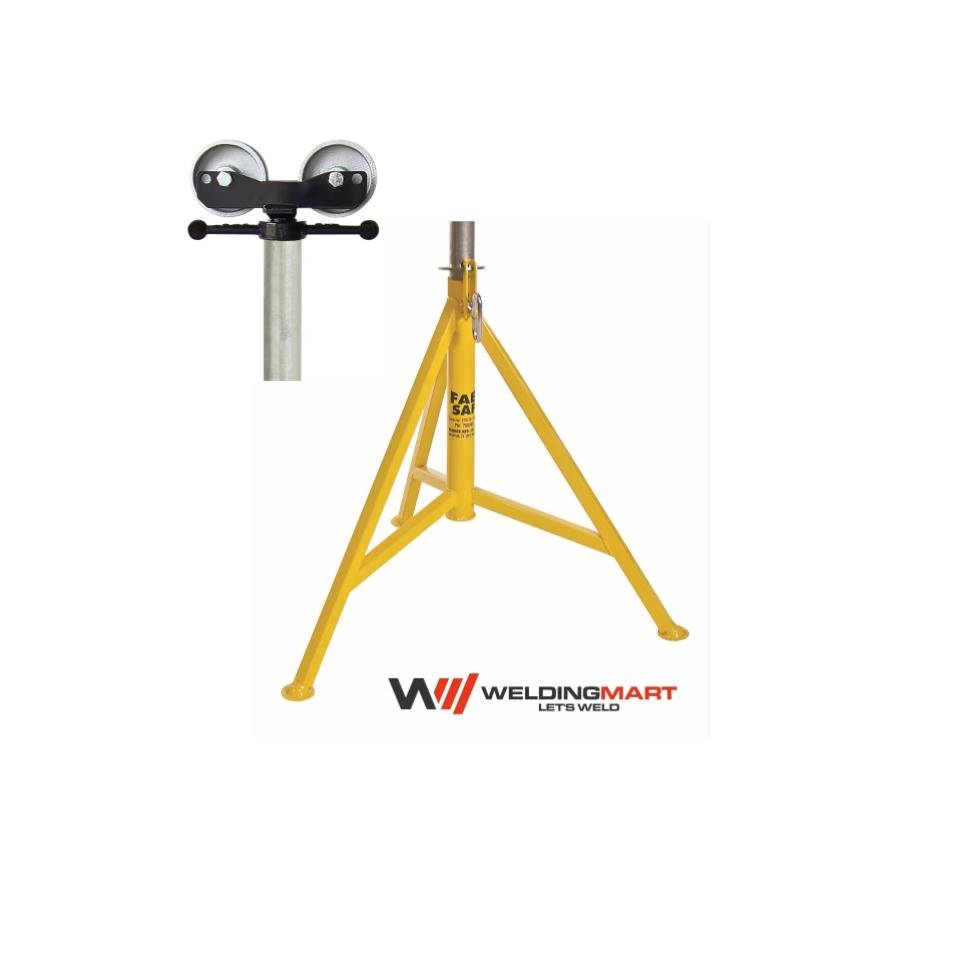

The B&B SUMNER Fab Saf™ Jack with Stainless Steel Wheel Head provides wide‑base stability and corrosion‑resistant pipe handling for harsh or sanitary environments. Built on the same rugged 1" (25.4 mm) steel frame and 30" (762 mm) base as the standard Fab Saf™, this model uses stainless steel rollers for smooth pipe rotation while resisting rust and contamination. With a 2,500 lb (1,134 kg) load rating and the Fall Guard™ safety system, it is an excellent choice for food, chemical, and outdoor applications that demand both strength and safety.
Key Features
- Supports up to 2,500 lbs (1,134 kg) with stainless steel wheel head.
- Stainless rollers provide smooth pipe rotation and resist corrosion in harsh environments.
- Extra‑wide 30" (762 mm) heavy-duty base enhances stability and reduces tipping risk.
- Fall Guard™ safety feature offers a 1" (25 mm) safety zone around the lock washer.
- 1.5" ACME thread with large ergonomic handle allows accurate, easy height adjustments.
- Set screw secures the head to the stand to prevent loose components in transit.
- Constructed from rugged 1" (25.4 mm) steel tubing for long-lasting durability.
- Height range from 32" to 52" (813–1,321 mm) accommodates a variety of elevated setups.
- Designed for quick breakdown and simple transport between work areas.
- Stainless wheel head supports pipe up to 24" (600 mm) diameter while helping maintain cleanliness.
- Load Capacity: 2,500 lbs (1,134 kg) – Height Range: 32"–52" – Pipe Capacity: up to 24" (600 mm)
