Old Sumner Part Number
780400

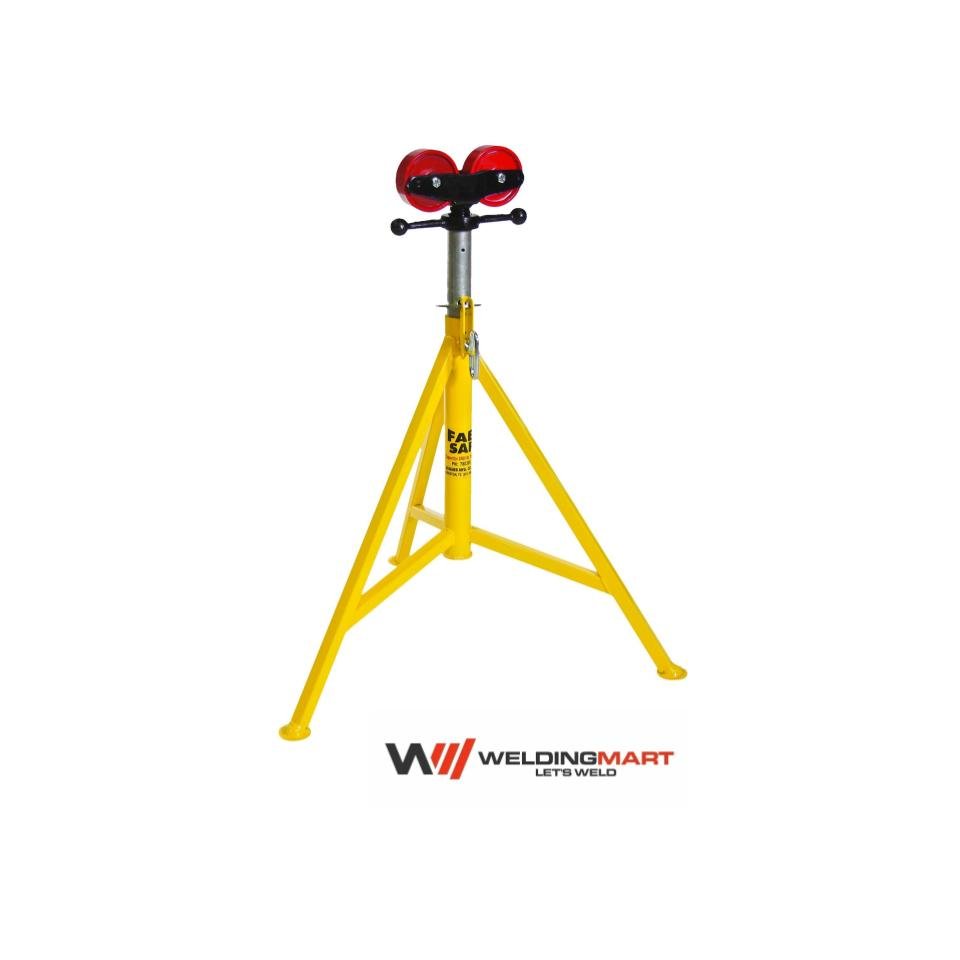

The B&B SUMNER Fab Saf™ Jack with Steel Wheel Head combines a wide, stable base with smooth pipe rotation for heavy fabrication and installation tasks. Featuring rugged 1" (25.4 mm) steel tubing, a 30" (762 mm) base, and the Fall Guard™ safety system, this jack stand is rated for 2,500 lbs (1,134 kg) when using the steel roller head. It is ideal for supporting and rolling pipe during cutting, beveling, and welding while maintaining excellent stability and safety on the shop floor.
Key Features
- Supports up to 2,500 lbs (1,134 kg) with steel wheel head for heavy pipe handling.
- Extra‑wide 30" (762 mm) base provides exceptional stability during pipe rolling.
- Fall Guard™ safety system maintains a 1" (25 mm) safety zone around the lock washer.
- 1.5" ACME thread with large ergonomic handle for precise height control.
- Set screw locks the roller head to the stand to prevent movement during transport.
- Rugged 1" (25.4 mm) steel tubing stands up to tough industrial environments.
- Height range from 32" to 52" (813–1,321 mm) suits a wide range of fabrication setups.
- Quick breakdown design for easy storage and relocation on multi‑bay jobs.
- Steel wheel head allows controlled pipe rotation and supports pipe up to 24" (600 mm) diameter.
- Perfect for welding shops, fabrication facilities, and maintenance crews handling heavy pipe.
- Load Capacity: 2,500 lbs (1,134 kg) – Height Range: 32"–52" – Pipe Capacity: up to 24" (600 mm)
