Old Sumner Part Number
780395

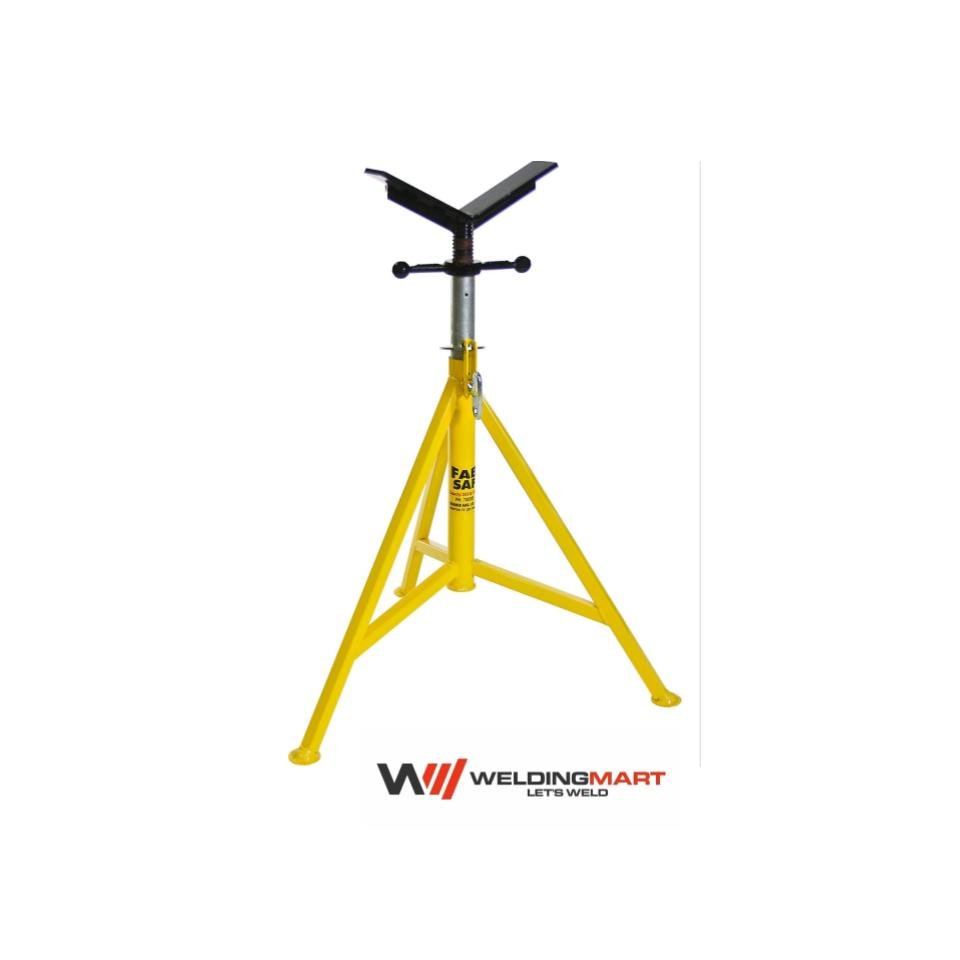

The B&B SUMNER Fab Saf™ Jack with V-head is a robust, wide-base pipe jack stand engineered to support heavy fabrication work with maximum safety and stability. Built from rugged 1" (25.4 mm) steel tubing and featuring an extra‑wide 30" (762 mm) base, this jack provides secure support for large pipe and assemblies in demanding industrial environments. With a 3,500 lb (1,588 kg) load capacity on the V-head and a patented Fall Guard™ safety system that maintains a 1" (25 mm) safety zone around the lock washer, the Fab Saf™ Jack is designed to keep both your work and your crew protected.
Key Features
- Supports up to 3,500 lbs (1,588 kg) with V-head for heavy-duty fabrication work.
- Extra‑wide 30" (762 mm) heavy-duty base delivers outstanding stability and reduces tipping risk.
- Fall Guard™ safety system provides a 1" (25 mm) safety zone around the lock washer.
- 1.5" ACME thread with large ergonomic handle delivers accurate, easy height adjustments.
- Set screw locks the V-head to the stand to help prevent loose components during transport.
- Constructed from rugged 1" (25.4 mm) steel tubing for long-lasting durability.
- Height range from 32" to 52" (813–1,321 mm) covers a wide variety of fabrication setups.
- Quick breakdown design for effortless storage and mobility between job sites.
- V-head provides secure support for pipe up to 36" (900 mm) in diameter.
- Available in a crate of 25 pieces (Part No. 4800x25) for outfitting shops and field crews.
- Load Capacity: 3,500 lbs (1,588 kg) – Height Range: 32"–52" – Pipe Capacity: up to 36" (900 mm)
