Old Sumner Part Number
787900

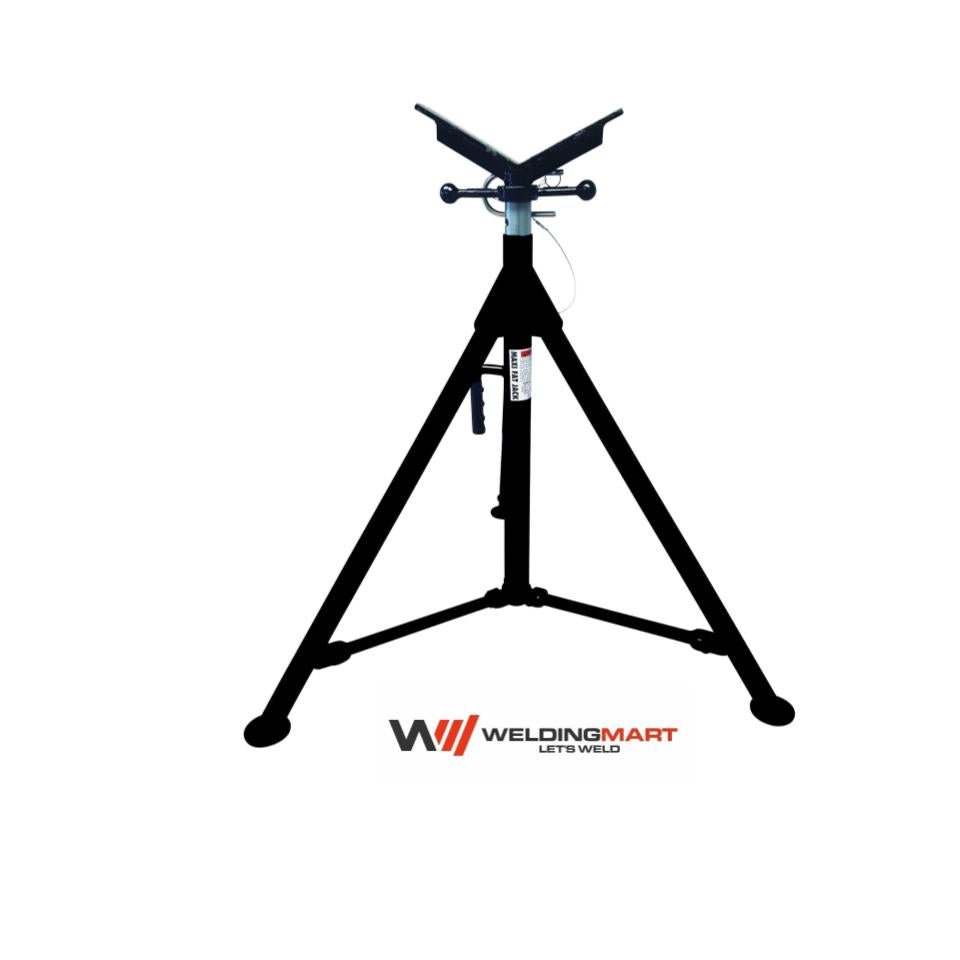

The B&B SUMNER Fat Jack™ Maxi with V-head is a heavy-duty pipe jack stand built for the tallest, most demanding industrial applications. With a wide working height range from 36" to 61" (914–1,549 mm), this stand delivers powerful support for large-diameter pipe at elevated positions. A rugged 1.25" steel-tube frame, wide base, and high 6,000 lb (2,725 kg) load capacity provide rock-solid stability for fabrication, installation, and maintenance work.
Key Features
- Maxi height range of 36"–61" (914–1,549 mm) for high-reach pipe support.
- Supports loads up to 6,000 lbs (2,725 kg) for heavy-duty industrial use.
- V-head design securely cradles pipe for fit-up, cutting, and welding.
- Crafted from 1.25" steel tubing for superior strength and durability.
- 1.5" ACME fine adjustment thread with ergonomic handle for smooth height changes.
- Quick-secure double locking pin system for fast, positive height locking.
- Wide base improves balance and reduces tipping risk under maximum load.
- Max pipe capacity up to 36" (900 mm) with V-head.
- Ideal for refineries, power plants, fabrication shops, and heavy industrial sites.
- Load Capacity: 6,000 lbs (2,725 kg) – Height Range: 36"–61" – Pipe Capacity: up to 36" (900 mm)
