Old Sumner Part Number
787904

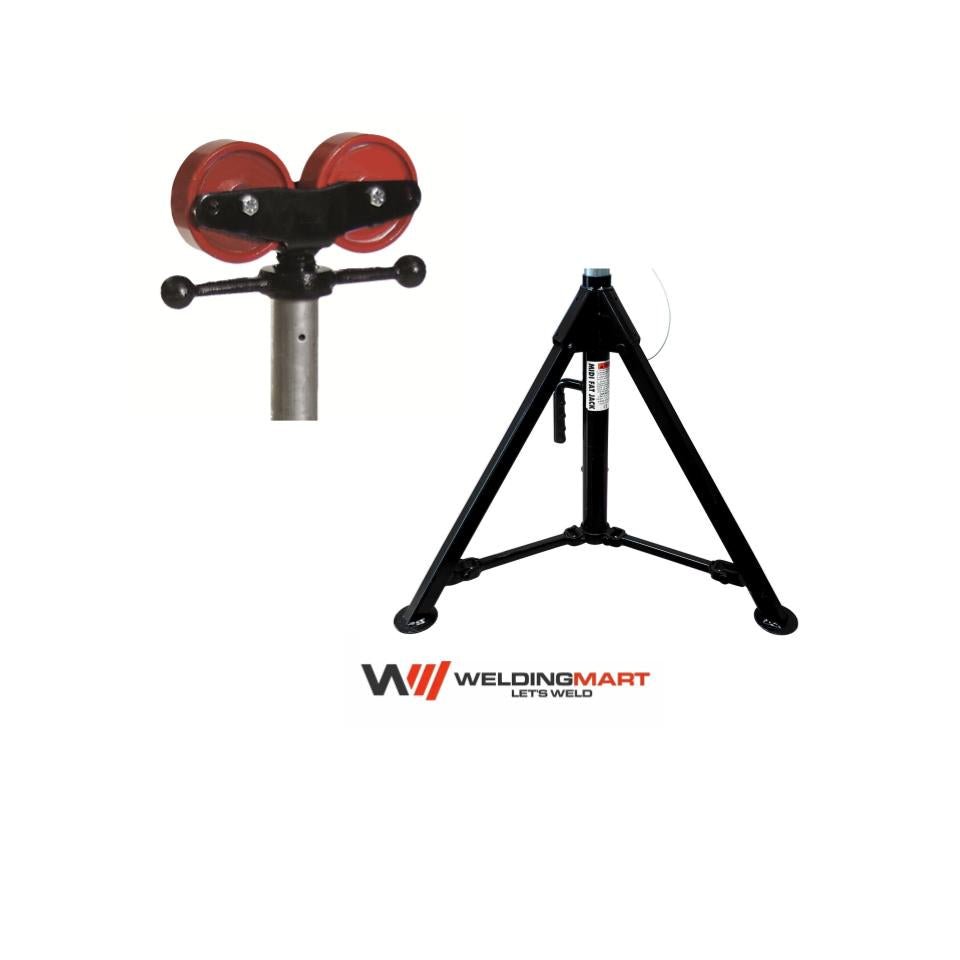

The B&B SUMNER Fat Jack™ Midi with Steel Wheel Head combines a mid-height working range with smooth pipe rolling for fabrication and installation work. Its 26.5"–44.5" (673–1,130 mm) height range and 6,000 lb (2,725 kg) capacity make it a versatile choice for shop or field use, while steel rollers simplify rotating and feeding pipe through cutting and welding stations.
Key Features
- Midi height range from 26.5" to 44.5" (673–1,130 mm) for medium-elevation tasks.
- Steel wheel head allows controlled pipe rotation and movement.
- 6,000 lb (2,725 kg) load rating for heavy-duty applications.
- 1.25" steel-tube frame for durability and stiffness.
- 1.5" ACME fine adjustment thread for precise height adjustment.
- Ergonomic handle for smooth, easy height changes under load.
- Double locking pin system for fast, secure height locking.
- Wide base improves stability during rolling and positioning.
- Max pipe capacity up to 24" (600 mm) with roller head.
- Load Capacity: 6,000 lbs (2,725 kg) – Height Range: 26.5"–44.5" – Pipe Capacity: up to 24" (600 mm)
