Old Sumner Part Number
787901

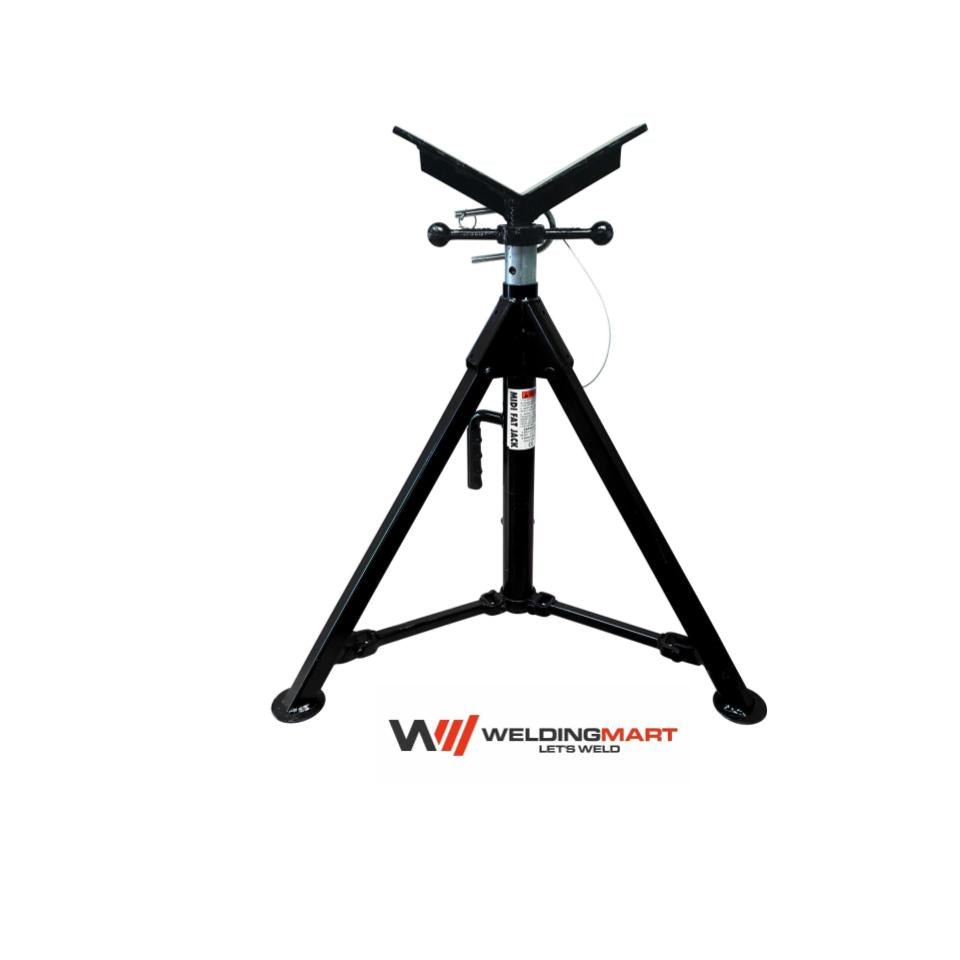

The B&B SUMNER Fat Jack™ Midi with V-head offers mid-height heavy-duty support, bridging the gap between Maxi and Mini models. With a working height range from 26.5" to 44.5" (673–1,130 mm), this stand is ideal for medium-elevation pipe runs and general fabrication. It shares the same 6,000 lb (2,725 kg) capacity, rugged 1.25" steel-tube construction, and wide base that define the Fat Jack™ series.
Key Features
- Midi height range of 26.5"–44.5" (673–1,130 mm) for mid-level pipe support.
- 6,000 lb (2,725 kg) load capacity for demanding industrial tasks.
- V-head securely cradles pipe for fit-up, welding, and alignment.
- Sturdy 1.25" steel tubing for superior strength and long service life.
- 1.5" ACME fine adjustment thread with ergonomic handle.
- Quick-secure double locking pin system for fast height locking.
- Wide base enhances stability during loading and positioning.
- Max pipe capacity up to 36" (900 mm) with V-head.
- Ideal for shop fabrication, plant maintenance, and field installation.
- Load Capacity: 6,000 lbs (2,725 kg) – Height Range: 26.5"–44.5" – Pipe Capacity: up to 36" (900 mm)
