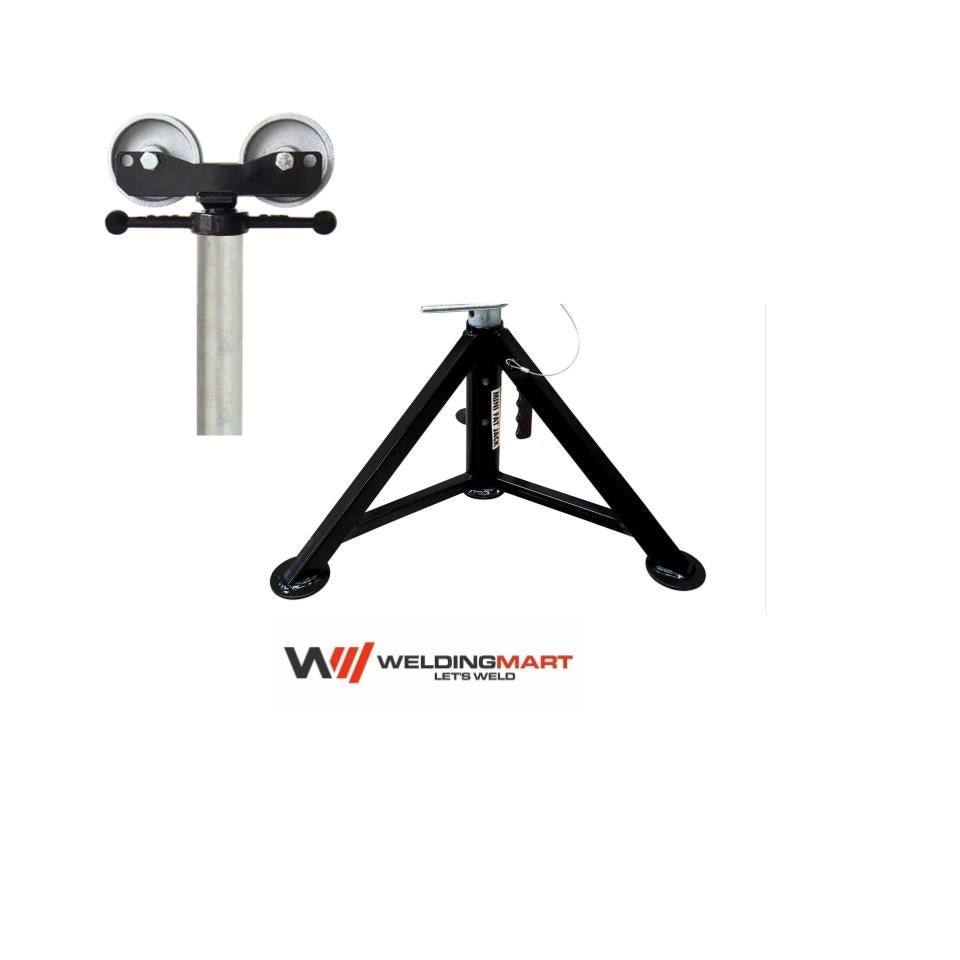

The B&B SUMNER Fat Jack™ Mini with Stainless Steel Wheel Head offers low-height, corrosion-resistant support for heavy pipe in confined spaces. With a 16"–28.5" (406–724 mm) Mini height range and 6,000 lb (2,725 kg) capacity, this stand uses stainless rollers for smooth, rust-resistant pipe movement near floor level. It is ideal for clean, wet, or chemical environments where both strength and corrosion resistance are critical.
Key Features
- Mini height range of 16"–28.5" (406–724 mm) for low-clearance tasks.
- Stainless steel wheel head resists corrosion and is easy to clean.
- 6,000 lb (2,725 kg) load rating for heavy-duty pipe support.
- Fixed-leg 1.25" steel-tube frame for rugged stability.
- 1.5" ACME fine adjustment thread with ergonomic handle.
- Quick-secure double locking pin system for fast height locking.
- Wide base improves stability when moving and rotating pipe.
- Max pipe capacity up to 24" (600 mm) with roller head.
- Ideal for plants, utility rooms, and process areas with corrosive or washdown conditions.
- Load Capacity: 6,000 lbs (2,725 kg) – Height Range: 16"–28.5" – Pipe Capacity: up to 24" (600 mm)
