Old Sumner Part Number
787902

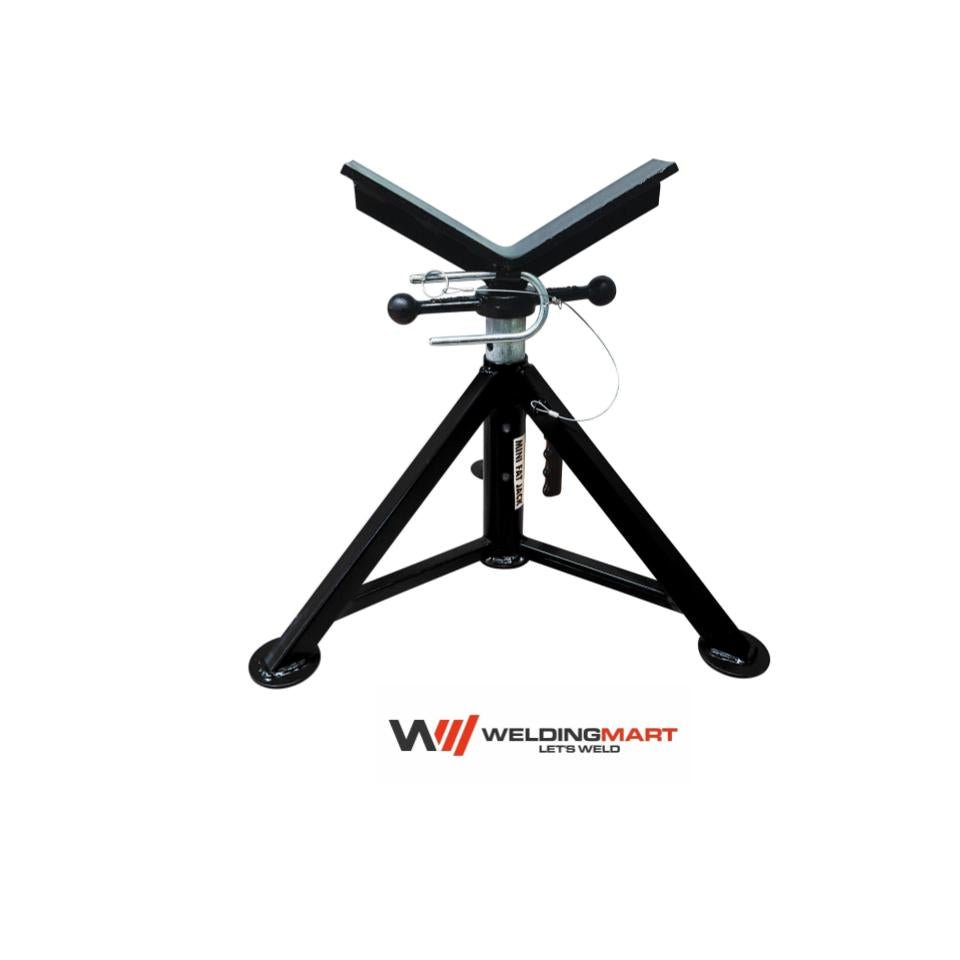

The B&B SUMNER Fat Jack™ Mini with V-head is a compact heavy-duty jack stand designed for low-height pipe support. With a working height range of 16"–28.5" (406–724 mm), this stand fits under skids, racks, and tight mechanical spaces while still delivering a 6,000 lb (2,725 kg) load rating. Its fixed-leg design, wide base, and 1.25" steel tubing provide stable support for demanding low-level fabrication and installation work.
Key Features
- Mini height range of 16"–28.5" (406–724 mm) for low-clearance applications.
- 6,000 lb (2,725 kg) load capacity despite compact size.
- V-head cradles pipe securely for ground-level fit-up and welding.
- Fixed-leg design for simple, rugged stability.
- 1.25" steel-tube construction delivers strength and durability.
- 1.5" ACME fine adjustment thread with ergonomic handle for precise leveling.
- Quick-secure double locking pin system for dependable height locking.
- Wide base helps prevent tipping during loading and adjustment.
- Max pipe capacity up to 36" (900 mm) with V-head.
- Load Capacity: 6,000 lbs (2,725 kg) – Height Range: 16"–28.5" – Pipe Capacity: up to 36" (900 mm)
