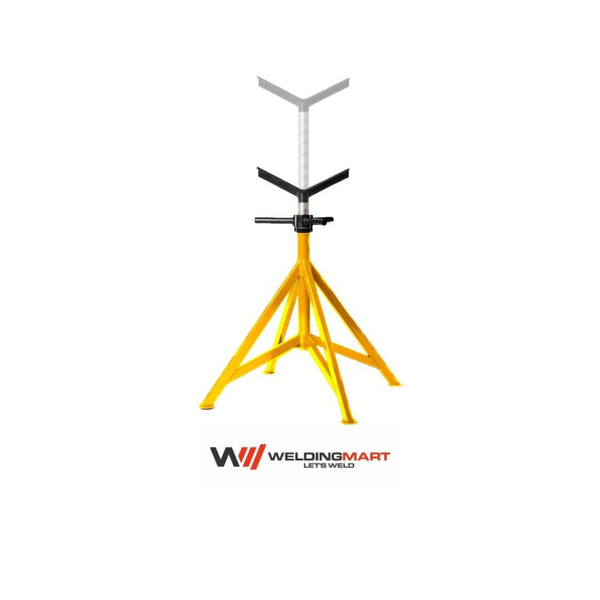

The B&B SUMNER Four Leg Mega Jack is designed for maximum strength, reliability, and safety in heavy-duty pipe and equipment support applications. Its four-leg base creates a broader, ultra-stable stance that significantly improves balance and minimizes movement under load, especially on uneven terrain or demanding work sites. Featuring a large, double reinforced 16" V-head with V-gussets, this jack securely supports up to 5,000 lbs, making it a powerful option for automotive, construction, and industrial professionals.
Key Features
- Double reinforced 16" V-head sized for pipe up to 32" (813 mm) in diameter.
- Four-leg base provides a wider, more stable footprint than traditional tripod jacks.
- Over-sized legs and braces increase capacity and reduce flex under heavy loads.
- Third-party tested with better than a 3:1 safety ratio for added peace of mind.
- Heavy-duty 1¾" (1.75") solid ACME rod delivers robust, precise height adjustment.
- Machined ACME nut with tri-handle improves durability and adjustment control.
- Simplified design removes adjustment washer, inner tube, and T-handle to reduce complexity.
- Height range approximately 31"–49" (787.4–1,244.6 mm) for taller pipe support needs.
- Ideal for shops and job sites where maximum stability and load capacity are required.
- Load Capacity: 5,000 lbs (2,265 kg) – Pipe Capacity: up to 32" (813 mm)
