Old Sumner Part Number
781304

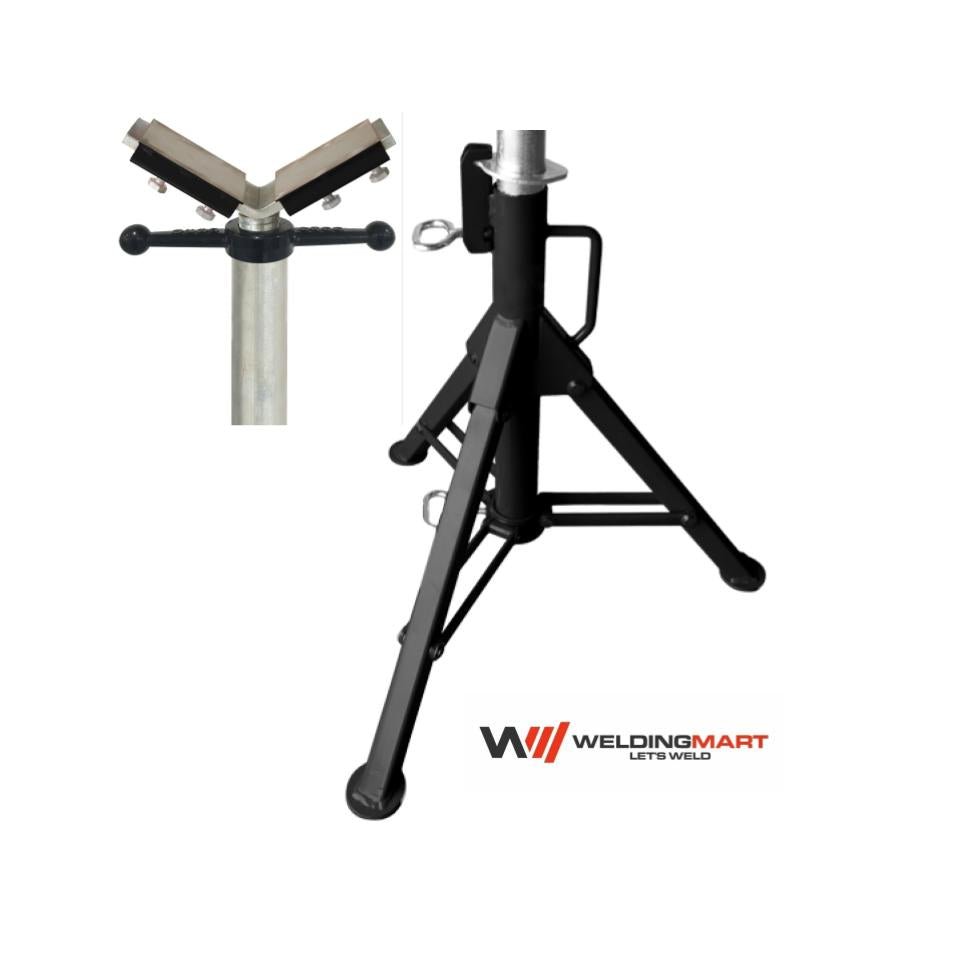

The B&B SUMNER Hi Heavy Duty Fold-A-Jack with Stainless Steel V-Head Sleeves is designed for high-spec piping where clean, corrosion-resistant contact surfaces are critical. Stainless sleeves over the V-head offer a durable, easy-to-clean pipe contact area that is ideal for stainless, alloy, or sanitary piping systems. Paired with the proven Hi Fold-A-Jack frame, this configuration provides reliable, high-capacity support in demanding industrial and process environments.
Key Features
- Stainless steel V-head sleeves help reduce contamination and corrosion.
- 2,500 lbs (1,135 kg) load capacity for heavy-duty industrial pipe support.
- Oversized 10" V-head profile keeps pipe centered and secure during work.
- Folding-leg steel construction enhances portability and storage efficiency.
- Oversized square tube legs and bracing increase strength and stability.
- 1½" ACME rod enables precise, reliable height adjustment.
- Quick lock washer height adjustment for fast, repeatable setup.
- Third-party tested with a 2:1 minimum safety ratio for safe operation.
- Ideal for sanitary, chemical, and high-purity process applications.
- Safety washer can be locked to the base to improve operator protection.
