Old Sumner Part Number
780405

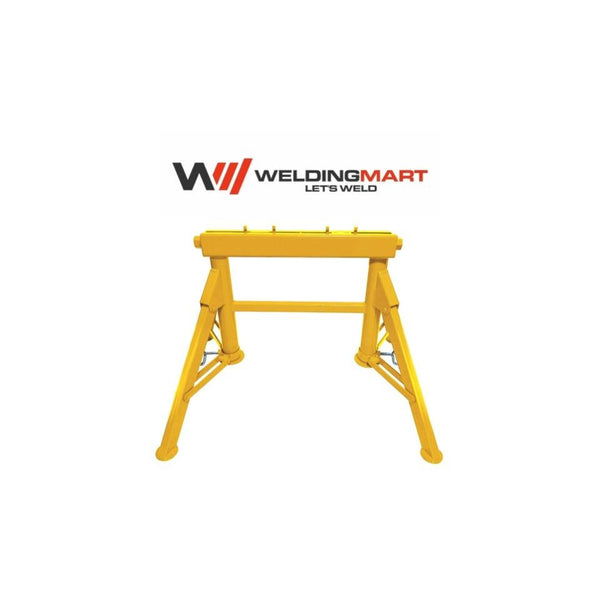

The B&B Sumner Lo Adjust-A-Roll Base Only, model 4400BASE, provides a low-profile folding four leg foundation ready to accept your choice of wheel or conveyor heads. Using the same rugged frame and 24" (610 mm) working height as complete Lo Adjust-A-Roll units, this base lets shops configure dedicated low-height rotation or material handling stands tailored to their processes.
Key Features
- Base-only Lo Adjust-A-Roll low-profile folding four leg pipe roller frame.
- Accepts steel wheel, phenolic wheel, stainless wheel, stainless ball transfer, or conveyor roller heads.
- Fixed 24" (610 mm) working height for low-level support and rotation.
- Folding four leg design offers strong stability in use and compact storage.
- Compact 32" x 24" x 24" (812.8 x 609.6 x 812.8 mm) footprint for tight fabrication and process areas.
- Ideal for shops standardizing on a common low-profile base with multiple head options.
- Helps reduce equipment costs by sharing a rugged base across several configurations.
- Suitable foundation for carbon steel, stainless, and structural handling setups.
- Engineered for flexibility, strength, and long service life.
- Load Capacity: 5,290 lbs (2,400 kg) – Height: 24" (610 mm), dependent on head configuration
