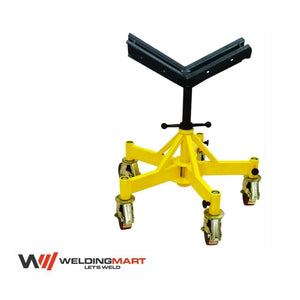

The B&B SUMNER Lo Max Jax™ 2 adjustable low-height pipe stands are engineered for professional pipe fitters and welders who need strong, mobile support at bench and sub-table working heights. With a dual-height base, heavy-duty casters, and multiple head options, the Lo Max Jax™ 2 line delivers safe, stable support for pipe, tube, and structural members in tight fabrication spaces.
Each Lo Max Jax™ 2 stand is rated up to 4,500 lbs (2,040 kg) depending on configuration and handles pipe from 4"–36" (101.6–900 mm) in diameter. The base can be flipped to provide a low working range of 23"–34" (584–863.6 mm), making these stands ideal for spool tables, positioners, welding benches, and low-clearance applications. With options including standard V-heads, steel wheels, rocking wheel heads, phenolic wheels, stainless steel wheels and sleeves, stainless ball transfers, and Beam Jax™ structural heads, you can build the exact low-height pipe stand your job demands.
- Adjustable low-height design – Dual-position base provides a 23"–34" (584–863.6 mm) working range for bench-level pipe welding, fit-up, and rotation.
- High load capacity – Models are rated up to 4,500 lbs (2,040 kg), giving you confidence when supporting heavy pipe and structural members.

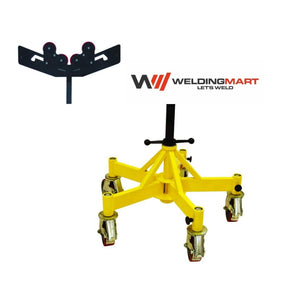

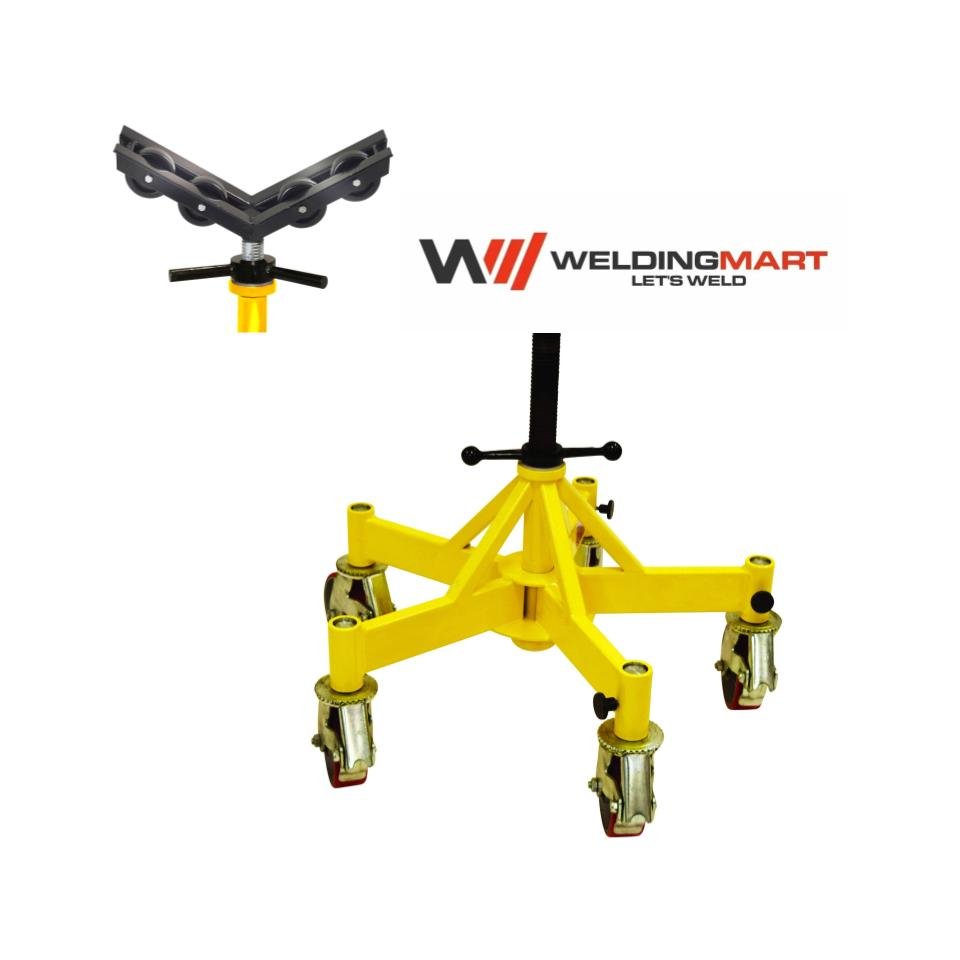

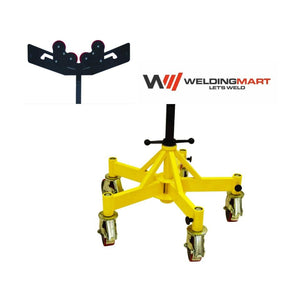

- Multiple head and wheel options – Choose V-heads, steel wheels, rocking wheels, phenolic wheels, stainless wheels and sleeves, ball transfer heads, or Beam Jax™ heads for structural work.
- 6" urethane-over-steel casters – Solid-hub casters increase safety and durability while allowing smooth movement between workstations.
- Optimized for carbon steel, stainless, and alloy pipe – Stainless wheels, sleeves, and ball transfers help minimize contamination on sanitary and high-spec piping.
- Heavy-duty construction – Robust steel frames are designed for daily use in fabrication shops, power plants, refineries, and process facilities.
- Flexible system – Base-only and complete kit options let you standardize on one platform while swapping heads to match each job.
- Bench-height pipe welding, fit-up, rotation, and alignment.
- Spool fabrication and low-clearance work under tables and fixtures.
- Stainless and sanitary process piping in food, beverage, and pharmaceutical plants.

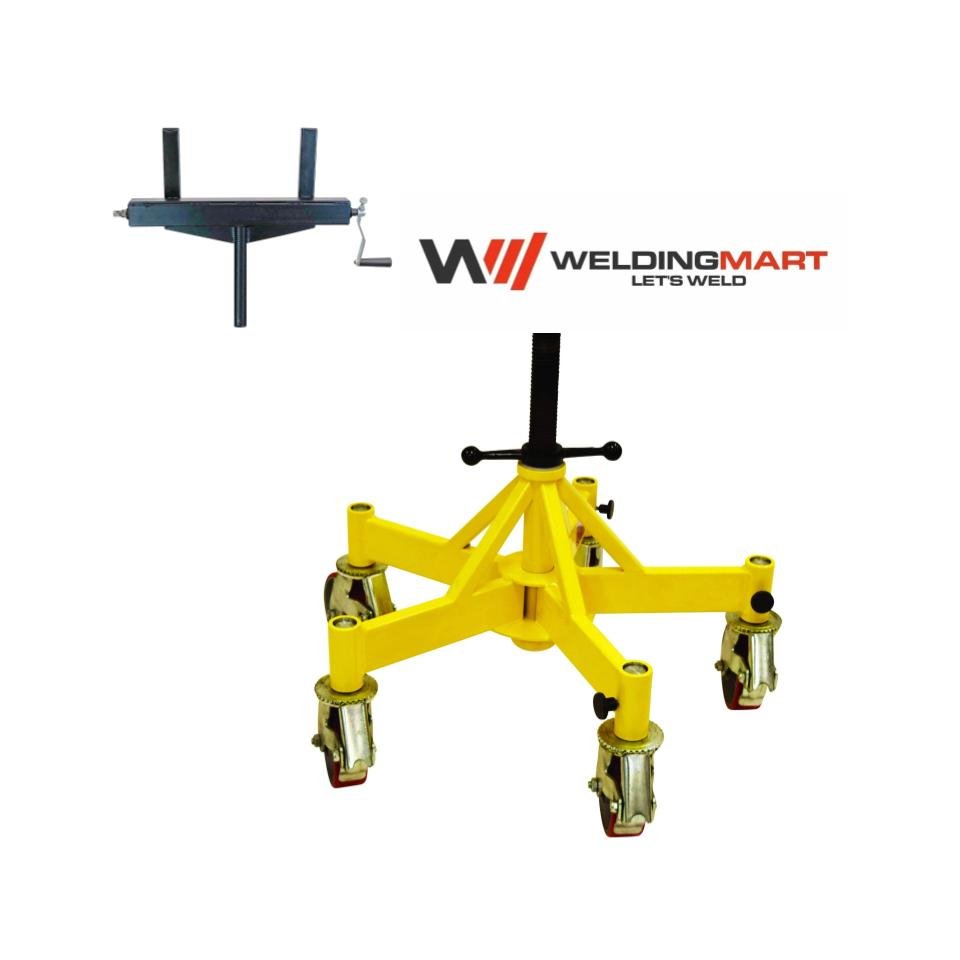

- Structural support and positioning with Beam Jax™ head configurations.
- Maintenance, turnaround, and shop work requiring portable, low-height pipe stands.
Use the options on this page to select your Lo Max Jax™ 2 model, including head style, wheel type, and base configuration, to build a low-height pipe stand that fits your exact welding and fabrication requirements.
