The B&B Sumner Mini Adjust-A-Roll series provides compact, high-capacity pipe rollers for welding and fabrication tasks in tight or space-limited environments. With a small footprint, wide four-legged base, and quick-change heads, these mini pipe roller stands handle pipe from 0.5"–36" (12–914 mm) and support loads up to 3,500 lbs (1,588 kg).

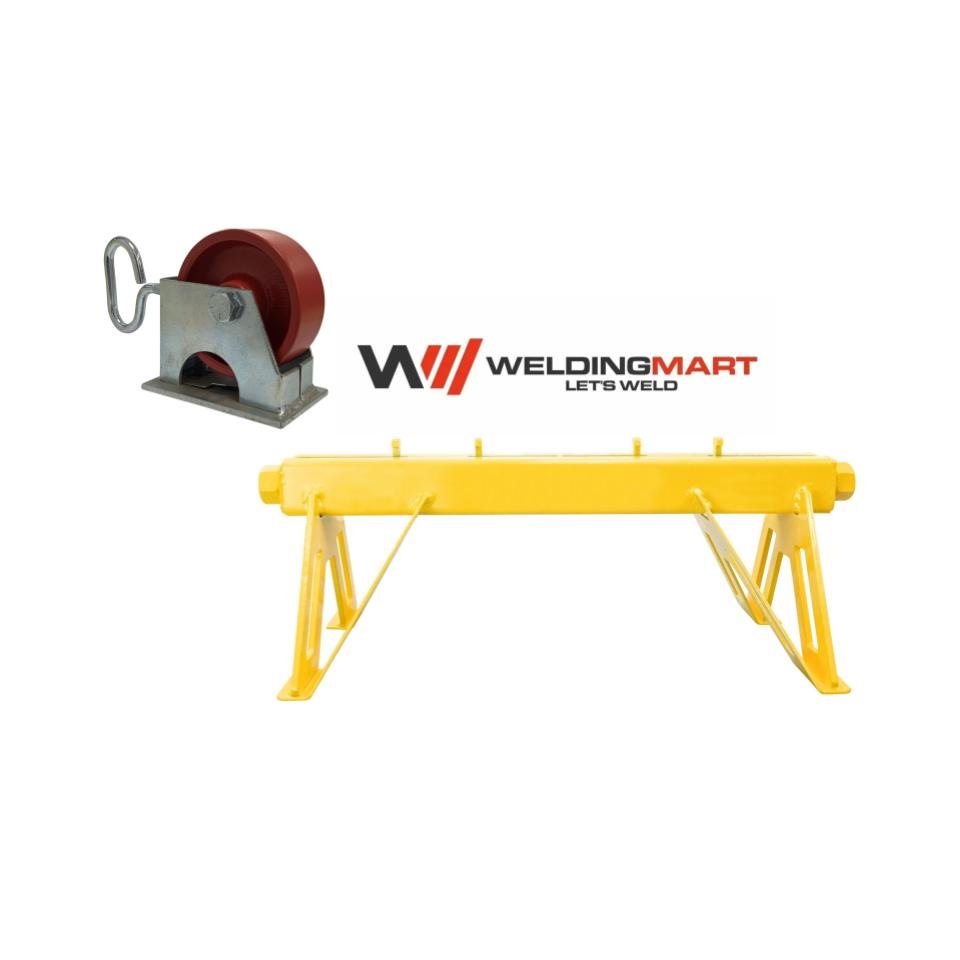

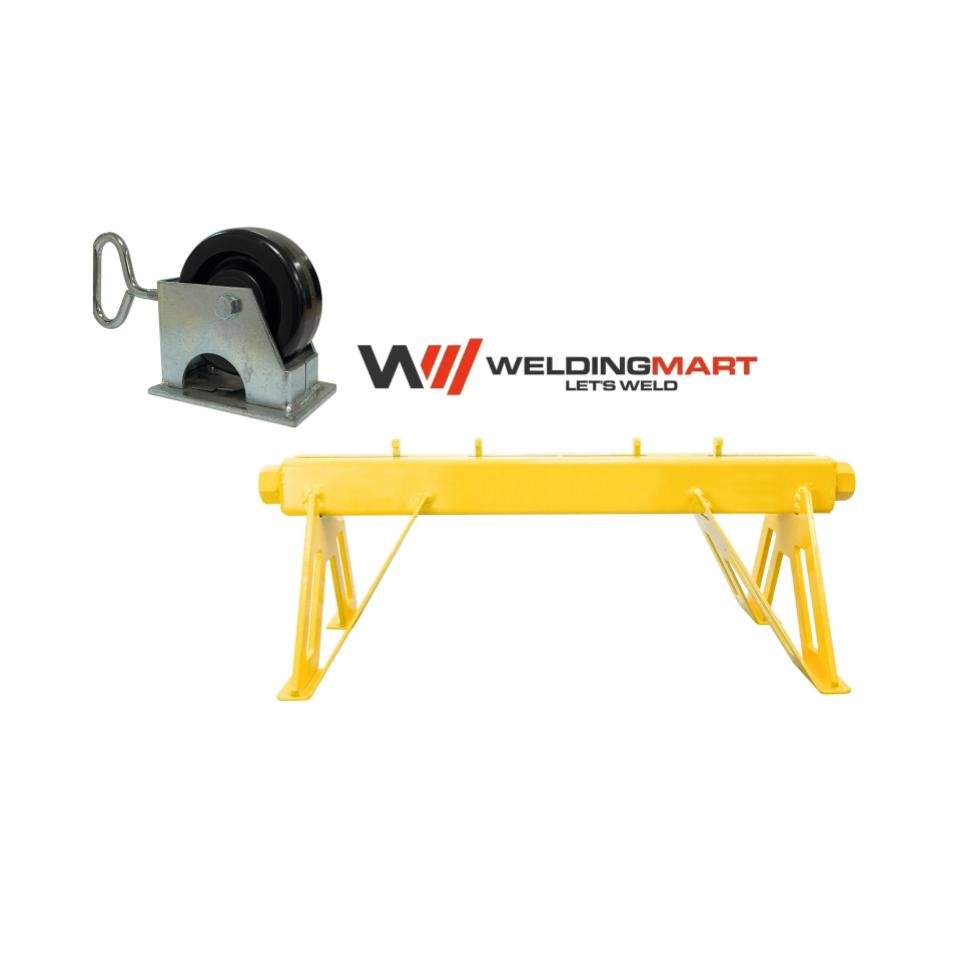

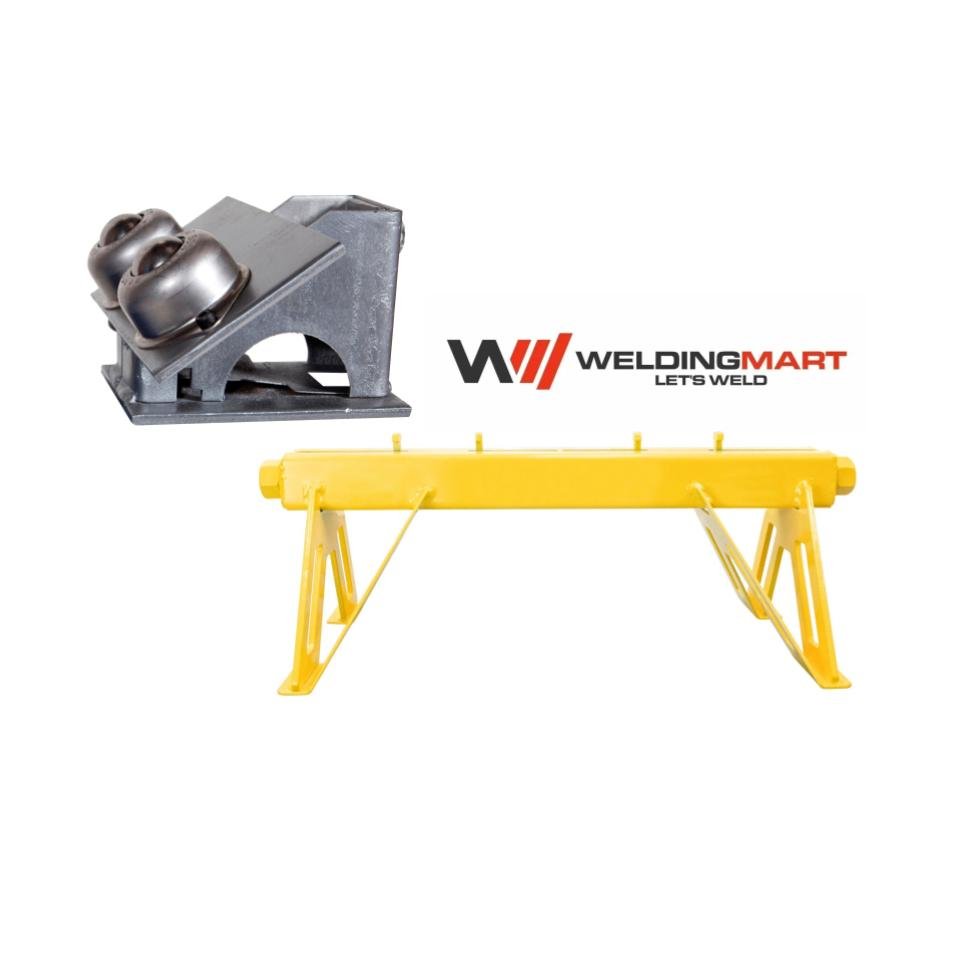

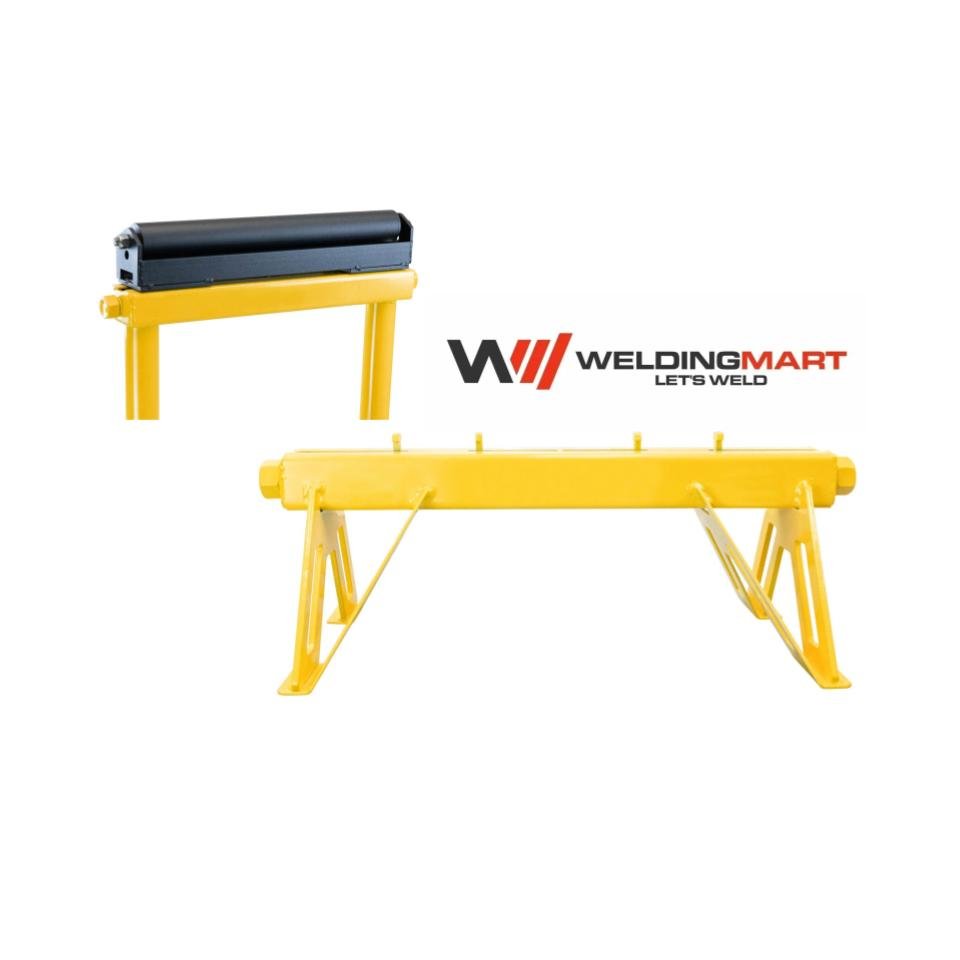

Mini Adjust-A-Roll units are available with steel wheel heads for general-purpose carbon steel work, phenolic wheel heads for quieter rolling and reduced marking, stainless steel wheel and ball transfer heads for sanitary and high-spec piping, and conveyor roller heads for straight-through material handling. The 4600BASE model lets you standardize on one compact frame and swap heads to match each job. Fine adjustment screws and self-centering head designs help position pipe precisely, even when space is tight around benches, fixtures, and small machines.
- Compact footprint – Fits on crowded benches and in tight floor spaces where full-size stands will not fit.
- High capacity for its size – Models support up to 3,500 lbs (1,588 kg) for serious pipe handling in a small package.
- Wide pipe size range – Handles 0.5"–36" (12–914 mm) OD for small bore through medium piping.
- Multiple head options – Steel, phenolic, stainless steel, stainless ball transfer, and conveyor heads cover rotation and material flow needs.
- Stable four-legged base – Wide stance improves stability while keeping height and footprint to a minimum.
- Quick-change system – Swap heads quickly to adapt one base to different materials and applications.
- Bench-mounted welding, fit-up, and inspection of small and medium pipe.
- Compact skid packages and modular fabrication work.
- Stainless and sanitary piping in food, beverage, and pharmaceutical facilities.
- Material infeed and outfeed at compact saws, weld cells, and assembly fixtures.
- Maintenance and repair work where portable, small-footprint pipe rollers are needed.
Use the options on this page to select your Mini Adjust-A-Roll model by head style and configuration to build the ideal compact pipe roller for your welding and fabrication workflow.
