Old Sumner Part Number
780500
Old B&B Part Number
90063

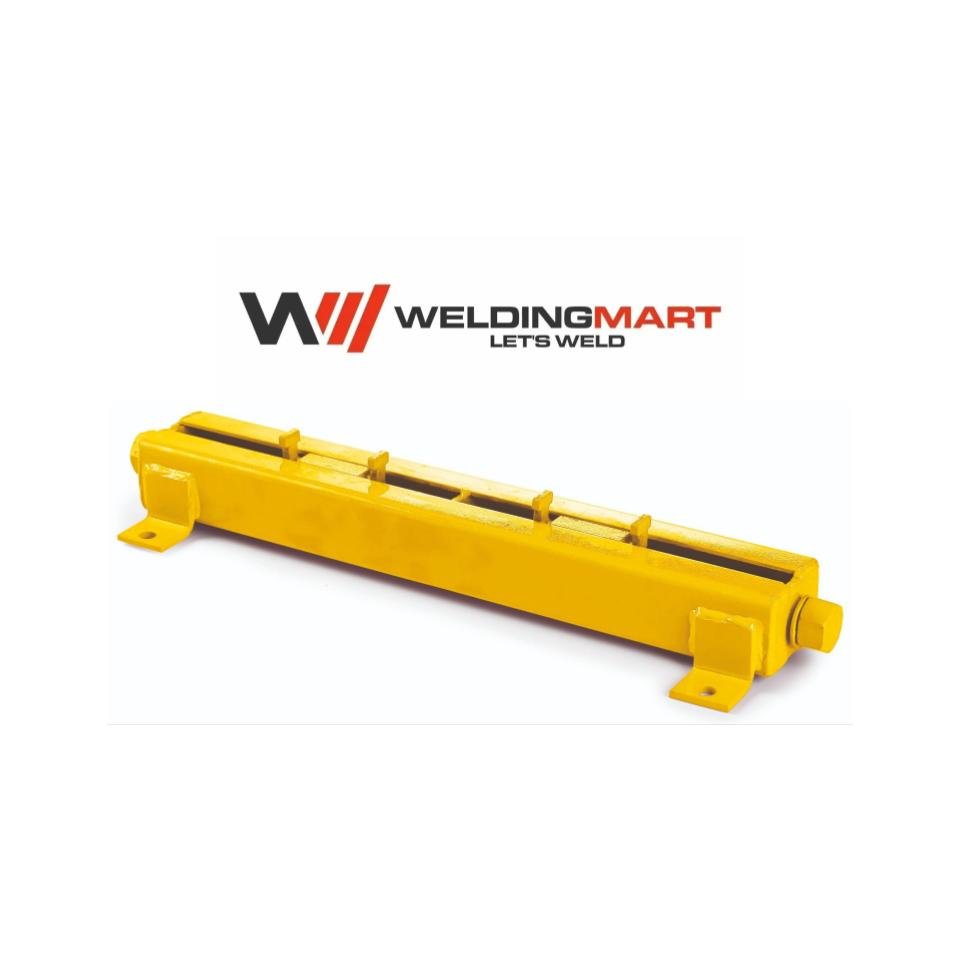

The B&B Sumner Table Adjust-A-Roll Base Only, model 4500BASE, is a rapid, self-centering pipe trestle base designed to accept a range of adjustable wheel and roller heads. Used as the top portion of the Pro Adjust-A-Roll stand or as a stand-alone bench or floor-mounted trestle, this base gives you a flexible platform for building custom pipe handling setups for diameters from 2"–48".
Key Features
- Table Adjust-A-Roll base only for bench or floor mounting.
- Accepts steel wheel, phenolic wheel, stainless wheel, stainless ball transfer, and conveyor roller heads.
- Rapid, self-centering design for quick pipe loading and alignment.
- Supports pipe from 2"–48" (50.8–1,219.2 mm) OD when used with appropriate heads.
- Top section matches the Table Adjust-A-Roll used on Pro Adjust-A-Roll stands.
- Compact, low-profile design is ideal for welding tables and fabrication cells.
- Perfect for shops standardizing on one base with multiple interchangeable head options.
- Engineered for versatility, strength, and long service life.
- Helps reduce equipment costs by sharing a common base across several setups.
- Load Capacity: 5,290 lbs (2,400 kg) with appropriate head configuration
