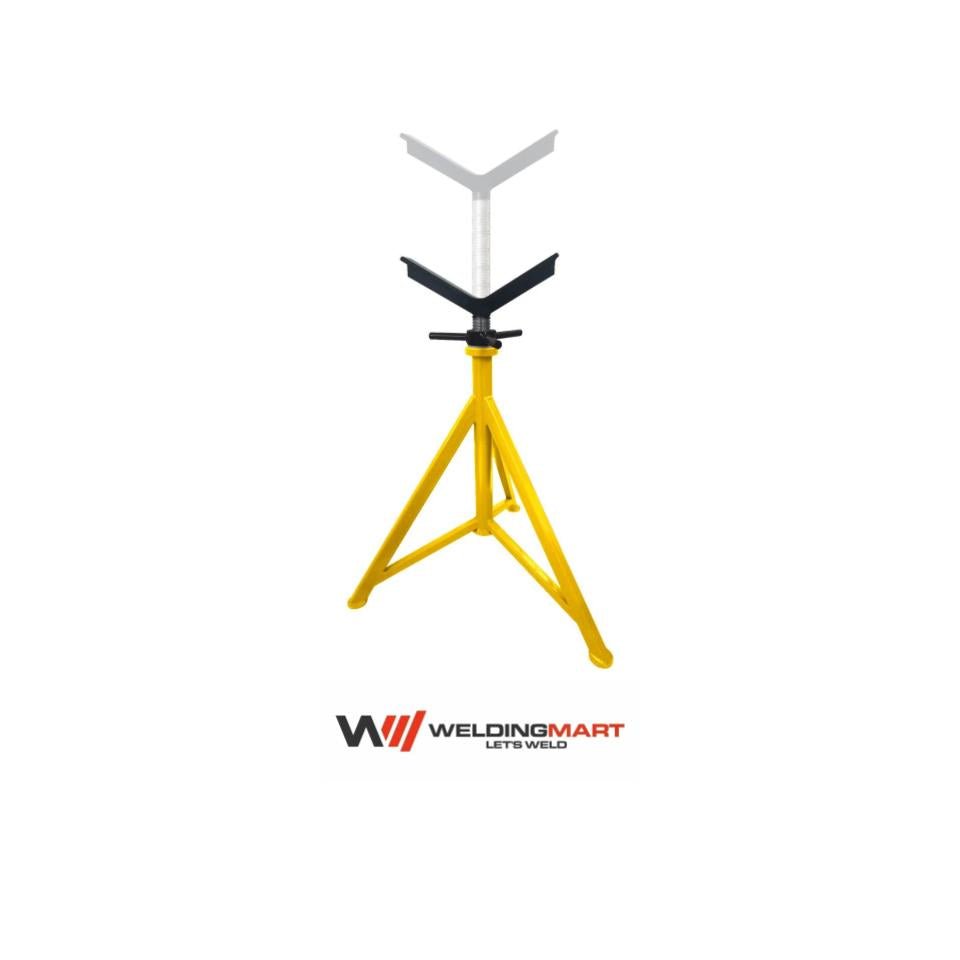

The B&B SUMNER Three Leg Mega Jack is engineered to provide a wider, more stable stance for heavy-duty pipe support where safety and stability are critical. Its three-leg base and expanded footprint improve balance on uneven or challenging surfaces, reducing the risk of tipping or shifting under load. A large 16" V-head with double reinforcement and V-gussets delivers superior load distribution, allowing the jack to support up to 5,000 lbs with confidence for demanding industrial applications.
Key Features
- Double reinforced 16" V-head handles pipe diameters up to 32" (813 mm).
- Three-leg design with increased footprint for excellent stability on rough or uneven ground.
- Over-sized legs and braces increase capacity and structural rigidity.
- Third-party tested with better than a 3:1 safety ratio for enhanced operator safety.
- Heavy-duty 1¾" (1.75") solid ACME rod provides strong, precise height adjustment.
- Machined ACME nut with tri-handle improves durability and ease of adjustment.
- Streamlined design eliminates adjustment washer, inner support tube, and T-handle for simpler operation.
- Height range approximately 32"–44" (812.8–1,117.6 mm) for mid-height pipe support.
- Ideal for construction, industrial maintenance, and fabrication environments.
- Load Capacity: 5,000 lbs (2,265 kg) – Pipe Capacity: up to 32" (813 mm)
=
