Bug-O DC DRIVE W/BG (100:1) 120VAC - BUG-5100-EBG

SKU: BUG-5100-EBG
$2,900.00
Financing / Leasing Available

Welding Equipment & Industrial Supply Financing

WeldingMart has partnered with Clicklease to offer fast, flexible financing for welding equipment and industrial supplies. Get the equipment you need with affordable monthly payments tailored to your budget.

Whether you're purchasing a new MIG welder, TIG welder, engine-driven welder, or welding accessories, our financing solutions help you equip your shop without large upfront costs. We offer lease-to-own options on trusted brands like Lincoln Electric, Miller Electric, and more.

Apply in minutes and get a decision in seconds:

  • No hard credit check
  • No lengthy paperwork
  • Fast approvals

Why Choose Lease-to-Own Welding Equipment?

Lease-to-own financing gives you the flexibility to grow your business while preserving cash flow.

Key benefits include:

  • Low upfront cost – Start using equipment without a large initial investment
  • Flexible terms – Choose payment plans that fit your budget
  • Access to latest technology – Stay competitive with modern welding equipment
  • Ownership options – Buy the equipment, upgrade, or return it at the end of the lease

You also have the option to purchase your equipment early, including within the first 12 months.

Tax Advantages

In many cases, lease payments for business-use equipment may be tax-deductible. This can reduce your overall cost and free up capital for additional tools, supplies, or labor.

(Consult your tax advisor for details.)

Apply in Minutes

Financing is available 24/7, so you can apply whenever it’s convenient.

  • Application takes about 4 minutes
  • Instant decision in most cases
  • Immediate access to eDocs
  • Order your equipment right away

If approved for more than your initial request, you can easily adjust your financing to include additional items.

Need Help?

Have questions about financing or lease-to-own options?

Contact the WeldingMart team — we’re here to help you find the right solution for your business. 877-532-9353.


Overview

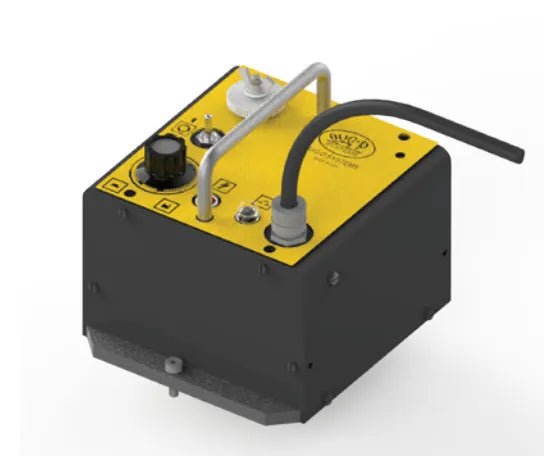

Bug-O DC IV DRIVE W/BG (100:1) 120VAC - BUG-5100-EBG

The Bug-O DC IV DRIVE W/BG (100:1) 120VAC - BUG-5100-EBG is a high-torque drive unit designed for demanding Bug-O automated welding and cutting applications. This specialized DC-IV drive features an enhanced 100:1 gear ratio that delivers exceptional torque for applications requiring slower travel speeds with maximum pulling power. Operating on standard 120VAC power, this drive unit provides the force necessary for vertical climbing applications, thick-wall pipe welding, or situations where significant resistance must be overcome while maintaining precise speed control.

Designed for maximum versatility, this drive unit mounts directly to Bug-O carriages specifically designed for DC drives, creating a complete motion system when paired with appropriate rails. The positive rack and pinion drive mechanism ensures slip-free operation in any position - horizontal, vertical, or overhead - when used with Aluminum Rigid Rail, Aluminum Flex Rail, or Bent Rigid Rail with a minimum radius of 10' (3 m). The integrated wide-range solid state speed control allows for precise adjustment of travel rates at the lower end of the speed spectrum, providing the fine control essential for critical welding applications where slower, powerful movement is required.



Key Features



  • The DC-IV Drive Unit is the basic drive for many BUG-O SYSTEMS machines
  • Mounts on BUG-O carriages designed for DC drives
  • Positive rack and pinion drive with a wide range solid state speed control
  • Once mounted on a carriage, the drive unit will run in any position using Aluminum Rigid Rail, Aluminum Flex Rail or Bent Rigid Rail [with a minimum radius of 10' (3 m)]
  • Features enhanced 100:1 gear ratio for maximum torque in demanding applications
  • Operates on standard 120VAC power for convenient use in most facilities
  • Ideal for vertical climbing, thick-wall pipe welding, and high-resistance applications





Drive Load Chart
1.12" (28 mm)
Pinion
Gear
Used		 Speed Range

in/min. (mm/min.)		 Continuous Model Number
Vert.
LBS		 Load
KG		 GEAR
RATIO		 120/50-60/1 240/50-60/1 42/50-60/1
Low
Speed		 1.5-30 (38-750) 50 22 50:1 BUG-5100-CBG BUG-5102-CBG BUG-5104-CBG
High
Speed		 8-160 (200-4000) 3 1.4
Low
Speed		 .7-15 (19-380) 75 34 100:1 BUG-5100-EBG BUG-5102-EBG BUG-5104-EBG
High
Speed		 4-80 (100-2000) 15 7
Low
Speed		 .5-10 (12-255) 100 45 150:1 BUG-5100-FBG BUG-5102-FBG BUG-5104-FBG
High
Speed		 2-50 (50-1250) 30 14
