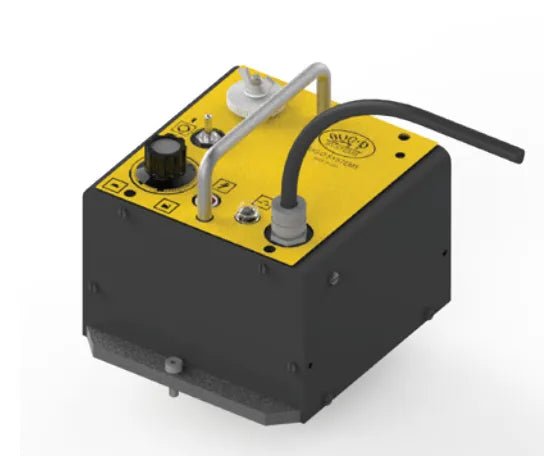

The Bug-O DC DRIVE W/BG (100:1) 240VAC - BUG-5102-EBG is a high-torque drive unit designed for demanding Bug-O automated welding applications in regions with 240VAC power standards. This specialized DC-IV drive features an enhanced 100:1 gear ratio that delivers exceptional torque for applications requiring slower travel speeds with maximum pulling power. Operating on 240VAC power, this international voltage-compatible drive unit provides the force necessary for vertical climbing applications, thick-wall pipe welding, or situations where significant resistance must be overcome while maintaining precise speed control.
Designed for maximum versatility, this drive unit mounts directly to Bug-O carriages specifically designed for DC drives, creating a complete motion system when paired with appropriate rails. The positive rack and pinion drive mechanism ensures slip-free operation in any position - horizontal, vertical, or overhead - when used with Aluminum Rigid Rail, Aluminum Flex Rail, or Bent Rigid Rail with a minimum radius of 10' (3 m). The integrated wide-range solid state speed control allows for precise adjustment of travel rates at the lower end of the speed spectrum, providing the fine control essential for critical welding applications where slower, powerful movement is required in facilities with 240VAC power infrastructure.
- The DC-IV Drive Unit is the basic drive for many BUG-O SYSTEMS machines
- Mounts on BUG-O carriages designed for DC drives
- Positive rack and pinion drive with a wide range solid state speed control
- Once mounted on a carriage, the drive unit will run in any position using Aluminum Rigid Rail, Aluminum Flex Rail or Bent Rigid Rail [with a minimum radius of 10' (3 m)]
- Features enhanced 100:1 gear ratio for maximum torque in demanding applications
- Operates on 240VAC power for international compatibility and industrial applications
- Ideal for vertical climbing, thick-wall pipe welding, and high-resistance applications
| Pinion Gear Used |
Speed Range in/min. (mm/min.) |
Continuous | Model Number | ||||
| Vert. LBS |
Load KG |
GEAR RATIO |
120/50-60/1 | 240/50-60/1 | 42/50-60/1 | ||
| Low Speed |
1.5-30 (38-750) | 50 | 22 | 50:1 | BUG-5100-CBG | BUG-5102-CBG | BUG-5104-CBG |
| High Speed |
8-160 (200-4000) | 3 | 1.4 | ||||
| Low Speed |
.7-15 (19-380) | 75 | 34 | 100:1 | BUG-5100-EBG | BUG-5102-EBG | BUG-5104-EBG |
| High Speed |
4-80 (100-2000) | 15 | 7 | ||||
| Low Speed |
.5-10 (12-255) | 100 | 45 | 150:1 | BUG-5100-FBG | BUG-5102-FBG | BUG-5104-FBG |
| High Speed |
2-50 (50-1250) | 30 | 14 | ||||
