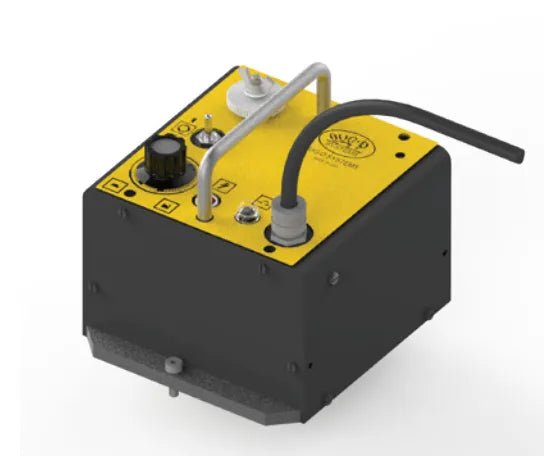

The Bug-O DC DRIVE W/BG (150:1) 42VAC - BUG-5104-FBG provides maximum torque for the most challenging automated welding applications in reduced-voltage environments. This specialized DC-IV drive unit features a superior 150:1 gear ratio, positive rack and pinion drive, and solid state speed control, delivering the extreme force needed for the most demanding vertical climbing and high-resistance operations with improved electrical safety when mounted to compatible carriages on rigid or flexible rails.
Overview
Bug-O DC DRIVE W/BG (150:1) 42VAC - BUG-5104-FBG



The Bug-O DC DRIVE W/BG (150:1) 42VAC - BUG-5104-FBG is an ultra-high torque drive unit designed for the most demanding Bug-O automated welding applications in reduced-voltage environments. This specialized DC-IV drive combines a superior 150:1 gear ratio with 42VAC operation, delivering maximum torque with improved operator safety in conductive industrial settings. The extreme gear reduction provides the exceptional force necessary for the most challenging vertical climbing applications, extra-thick wall pipe welding, or situations where maximum resistance must be overcome while maintaining ultra-precise speed control.

Designed for maximum versatility, this drive unit mounts directly to Bug-O carriages specifically designed for DC drives, creating a complete motion system when paired with appropriate rails. The positive rack and pinion drive mechanism ensures slip-free operation in any position - horizontal, vertical, or overhead - when used with Aluminum Rigid Rail, Aluminum Flex Rail, or Bent Rigid Rail with a minimum radius of 10' (3 m). The integrated wide-range solid state speed control allows for precise adjustment of travel rates at the lowest end of the speed spectrum, providing the exceptional control essential for the most critical welding applications where extremely slow, powerful movement is required with enhanced electrical safety.



Key Features



  • The DC-IV Drive Unit is the basic drive for many BUG-O SYSTEMS machines
  • Mounts on BUG-O carriages designed for DC drives
  • Positive rack and pinion drive with a wide range solid state speed control
  • Once mounted on a carriage, the drive unit will run in any position using Aluminum Rigid Rail, Aluminum Flex Rail or Bent Rigid Rail [with a minimum radius of 10' (3 m)]
  • Features superior 150:1 gear ratio for maximum torque in the most demanding applications
  • Operates on 42VAC power for enhanced safety in conductive environments
  • Ideal for extreme vertical climbing, extra-thick wall pipe welding, and maximum-resistance applications



Drive Load Chart

Pinion
Gear
Used		 Speed Range

in/min. (mm/min.)		 Continuous Model Number
Vert.
LBS		 Load
KG		 GEAR
RATIO		 120/50-60/1 240/50-60/1 42/50-60/1
Low
Speed		 1.5-30 (38-750) 50 22 50:1 BUG-5100-CBG BUG-5102-CBG BUG-5104-CBG
High
Speed		 8-160 (200-4000) 3 1.4
Low
Speed		 .7-15 (19-380) 75 34 100:1 BUG-5100-EBG BUG-5102-EBG BUG-5104-EBG
High
Speed		 4-80 (100-2000) 15 7
Low
Speed		 .5-10 (12-255) 100 45 150:1 BUG-5100-FBG BUG-5102-FBG BUG-5104-FBG
High
Speed		 2-50 (50-1250) 30 14
