What diameter is the CK Worldwide - Tungsten 1/16″ x 7″ 2% Thoriated (Pack of 3) - T1167GT2-3 available in, and how do I choose the right size?

The CK Worldwide - Tungsten 1/16″ x 7″ 2% Thoriated (Pack of 3) - T1167GT2-3 is available in 1/16 diameter. Rod diameter selection depends on the base metal thickness and the amperage being used: 1/16 in (1.6 mm) rods suit light gauge up to 3/16 in at 60–130A; 3/32 in (2.4 mm) rods cover 3/16 in–1/2 in material; 1/8 in (3.2 mm) rods are used for heavier sections at 130–250A+. As a general rule, rod diameter should be close to or slightly smaller than base metal thickness.

What shielding gas should I use with the CK Worldwide - Tungsten 1/16″ x 7″ 2% Thoriated (Pack of 3) - T1167GT2-3?

TIG welding shielding gas selection: use pure argon (99.995% purity) for most TIG applications including steel, stainless, aluminum, and titanium. Helium additions (25–75% He/Ar mix) increase heat input and travel speed for heavy section work and aluminum welding where higher deposition is needed. Never use CO2 or mixed gases designed for MIG welding in TIG torches.

What is the AWS classification of the CK Worldwide - Tungsten 1/16″ x 7″ 2% Thoriated (Pack of 3) - T1167GT2-3?

TIG filler rods carry an AWS classification (e.g., ER70S-2 for mild steel, ER308L for 304 stainless, ER4043 for aluminum) that specifies the chemical composition and mechanical properties of the deposited weld metal. Always verify the AWS class when writing or qualifying a Welding Procedure Specification (WPS) for code work.

CK Worldwide - Tungsten 1/16″ x 7″ 2% Thoriated (Pack of 3) - T1167GT2-3

Q: What is the CK Worldwide - Tungsten 1/16″ x 7″ 2% Thoriated (Pack of 3) - T1167GT2-3 used for?

TIG (GTAW) filler rods are used in the gas tungsten arc welding process, where the welder manually feeds the rod into the weld pool while maintaining the arc with the torch. TIG welding produces the highest quality, lowest spatter welds and is the process of choice for precision work on stainless, aluminum, titanium, and exotic alloys.

Q: How should I store the CK Worldwide - Tungsten 1/16″ x 7″ 2% Thoriated (Pack of 3) - T1167GT2-3 to maintain weld quality?

TIG filler rods are typically sold in 36 in lengths in 1 lb, 5 lb, 10 lb, and 25 lb tubes. Store rods in their original sealed tubes in a dry location. Stainless and nickel alloy rods are particularly moisture-sensitive — exposure to humidity can introduce hydrogen and cause porosity or cracking. Never leave opened rod tubes exposed to damp air.

SKU: T1167GT2-3

$22.00

Factory Direct

Free Shipping over $250

Lowest Price

Overview

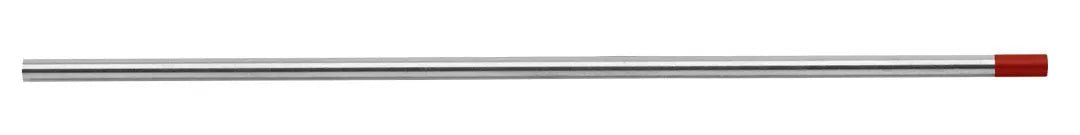

Designed for precision TIG welding applications, this CK Worldwide 1/16″ 2% thoriated tungsten electrode delivers reliable arc stability and consistent performance. The pre-ground tip ensures dependable arc starts right out of the box, saving time and improving arc control.

2% thoriated tungsten (red) is the long-standing industry standard for DC TIG welding. It provides excellent arc starts, holds a sharp point well, and offers a long service life under high current — making it ideal for demanding production environments.

Manufactured to CK Worldwide’s high quality standards, these 7″ electrodes provide dependable performance for both professional welders and precision fabrication environments. Sold in a convenient 3-pack.

Key Features:

Diameter: 1/16″
Length: 7″
Type: 2% Thoriated (Red)
Pre-ground finish for consistent arc starts
Excellent for DC TIG welding on carbon steel, stainless steel, copper, nickel alloys, and titanium
Convenient 3-pack

Reviews

Q&A

Product Overview

Key Features:

Diameter: 1/16″
Length: 7″
Type: 2% Thoriated (Red)
Pre-ground finish for consistent arc starts
Excellent for DC TIG welding on carbon steel, stainless steel, copper, nickel alloys, and titanium
Convenient 3-pack
