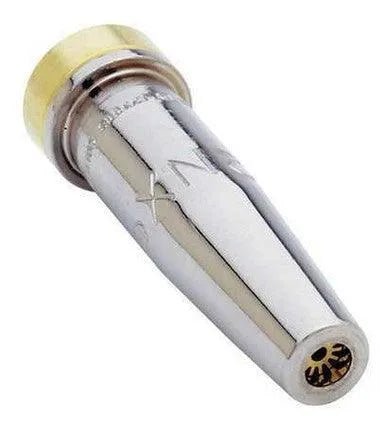

Harris Model 6290-000NX Hand Cutting Tip - 1501200

SKU: 1501200
$15.20
Factory Direct
Free Shipping over $250
Lowest Price
Harris - Model 6290-000NX general preheat two-piece hand cutting tip for use with propane and natural gas
Overview
Harris Model 6290-NX is a propane/natural gas tip with an electroless nickel-plated shell for use with Harris ' most popular hand/machine cutting torches and cutting attachments

Features
  • Two-piece hand cutting tip
  • Electroless nickel-plated outer shell construction and brass internal shell construction
  • General preheat
  • Cuts relatively clean steel
  • Ideal for Harris ' most popular hand torches, machine torches and cutting attachments
  • Cutting depth: light gauge 3/8 in.
  • For use with low cost alternate fuel gases - propane/natural gas NOT FOR USE WITH ACETYLENE
  • Typical applications include steel fabricating, demolition, shipbuilding, etc.
  • Marked with Harris logo and tip size for easy identification
  • One year warranty
Specifications
FeatureValue
Gas / GasService NaturalGas; Propane
Compatible Cutting Attachment Model Number 39-3F; 49-3F; 72-3; 73-3
Compatible Handle Model Number 18-5; 43-2; 85
Compatible Torch Harris - Model Number 42-4E; 42-4F; 980F; 62-5E; 62-5F; 62-5SSF; 980-F
Construction Two-piece - Electroless nickel-plated (outer shell) and Brass (inner shell)
Cutting Depth Light gauge to 3/8 in. (to 9.53mm)
Cutting Drill Size No. 68
Equal Pressure - Fuel Gas PSIG 5 - 15
Fuel Gas SCFH (Min. - Max.) 7.5
Injector Or Low Pressure - Fuel Gas PSIG 4 oz. - 2 lbs.
Oxygen PSIG (Min. - Max.) 10 - 30
Oxygen SCFH Total (Min. - Max.) 50 - 60
Preheat Type General
Style Hand cutting
Tip Size / Number 0
Typical Application Steel fabricating; Demolition; Shipbuilding
Includes
  • Harris - Model 6290-000NX general preheat two-piece hand cutting tip for use with propane/natural gas
