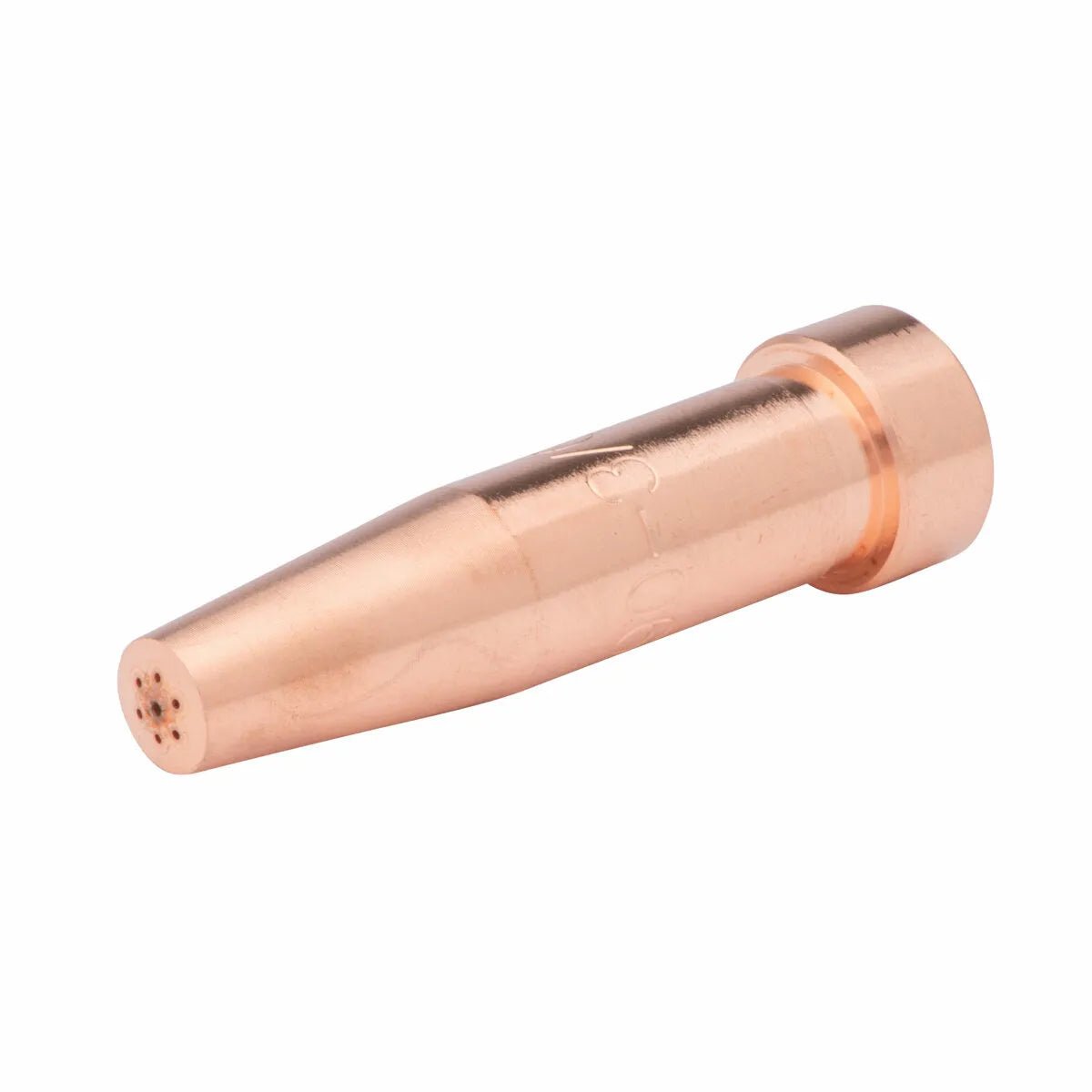

Harris Model 6290-000 Hand Cutting Tip - 1500810

SKU: 1500810
$17.91 $18.68
Factory Direct
Free Shipping over $250
Lowest Price
Harris - Model 6290-000 general preheat single-piece hand cutting tip for use with acetylene
Overview
Harris Model 6290 is a single-piece acetylene tip for hand cutting torches.

Features
  • Single-piece copper hand cutting tip
  • General preheat
  • For use with acetylene
  • Cuts relatively clean steel
  • Depth of cut - Light gauge to 3/16 in.
  • Typical applications include fabrication, maintenance, etc.
  • Marked with Harris logo and tip size for easy identification
  • One year warranty
Specifications
FeatureValue
Gas / GasService Acetylene
Compatible Cutting Attachment Model Number 72-3; 73-3
Compatible Handle Model Number 18-5; 85; 43-2
Compatible Torch Harris - Model Number 42-4E; 62-5E; 980-E; 98-6E
Construction One-piece - Copper
Cutting Depth Light gauge to 3⁄16 in. (4.8mm)
Cutting Drill Size No. 68
Fuel Gas PSIG (Min. - Max.) 5 - 15
Fuel Gas SCFH (Min. - Max.) 10 - 15
Oxygen PSIG (Min. - Max.) 15 - 20
Oxygen SCFH Total (Min. - Max.) 35 - 40
Preheat Type General
Style Hand cutting
Tip Size / Number 0
Typical Application Fabrication; Maintenance
Includes
  • Harris - Model 6290-000 Hand Cutting Tip
