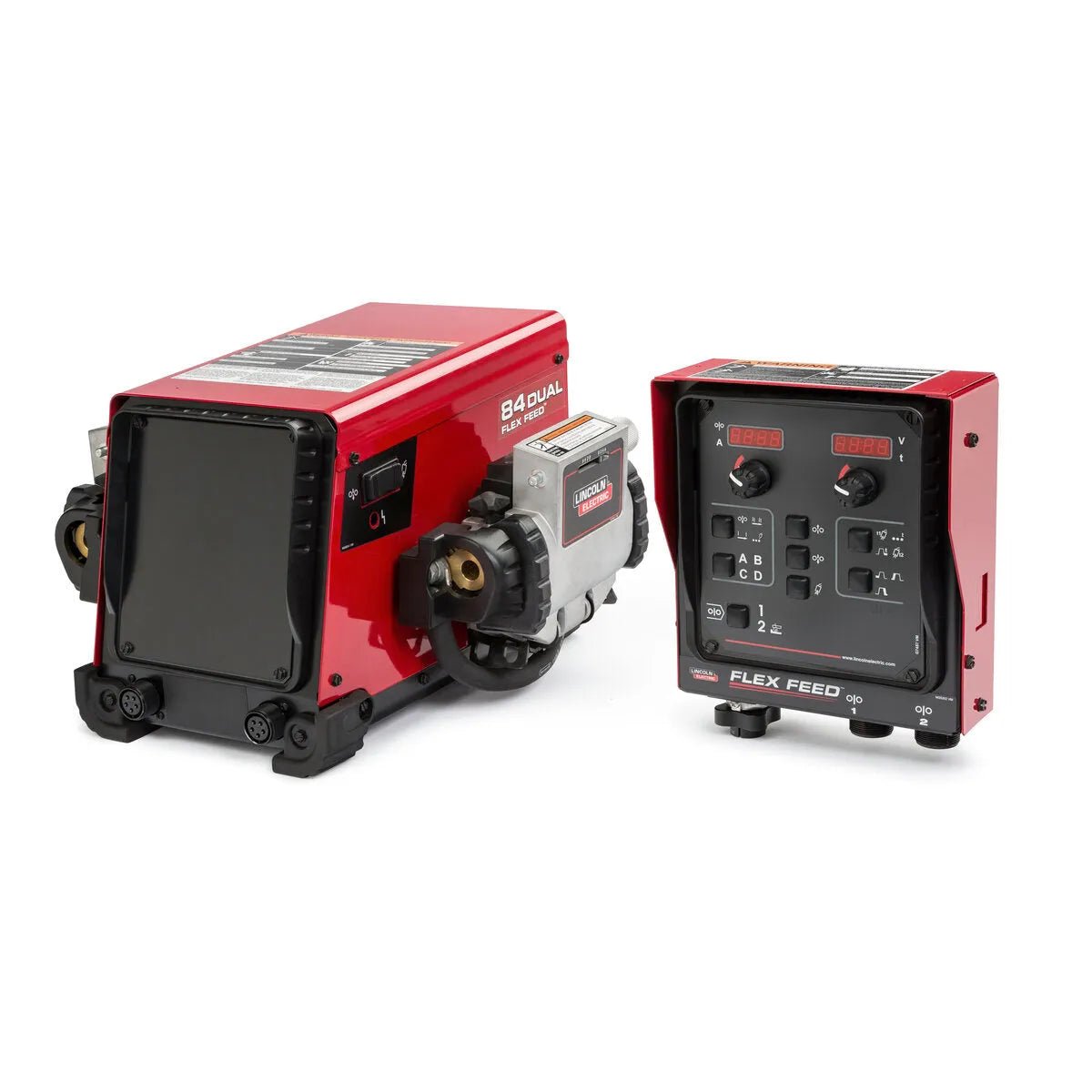

Lincoln Flex Feed 84 Dual Boom Feeder One-Pak K5002-11
Rugged and reliable engineering
Consistent feeding over long conduit runs
Handles large-diameter wires (up to 3/32 in. (2.4 mm) solid or .120 in. (3.2 mm) cored wire), well beyond the competition’s 5/64-in. capacity
Gun adapters provide superior electrical connections reducing voltage drops and simplifying connections
Wire drive circuit board is encapsulated for maximum protection from the elements
Superior process control
Digital preset for voltage and wire feed speed
Save repeated procedures in up to four user memories
Process limits can be set and passcode secured
Displays actual voltage and current while welding
Safety with every process
Single wire drive model feeders can be ordered with an electrically isolated stud for arc gouging operations
Dual wire drive model can be ordered with a Power Path contactor that electrically isolates the non-active wire drive and gun
User selectable wire retract function physically retracts the wire back into the nozzle to prevent operator injury
Advanced MaxTrac WIRE DRIVE DESIGN
Rugged cast aluminum feed plate protects wire and ensures consistent wire feeding
Patented tool-less drive rolls make adjustments and maintenance quick and easy
Patented tool-less split wire guides ensure uninterrupted feed and prevents birdnesting
Modular design provides flexibility of configurations
Configure for single, dual, bench or boom setups (convert as workspace needs change)
Two available wire reel stands; standard (up to 44-lb spools) or heavy duty (up to 60-lb coils or spools)
Built-in interface for hard automation
Features
- Dual head boom configuration
- Four Memory locations per side for saving and quick recall of weld schedules.
- Advanced MaxTrac 4-roll wire drive design
- Modular design provides flexibility of configurations
- Displays preset voltage at the feeder
- Record actual arc on time
- Timers for run-in, start, crater, preflow, postflow and burnback
