Harris 1001204 42-4E 17 in. 90◦ Head Angle Hand Cutting Torch

SKU: 1001204
$179.88 $248.75
Factory Direct
Free Shipping over $250
Lowest Price
Harris - Model 42-4E medium duty hand cutting torch for use with all fuel gases
Victor Cross Reference Model & Part #: SST 1000FC, 17" 90° - 0381-1640
Certification: UL® listed

Overview

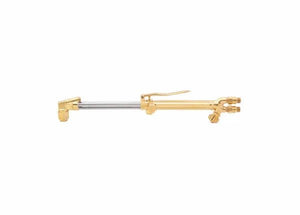

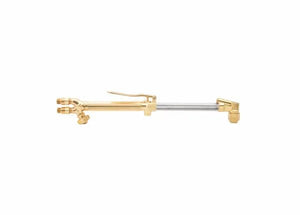

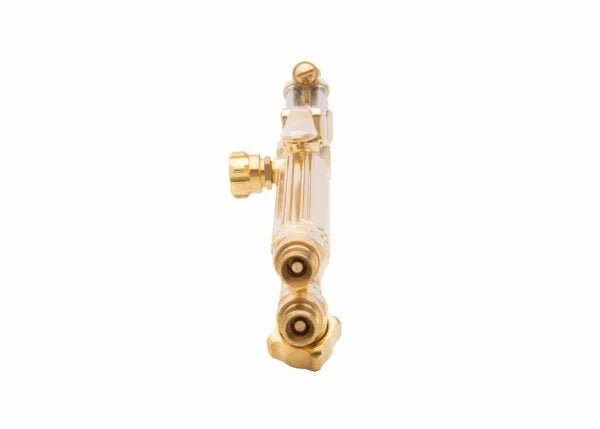

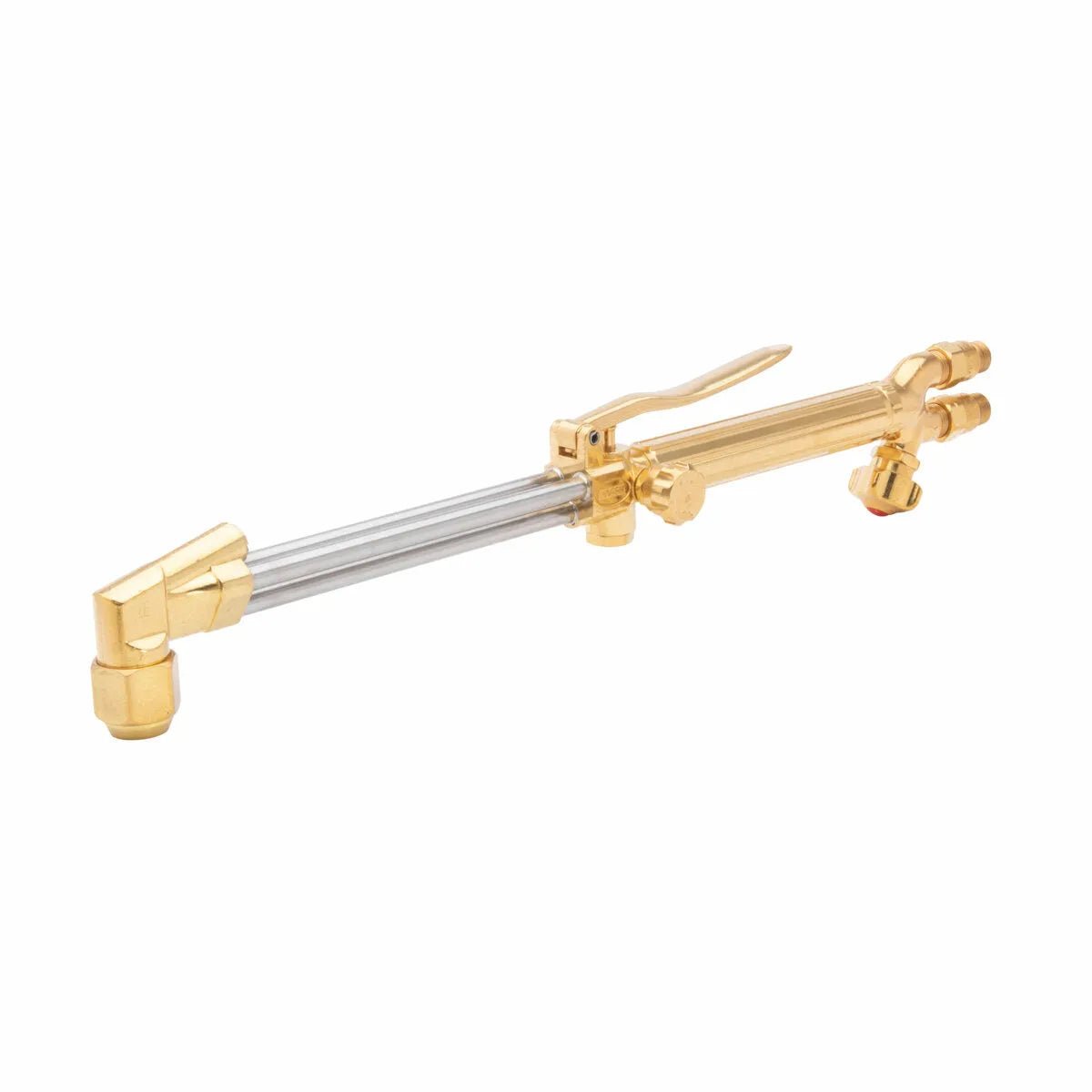

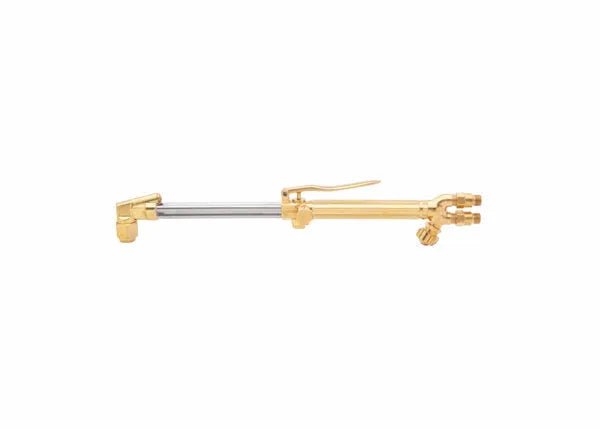

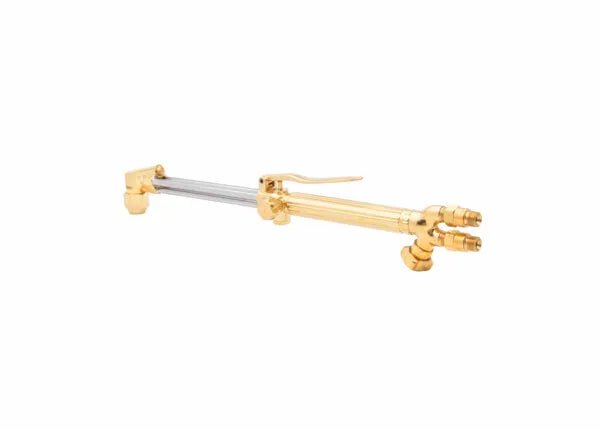

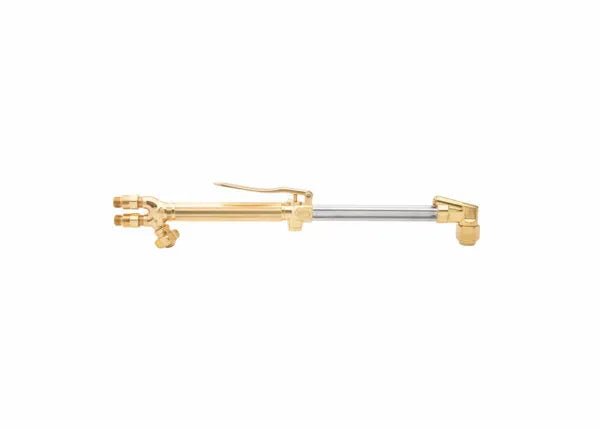

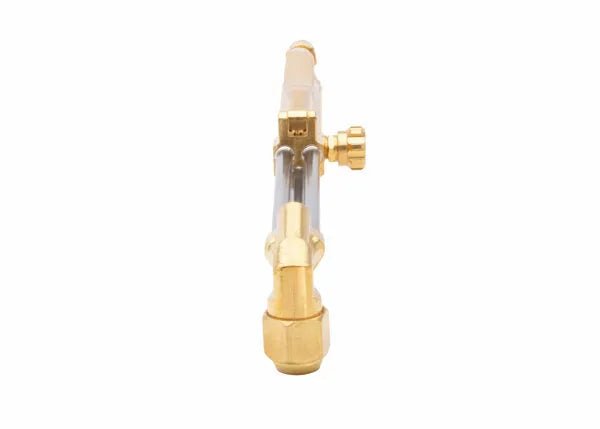

Harris Model 42-4E 17 in. 90◦ Head Angle Hand Cutting Torch - 1001204

Harris Model 42-4E is a medium duty 17 in. straight cutting torch designed for use with all fuel gases. Harris Model 42-4E is lightweight and features a solid forged brass head, triangular tube design with brazed connections and a solid forged brass cutting lever providing strength, safety and a longer service life. It includes easily replaceable FlashGuard check valves that prevent the reverse flow of gases for added safety. It is UL listed. Torch has a cutting capacity 6 in. (152.4mm) plate.

Features
  • Medium duty UL listed straight hand cutting torch for use with all fuel gases
  • E-Equal or positive pressure mixing system
  • Brazed triangular tube design and brazed connections provide strength and durability
  • Solid forged brass head resists abuse and distortion for reliable performance and longer service life
  • Flip-up forged brass cutting lever for convenience and ease of operation
  • Ease-on cutting valve for safety, smoother starts and more precise cutting control
  • Equipped with replaceable FlashGuard check valves
  • Cuts up to 6 in. (152.4mm) plate
  • Torch length is 17 in. (431.8mm)
  • Torch head angle is 90◦
Specifications
FeatureValue
Gas / GasService Acetylene; Hydrogen; NaturalGas; Methane; Propane; Propylene
Compatible Cutting Tip Model Number - Acetylene-H2 (Size) 6290; 6290-AC; 6290-S
Compatible Cutting Tip Harris - Model Number - Alternate Fuel (Size) 6290-NX; 6290-NXP; 6290-NFF
Construction Brass and stainless steel
Cutting Capacity Up to 6 in. (152.4mm) plate
Cutting Valve Type Lever
Duty Medium
Equipped With FlashGuard® check valves
Head Angle 90°
Mixer Type E-Equal or positive pressure
Style Straight hand-cutting
Torch Length 17 in. (431.8mm)
Typical Application Fabrication; Maintenance
Includes
  • Harris - Model 42-4E Hand Cutting Torch
