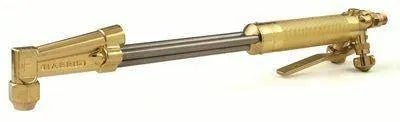

Harris Model 62-5FL 21 in. 90◦ Head Angle Hand Cutting Torch - 1003470
The Harris special F-injector or low pressure mixer can produce the hottest flame possible at the lowest gas pressures (4oz - 2 lbs.) making it the safest, most efficient design in the industry. Harris Model 62-5F features a solid forged brass head, triangular tube design with brazed connections and a solid forged brass cutting lever providing strength, safety and a longer service life. It includes easily replaceable FlashGuard check valves that prevent the reverse flow of gases for added safety. It is UL listed. Torch has a cutting capacity 12 in. (304.8mm) plate. Alternate fuels include propylene or propane-based fuels and natural gas. NOT FOR USE WITH ACETYLENE.
Features
- Heavy duty UL listed straight hand cutting torch for use with alternate fuels
- F-Injector or low pressure mixing system
- Brazed triangular tube design and brazed connections provide strength and durability
- Solid forged brass head resists abuse and distortion for reliable performance and longer service life
- Flip-up forged brass cutting lever for convenience and ease of operation
- Ease-on cutting valve for safety, smoother starts and more precise cutting control
- Equipped with replaceable FlashGuard check valves
- Cuts up to 12 in. (304.8mm) plate
- Torch length is 21 in. (533.4mm)
- Torch head angle is 90◦
Specifications
Equipment
| Certification | UL listed |
| Compatible Cutting Tip Model Number - Alternate Fuel (Size) | 6290-NX 6290-NXP 6290-NFF Alternate Fuel Specialty Tips |
| Construction | Brass and stainless steel |
| Cutting Capacity | Up to 12 in. (304.8mm) plate |
| Cutting Valve Type | Lever |
| Duty | Heavy |
| Equipped With | FlashGuard® check valves |
| Gas / Gas Service | Natural Gas Methane Propane Propylene |
| Head Angle | 90° |
| Mixer Type | F-Injector or low pressure |
| Recommended Items/Accessories | Flashback Arrestor Torch Type - Model 88-5-FBT R&L - PN 4302202 |
| Special Instructions | Not for use with acetylene |
| Style | Straight hand cutting |
| Torch Length | 21 in. (533.4mm) |
| Typical Application | Fabrication Maintenance Shipbuilding |
