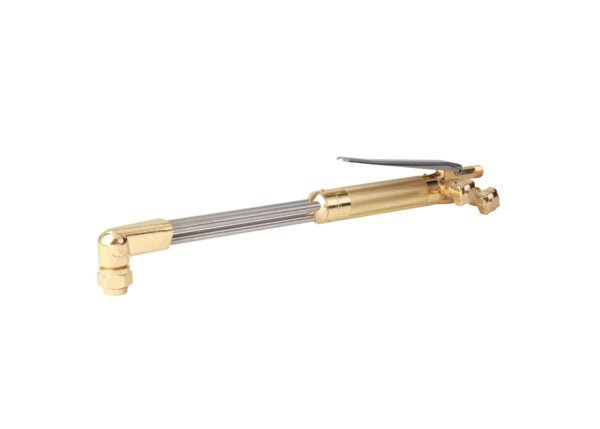

Model V242-2AHV 18" 70° Head Angle V-Series Hand Cutting Torch - 1004639
Model V242-2 is a medium duty 18" straight cutting torch designed for use with all fuel gases. The V242-2 features Stainless Steel cutting lever, ease-on cutting valve and triangular tube design.
Features
- Medium duty UL listed straight hand cutting torch for use with all fuel gases
- "E" equal or positive pressure mixing system
- Brazed triangular tube design and brazed connections provide strength and durability
- Solid forged brass head resists abuse and distortion for reliable performance and longer service life
- Stainless Steel cutting lever for convenience and ease of operation
- Ease-on cutting valve for safety, smoother starts and more precise cutting control
- Equipped with replaceable FlashGuard check valves
- Cuts up to 6" (152.4mm) plate
- Torch length is 18" (457.2mm)
- Torch head angle is 70◦
| Certification | UL listed |
| Compatible Cutting Tip Model Number - Acetylene-h3 (Size) | V-101-1; V101-AC |
| Compatible Cutting Tip Model Number - Alternate Fuel (Size) | 1-GPN; 1-GPP |
| Cutting Capacity | Cuts up to 6" (152.4mm) plate |
| Duty | Medium |
| Equipped With | FlashGuard check valves |
| Gas / Gas Service | All Fuel Gases |
| Head Angle | 70◦ |
| Mixer Type | “E” equal or positive pressure |
| Recommended Items/Accessories | Flashback Arrestor Torch Type - Model 88-5-FBT R&L - PN 4302202 |
| Style | V-Series straight hand cutting |
| Torch Length | 18" (457.2mm) |
Warranty
| Warranty | 1 Year |
