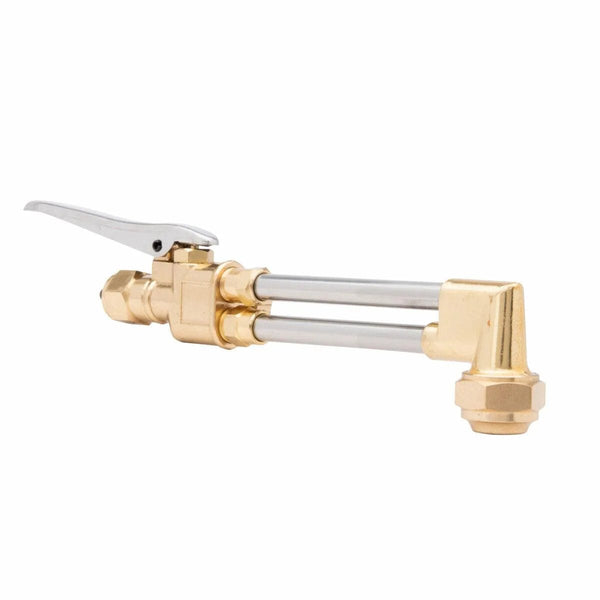

Harris 1300048 VH13 All Fuel Gases V-Series Cutting Attachment
Harris Model Vh33 is a medium duty cutting attachment. It is equipped with a durable Stainless Steel lever, an in-tube mixer and threaded connections for easy repair. Cuts up to 4 in. (101.6mm) plate.
Features
- Medium duty cutting attachment for use with all fuel gases
- E-Equal or positive pressure mixing system resists damage due to flashback
- Stainless Steel tube design with threaded connections for easy repair
- Torch union nut protects seats and O-rings from abuse and damage
- Fold-forward durable Stainless Steel cutting lever for convenience and ease of operation
- Ease-on cutting valve for safety, smoother starts and more precise cutting control
- Solid forged brass head resists abuse and distortion for reliable performance and longer service life
- Cuts up to 4 in. (101.6mm)
- Length is 8 in. (203.2mm)
- Head angle is 90 degrees
| Compatible Cutting Tip Model Number - Acetylene-h3 (Size) | V3-101 |
| Compatible Cutting Tip Model Number - Alternate Fuel (Size) | 3-GPN 3-GPP |
| Compatible Handle Model Number | Vh30 |
| Construction | Brass and Stainless Steel |
| Cutting Capacity | Up to 4 in. (101.6mm) plate |
| Duty | Medium |
| Gas / Gas Service | Natural Gas Methane Propane Propylene |
| Head Angle | 90° |
| Mixer Type | E-Equal or positive pressure |
| Torch Length | 8 in. (203.2mm) |
| Typical Application | Construction Maintenance Agriculture |
Warranty
| Warranty | 1 Year |
