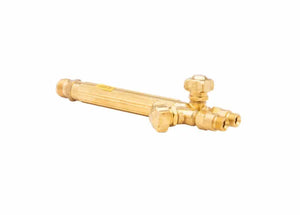

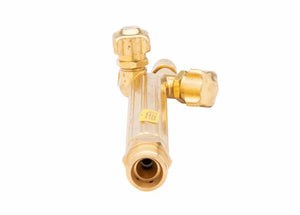

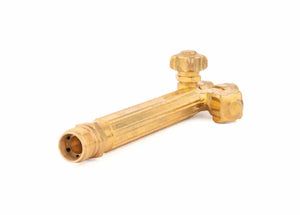

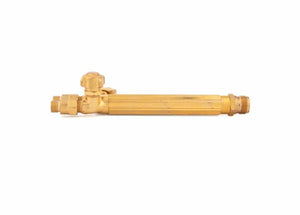

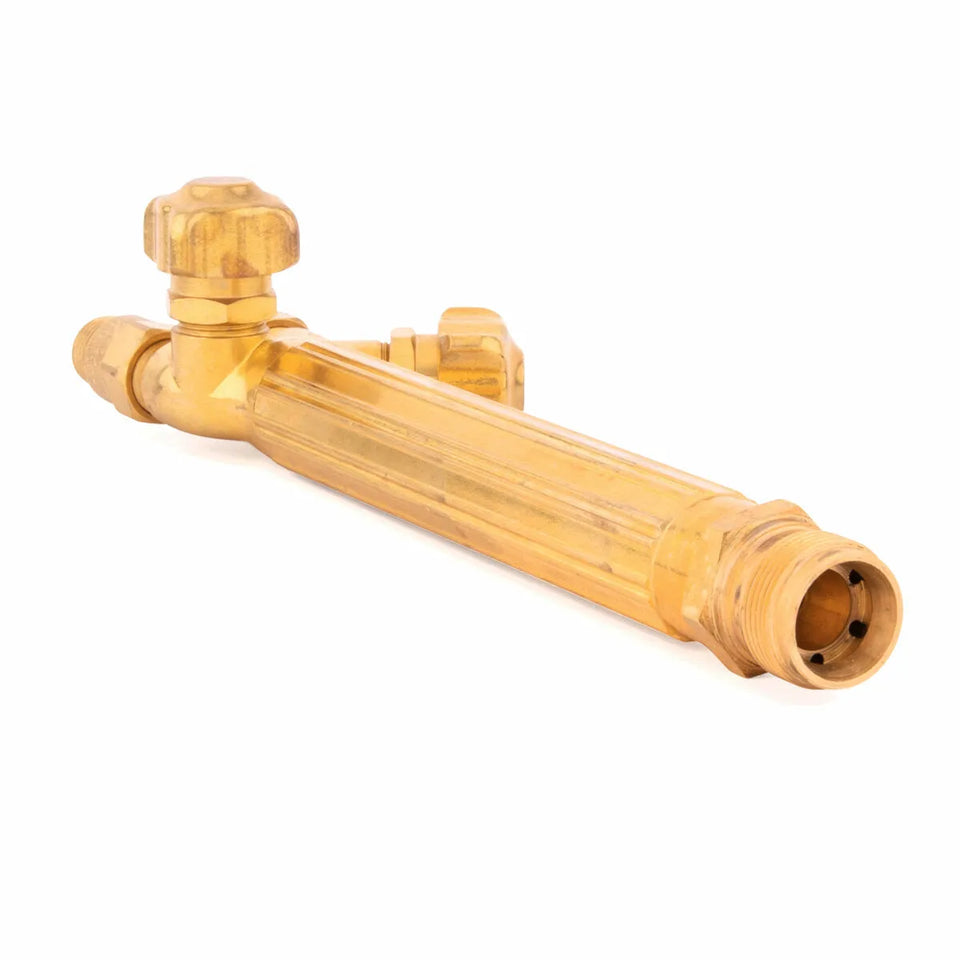

Harris 1400315 V-315C V-Series Combination Torch Handle with Check Valves
Harris Model V-315C V-Series is a heavy duty combination torch handle for welding, brazing, cutting and heating. It can be used with all fuel gases. Harris Model V-315C features tube-within-a-tube construction. This Harris Model is equipped with easy-to-replace FlashGuard check valves. Harris Model V-315C is UL listed. Cuts up to 5 in. (127.0mm) plate and Welds up to 1 in. (25.4mm) plate.
Features
- Heavy duty combination torch handle for use with all fuel gases
- Silver-brazed twin inner tube construction for strength, safety and durability while still being lightweight
- Tube-within-a-tube construction for optimum flow performance while providing maximum leak integrity
- Harris mixer Harris Model V-W-1 allows use of Harris tips
- Equipped with high-volume, long-lasting ball valves
- Marked with Harris logo and tip size for easy identification
- Handle is 9 1/2 in. (241.3mm) in length
- UL listed
- Equipped with FlashGuard replaceable check valves
- Cuts up to 5 in. (127.0mm) plate and Welds up to 1 in. (25.4mm) plate.
| Certification | UL listed |
| Compatible Cutting Attachment Model Number | V-2460 - alternate fuel gases only |
| Compatible Cutting Tip Model Number - Acetylene-h3 (Size) | V1-101, V1-101AC |
| Compatible Cutting Tip Model Number - Alternate Fuel (Size) | 1-GPN and 1-GPP - Alternate fuels only |
| Compatible Heating Tip Model Number - Acetylene-h3 (Size) | J-63 (1 , 2), 1390-HA, J-63-(3 , 4) J-43 (5) |
| Compatible Heating Tip Model Number - Alternate Fuel (Size) | 1390 (B, H), 1390(3H), 2290-H, HPM(1-3) and (1-5), RBP (2, 4, 6) |
| Compatible Mixer Model Number | V-W, V-W-2, V-W-3 |
| Compatible Tip Tube Model Number | 8593, T-43, 2393 |
| Compatible Welding/Brazing Tip Style - Acetylene-h3 (Size) | 23A90 (0-10), 1390 (0-10), 23A90 (13, 15), 1390 (13) |
| Compatible Welding/Brazing Tip Style - Alternate Fuel (Size) | 1390-N (2-10) 1390-N (13, 15, 20, 30, 80) |
| Construction | Tube-within-a-tube |
| Cutting Capacity | Up to 5 in. (127.0mm) plate |
| Duty | Heavy |
| Equipped With | FlashGuard check valves |
| Gas / Gas Service | Acetylene Hydrogen Natural Gas Methane Propane Propylene |
| Torch Length | 9-1/2 in. (241.3mm) |
| Typical Application | Welding Brazing Cutting Heating |
| Welding Capacity | Up to 1 in. (25.4mm) plate |
