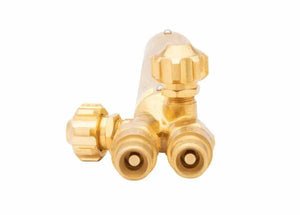

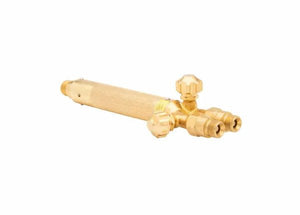

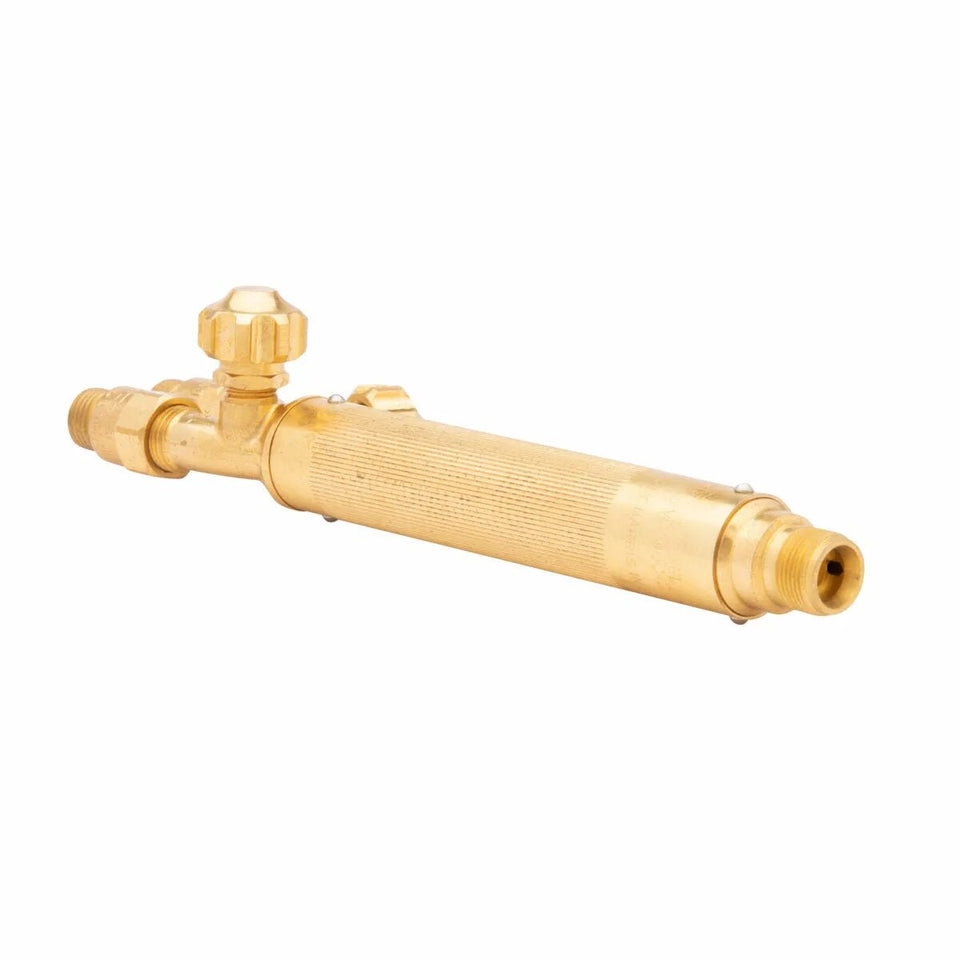

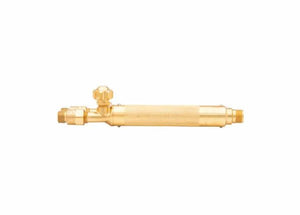

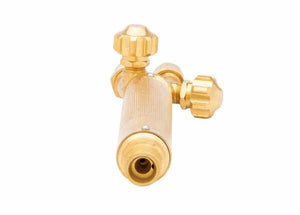

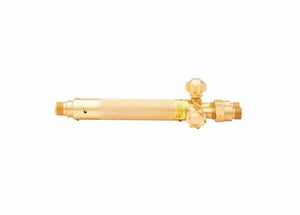

Harris 1400402 V-100C-2 V-Series Combination Torch Handle with Check Valves
Harris Model V-100C V-Series is a medium duty combination torch handle for welding, brazing, cutting and heating. It can be used with acetylene or any of the alternate fuel gases. Harris Model V-100C features silver-brazed twin-tube construction. Use Harris Harris Model V-W-1 mixer to properly fit Harris welding, brazing, cutting and heating tips. This Harris Model is equipped with easy-to-replace FlashGuard check valves. Cuts up to 5 in. (127.0mm) plate and welds up to 1/2 in. (12.7mm) plate.
Features
- Medium duty combination torch handle for use with all fuel gases
- Silver-brazed twin inner tube construction for strength, safety and durability while still being lightweight
- Tube-within-a-tube construction for optimum flow performance while providing maximum leak integrity
- Harris mixer Harris Model V-W-1 allows use of Harris tips
- Can be adapted to alternate fuels with the proper accessories
- Marked with Harris logo and tip size for easy identification
- Handle is 8 1/2 in. (215.9mm) in length
- Equipped with FlashGuard replaceable check valves
- Cuts up to 5 in. (127.0mm) plate and welds up to 1/2 in. (12.7mm) plate.
| Compatible Cutting Attachment Model Number | V-1350 |
| Compatible Cutting Tip Model Number - Acetylene-h3 (Size) | V3-101 |
| Compatible Cutting Tip Model Number - Alternate Fuel (Size) | 3-GPN 3-GPP |
| Compatible Heating Tip Model Number - Acetylene-h3 (Size) | J-63 (1, 2) 1390-HA |
| Compatible Heating Tip Model Number - Alternate Fuel (Size) | 1390 (B&H) |
| Compatible Mixer Model Number | V-W-1 |
| Compatible Tip Tube Model Number | 8593 |
| Compatible Welding/Brazing Tip Style - Acetylene-h3 (Size) | 23A90 (0-10) 1390 (0-10) |
| Compatible Welding/Brazing Tip Style - Alternate Fuel (Size) | 1390-N (4-10) |
| Construction | Twin-tube |
| Cutting Capacity | Up to 5 in. (127.0mm) plate |
| Duty | Medium |
| Equipped With | FlashGuard check valves |
| Gas / Gas Service | Acetylene Hydrogen Natural Gas Methane Propane Propylene |
| Torch Length | 8-1⁄2 in. (215.9mm) |
| Typical Application | Welding Brazing Cutting Heating |
| Welding Capacity | Up to 1⁄2 in. (12.7mm) plate |
