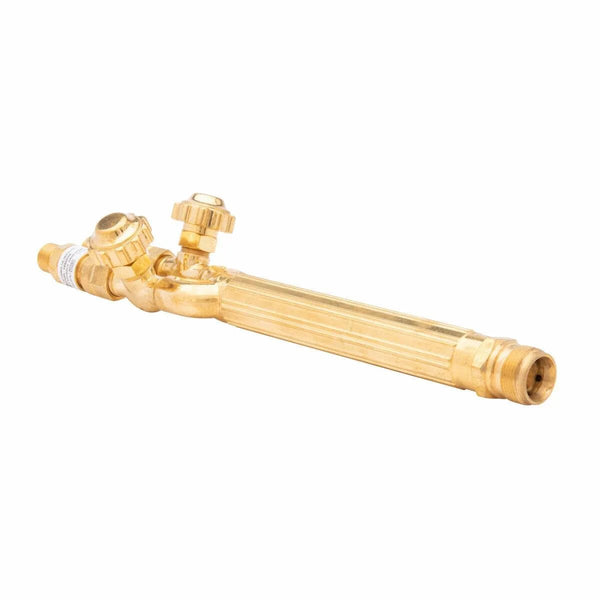

Harris 1400422 VH31 V-Series Heavy Duty Combination Torch Handle
Harris Model VH31 V-Series is a heavy duty combination torch handle for welding, brazing, cutting and heating. It is designed to provide the highest flow possible allowing the use of larger tips with all fuel gases. The handle features tube-within-a-tube construction. The O-ring sealed for greater strength and higher capacity. Cuts up to 8 in. (203.2mm) plate and Welds up to 1/2 in. (12.7mm) plate.
Features
- Heavy duty combination torch handle for use with all fuel gases
- Silver-brazed twin inner tube construction for strength, safety and durability while still being lightweight
- Tube-within-a-tube construction for optimum flow performance while providing maximum leak integrity
- O-ring sealed for greater strength and higher capacity
- Features B-hose fittings (9/16 in.-18)
- Marked with Harris logo and tip size for easy identification
- Handle is 11 in. (279.4mm) in length
- Equipped with Harris Model 88-5N FBTL&R flashback arrestors installed
- Cuts up to 8 in. (203.2mm) plate; Welds up to 1/2 in. (12.7mm) plate
| Compatible Cutting Attachment Model Number | Vh34 |
| Compatible Cutting Tip Model Number - Alternate Fuel (Size) | V-101 V-101AC |
| Compatible Heating Tip Model Number - Acetylene-h3 (Size) | J-63 (1-3) |
| Compatible Heating Tip Model Number - Alternate Fuel (Size) | 1390 (H 3H B) |
| Compatible Mixer Model Number | V-W |
| Compatible Tip Tube Model Number | 8593 |
| Compatible Welding/Brazing Tip Style - Acetylene-h3 (Size) | 23A90-3 (0-10) |
| Compatible Welding/Brazing Tip Style - Alternate Fuel (Size) | 1390-N (2-80N) |
| Construction | Tube-within-a-tube |
| Cutting Capacity | Up to 8 in. (203.2mm) plate |
| Duty | Heavy |
| Equipped With | FlashGuard Flashback Arrestors Torch Type |
| Gas / Gas Service | Acetylene Hydrogen Natural Gas Methane Propane Propylene |
| Inlet Connection | (B) 9/16 in. - 18 |
| Recommended Items/Accessories | FlashGuard Flashback Arrestors Torch Type - Model 88-5-FBT R&L - PN 4302202 FlashGuard Check Valve Torch Type - Model 88-6CVT (R&L) - PN 4300390 |
| Torch Length | 11 in. (279.4mm) |
| Typical Application | Welding Brazing Cutting Heating |
| Welding Capacity | Up to 1⁄2 in. (12.7mm) plate |
