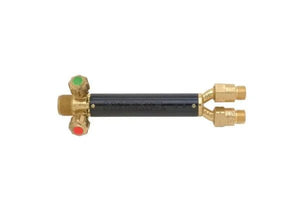

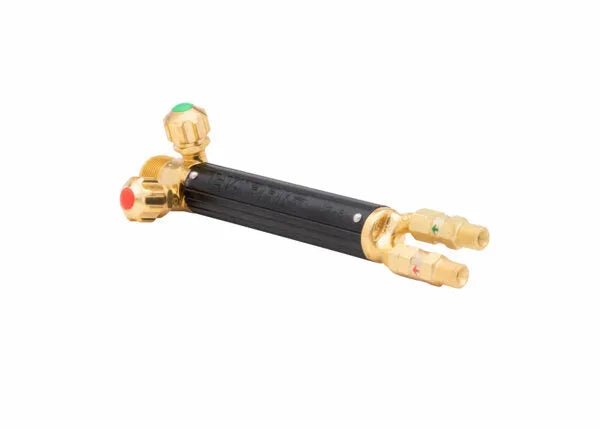

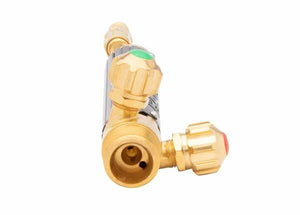

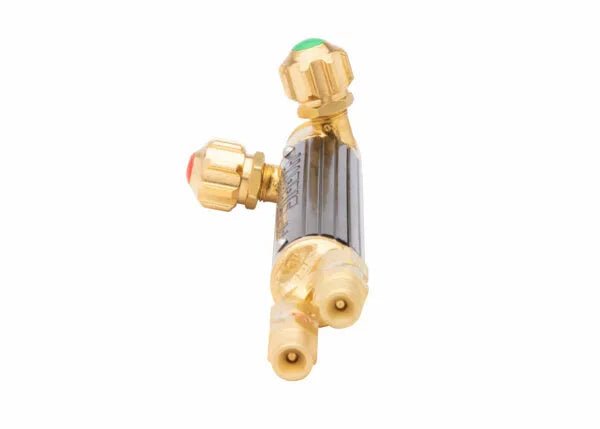

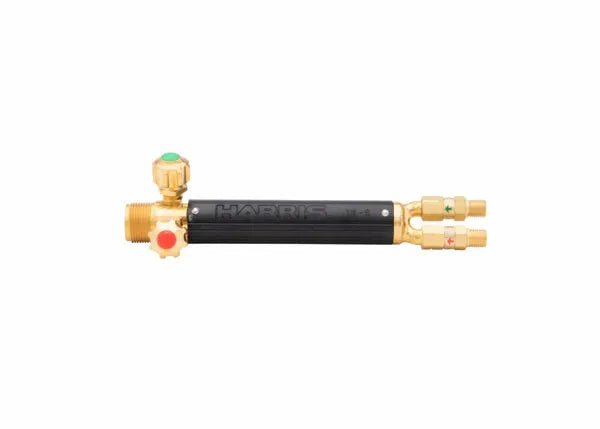

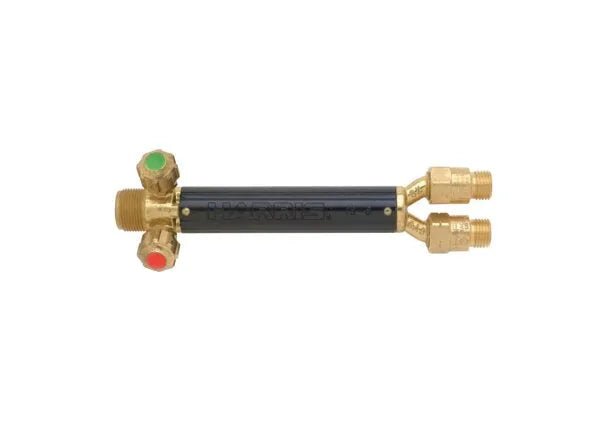

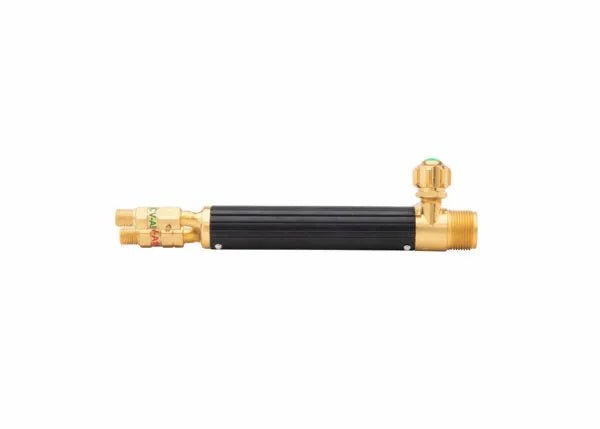

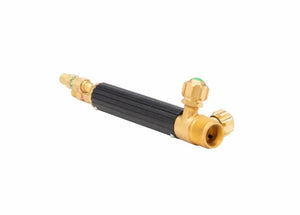

Harris 1401143 19-6A Combination Torch Handle with Front Valves and Check Valves
Model 19-6A is a medium duty combination torch handle for welding, brazing, cutting and heating. It can be used with oxy-acetylene or any of the alternate fuel gases. This model features silver brazed, twin-tube construction, front valves for easier adjustment while welding and brazing and "A" (3/8"-24) hose fittings. This model is equipped with easy-to-replace FlashGuard check valves. Model 19-6A is UL listed. Cuts up to 2" (50.6mm) plate and Welds up to 5/16" (7.9mm) plate.
Features
- Medium duty combination torch handle with front valves for use with all fuel gases
- Silver-brazed twin inner tube construction for strength, safety and durability while still being lightweight
- Tube-within-a-tube construction for optimum flow performance while providing maximum leak integrity
- Front valves for easier adjustments during operation
- Features "A" (3/8"-24) hose fittings
- Embossed with model number for ease in selecting compatible parts
- Handle is 7 1/2" (190.53mm) in length
- UL listed
- Equipped with FlashGuard replaceable check valves
- Cuts up to 2" (50.6mm) plate and Welds up to 5/16" (7.9mm) plate.
| Certification | UL listed |
| Compatible Cutting Attachment Model Number | 36-2; 36-2N (*For alternate fuels only) |
| Compatible Cutting Tip Model Number - Acetylene-h3 (Size) | 3690, 3690AC |
| Compatible Cutting Tip Model Number - Alternate Fuel (Size) | 3690-P |
| Compatible Heating Tip Model Number - Acetylene-h3 (Size) | J-16 (1&2) 1390 (HA) 8490-6-65 J-63 (1 & 2) |
| Compatible Heating Tip Model Number - Alternate Fuel (Size) | 1390 (B&H) 8490-6-65 |
| Compatible Mixer Model Number | H-16-E H-16-2E H-16-S |
| Compatible Tip Tube Model Number | D-50-C D-50-CXL TH-50-2 TH-50-2XL 8593 |
| Compatible Welding/Brazing Tip Style - Acetylene-h3 (Size) | 5090 (0-10) 1390 (0-10) 8490 (2, 4, 6, 8) 23A90 (0-10) |
| Compatible Welding/Brazing Tip Style - Alternate Fuel (Size) | 1390-N (4-10) 8490-N (4-8) 1390-N (2-10) |
| Construction | Twin-Tube |
| Cutting Capacity | Cuts up to 2"(50.8mm) plate |
| Duty | Medium |
| Equipped With | FlashGuard check valves |
| Gas / Gas Service | All Fuel Gases |
| Torch Length | 7 1/2"/190.5mm |
| Welding Capacity | Welds to 5/16"/7.9mm |
