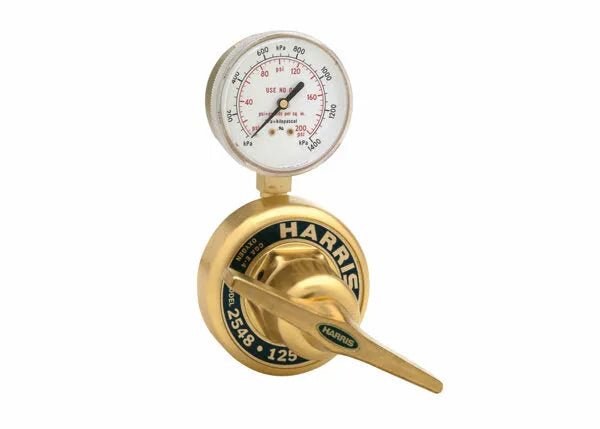

Harris 2548-125-1/4" Pipeline Single Stage Oxygen Regulator - 4000707
Model 2548 is designed for special gas applications requiring stainless steel diaphragms at inlet pressures up to 3000 PSIG. This heavy-duty, high flow, pipeline oxygen regulator has side entry access and a 1/4" NPT inlet connection. It features a forged brass body and bonnet, a one-piece encapsulated seat design with internal filter and Teflon® seat, as well as an internal high pressure relief valve.
Features
- Single-stage high flow stainless steel diaphragm pipeline regulator
- Designed for special gas applications with inlet pressures up to 3000 psig
- Easy-to-operate brass "T" screw bar adjusting handle
- Forged brass body and bonnet for longer service life
- Large 2.75" stainless steel diaphragm for corrosion resistance and low leakage rate yielding higher gas purity
- 2.5" Brass dual scale (psi/kPA) durable, easy-to-read gauge
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
- Maximum inlet pressure is 3000 psig
- Conforms to CGA E-4 standard
- Equipped with a tamper proof, self-reseating internal high pressure safety relief valve
