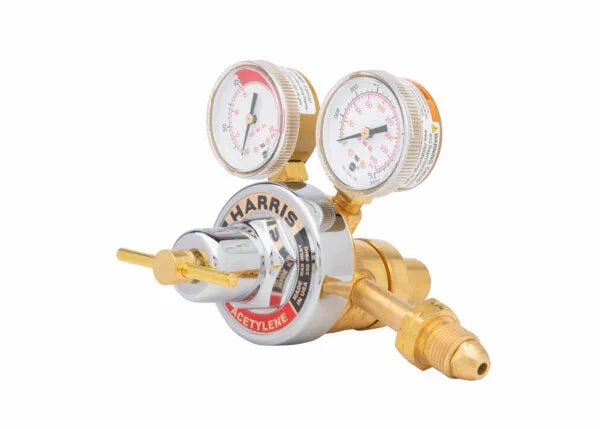

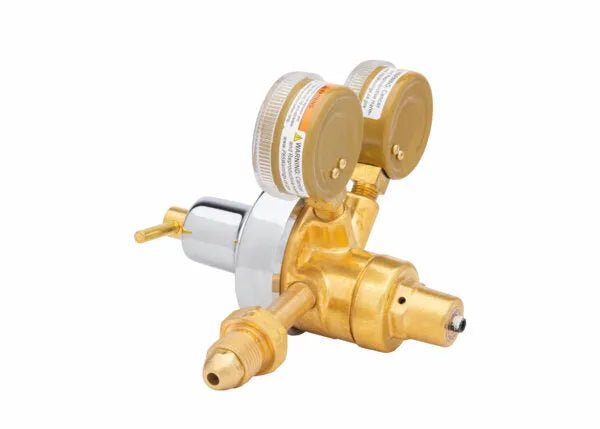

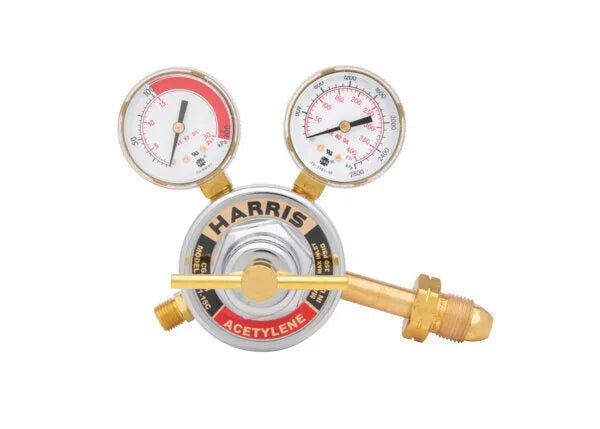

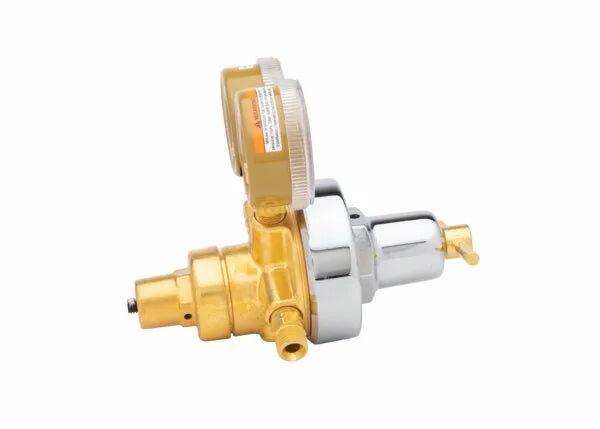

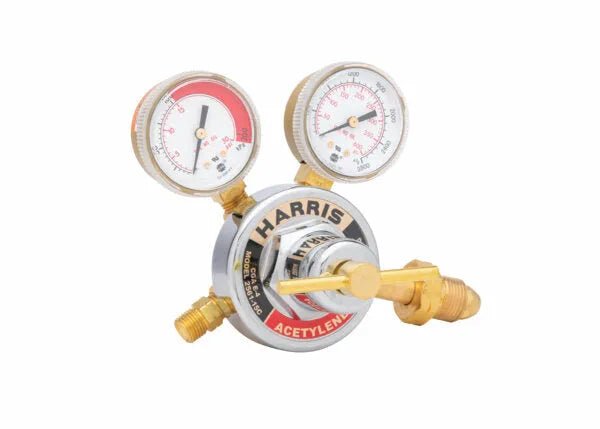

Harris 2561-15C-510 Two Stage Acetylene Regulator - 3300909
Model 2561 is an economical two-stage acetylene regulator for welding and similar applications where neoprene diaphragms are acceptable. It is used when constant delivery pressure is required over a wide range of inlet pressures. This model features a one-piece encapsulated seat design with internal filter and PTFE Teflon® seat.
Features
- Economical, two-stage regulator for welding applications where neoprene diaphragms are acceptable
- Designed for constant delivery pressure over a wide range of inlet pressures
- Brass body and chrome-plated zinc bonnet for longer service life
- Easy-to-operate brass "T" screw adjusting handle
- 2" Painted steel dual scale easy-to-read gauges
- Neoprene diaphragm for more sensitive pressure control
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
- Conforms to CGA E-4 standard
- Equipped with a tamper proof, self-reseating internal high pressure safety relief valve
- Equipped with a tamper proof, self-reseating internal high pressure safety relief valve
Specifications
Equipment
| Adjusting Screw | Brass “T” screw |
| Body | Brass |
| Bonnet | Chrome-plated zinc |
| Certification | CGA E-4 |
| Cv | 0.15 |
| Delivery Pressure Gauge (PSIG) | 30RZ |
| Delivery Pressure Range (PSIG) | 0 - 15 |
| Diaphragm | Neoprene |
| Duty | Medium to heavy |
| Equipped With | Tamper proof, self-reseating, internal high-pressure safety valve |
| Gas / Gas Service | Acetylene |
| Gauges | 2" Gold painted steel dual scale (psi/kPa) |
| Inlet Connection | CGA 510 |
| Maximum Inlet Pressure (PSIG) | 500 |
| Outlet Connection | 9/16" - 18 LH |
| Pressure Regulation PSIG/100 PSIG | 0.04 |
| Seat | PTFE Teflon® |
| Supply Pressure Gauge (PSIG) | 400 |
Warranty
| Warranty | 7 Years |
